1300mm Ab 2 Layers Film Blowing Machine with Horizontal Oscillating Unit

Xiongqiu Plastic Machinery Co., Ltd.
  • Type：Multi-Layer Co-extrusion Film Blowing Machine
  • Raw Material：LDPE
  • Maximum Folding Width of Film：1200mm
  • Screw Diameter：55mm*2
  • Automation：Non-Automatic
  • Computerized：Non-Computerized

Base Info

  • Model NO.：FM2-1300
  • Machine Weight：8T
  • Certification：CE, ISO9001:2008
  • Voltage：380V 50Hz 3phase
  • Transport Package：Plastic Film for Container Shipment
  • Trademark：Xiongqiu Plastic Machinery Co., Ltd.
  • Origin：Foshan, Guangdong Province
  • HS Code：8477800000

Description

LDPE / LLDPE / HDPEthickness0.02--0.20mmfilm width1100mm1400mm1600mm2000mmmax output80kgs/hr105kgs/hr150kgs/hr215kgs/hr Extruder30:1temp. controller15 zone15 zone16 zone16 zonebarrel cooling120w*4120w*4120w*6250w*6driving motor11kw*318.5kw*322kw*330kw*3 Die headSpiral mandrel die chrome plated surface 40Crcooling fan2.2kw3kw4kw5.5kw Take up  part±360°corrective systemauto corrective oriented systemauto-loader device, film surface treater, air compressor,, fast change net, auto rewinder, double wind air ring, IBC inner cooling die head PICTURES FOR REFERENCE:1300mm Ab 2 Layers Film Blowing Machine with Horizontal Oscillating Unit

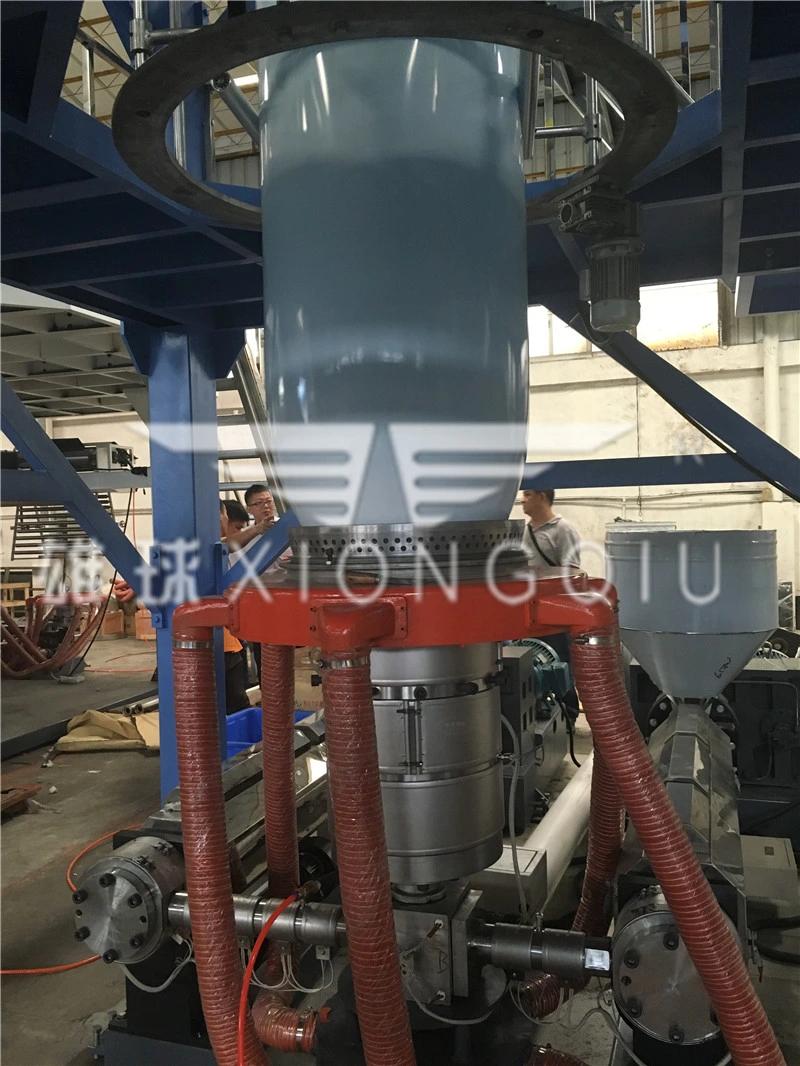

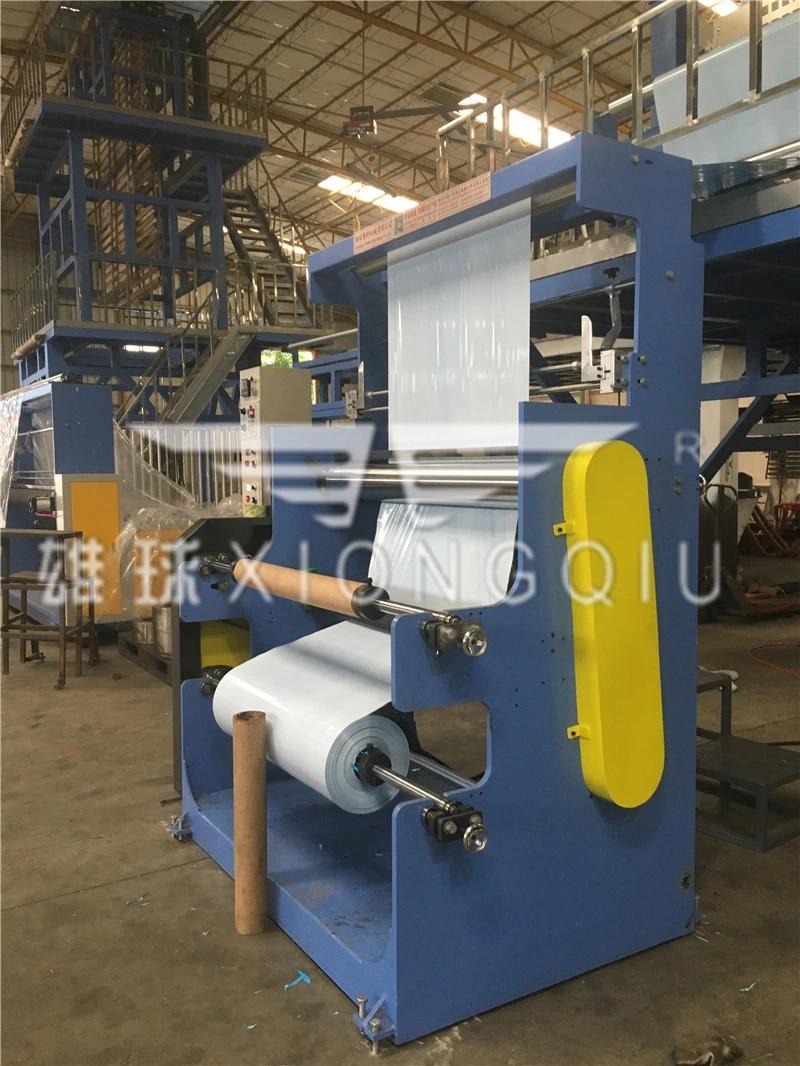

1300mm Ab 2 Layers Film Blowing Machine with Horizontal Oscillating Unit

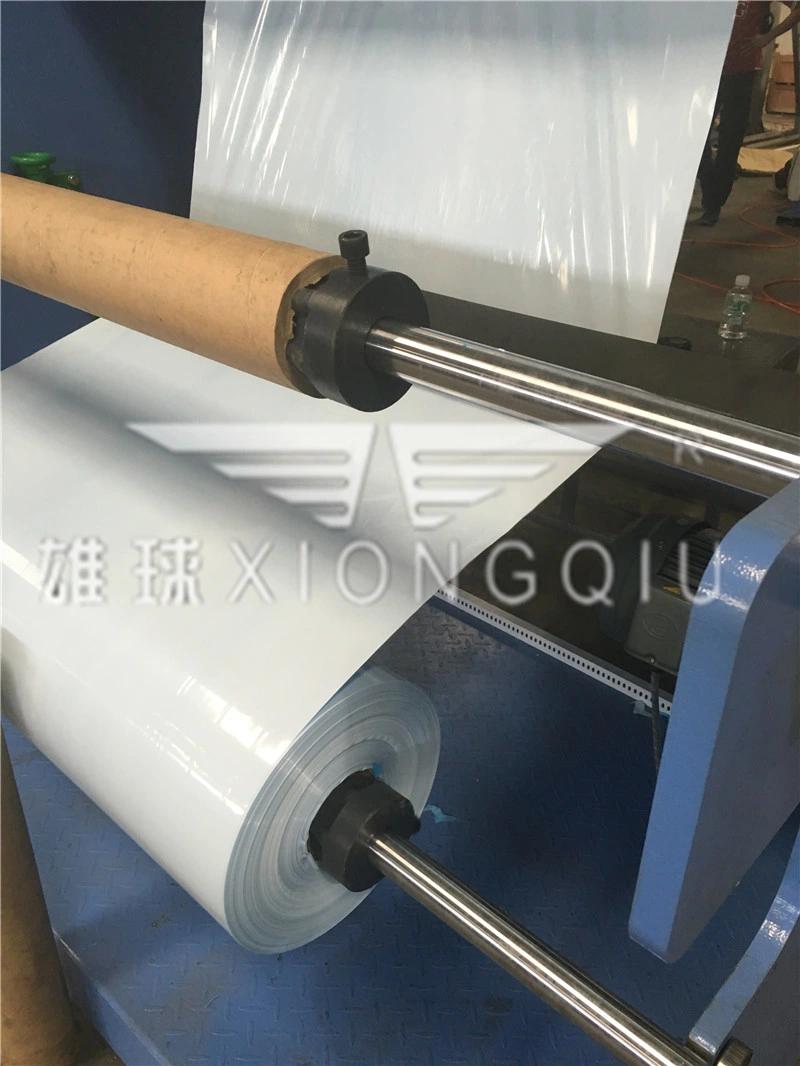

1300mm Ab 2 Layers Film Blowing Machine with Horizontal Oscillating Unit
