• Model NO.：360mm; 635mm; 1270mm; 1500mm
• Computerized：Computerized
• Certification：CE, UL
• Customized：Customized
• Condition：New
• Transport Package：Wooden Packing
• Specification：Produce product width: 360mm , 635mm,1270mm
• Trademark：GPMplas
• Origin：China
• HS Code：8477209000
• Production Capacity：3 Tons,24 Hours

Basic Info.

Model NO. 360mm; 635mm; 1270mm; 1500mm Computerized Computerized Certification CE, UL Customized Customized Condition New Transport Package Wooden Packing Specification Produce product width: 360mm / 635mm/1270mm Trademark GPMplas Origin China HS Code 8477209000 Production Capacity 3 Tons/24 Hours

Product Description

Thermoplastic UD Tapes machine;CFRT machine;CFRTP machine;unidirectional tape machine;Fiberglass tape machine;CFRT sheet machine;UD sheet machine;

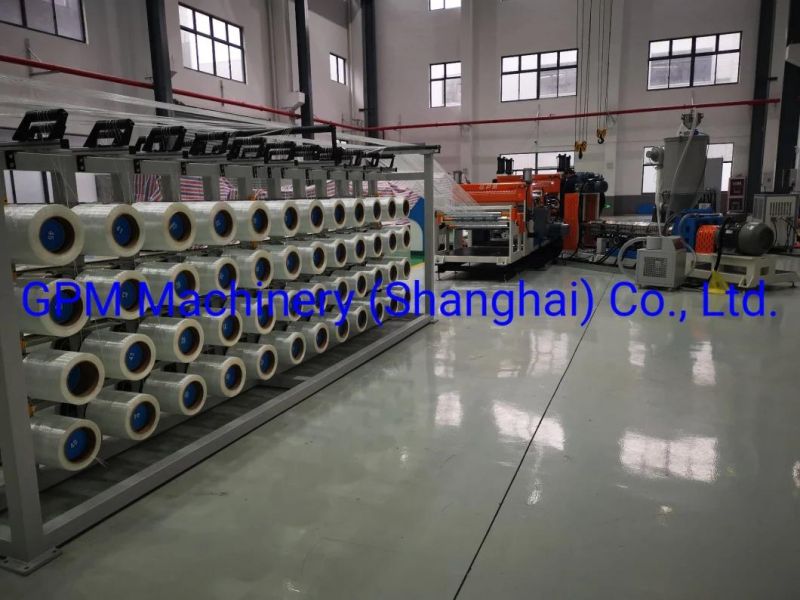

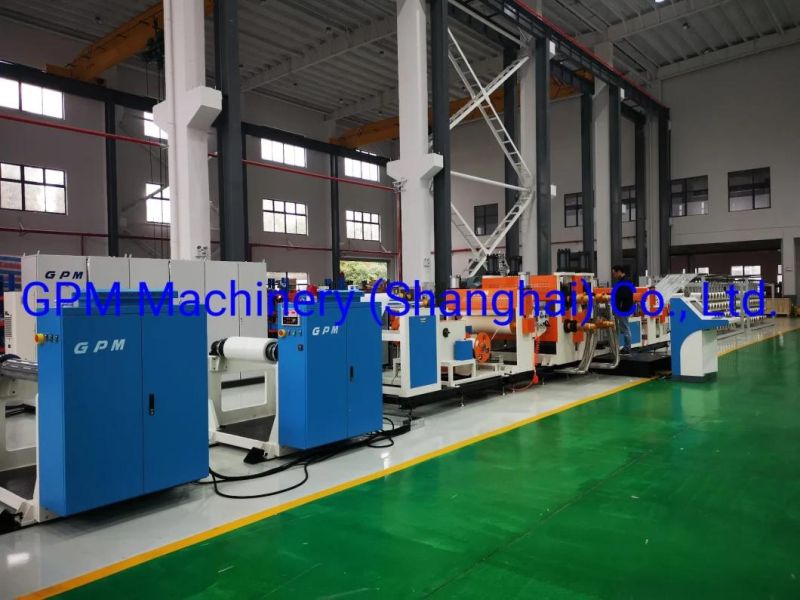

Using extrusion melt impregnation process produce for PP PE PA + continuous glass fiber reinforced thermoplastic unidirectional tape production line

1,Can using fiber types: Glass fiber,carbon fiber,aramid fiber;
2,Use extruder model: single screw extruder or twin screw extruder;
3,The proportion of glass fiber in UD tape : 50%-70%;
4,Can using plastic raw materials: PP/PE/PA6;
5,Production product thickness: 0.22-0.3 mm;
6,Produce product width: 1270mm635mm360mm;

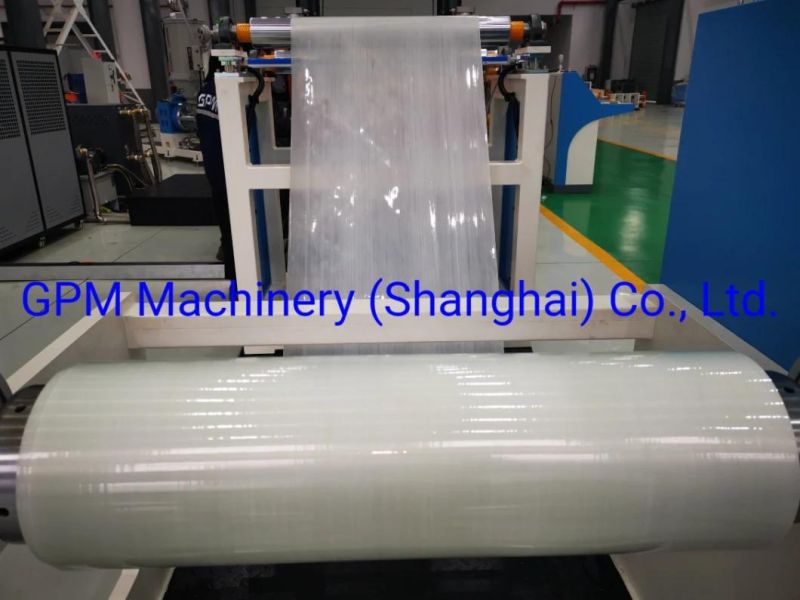

Fiber tape Continuous Reinforced Thermoplastic UD tapes are available in rolls of unidirectional tape and multi-ply laminates. Multi-ply laminates can be made by consolidating Fiber tape UD tapes in desired stacking orientation and sequence to form a thermoplastic composite sheet. These sheets can be used with composite family products to make high impact resistant thermoplastic sandwich panels.

Fibrotape is a highly engineered advance continuous fiber reinforced thermoplastic UD tapes and laminates offered in a wide range of continuous fiber and resin combinations to increase stiffness / strength and impact resistance of the thermoplastic composite parts.

All these materials can be post-formed and co-molded with mixed thermoplastic materials in thermoforming process to achieve part designs that meet the most demanding performance targets.
