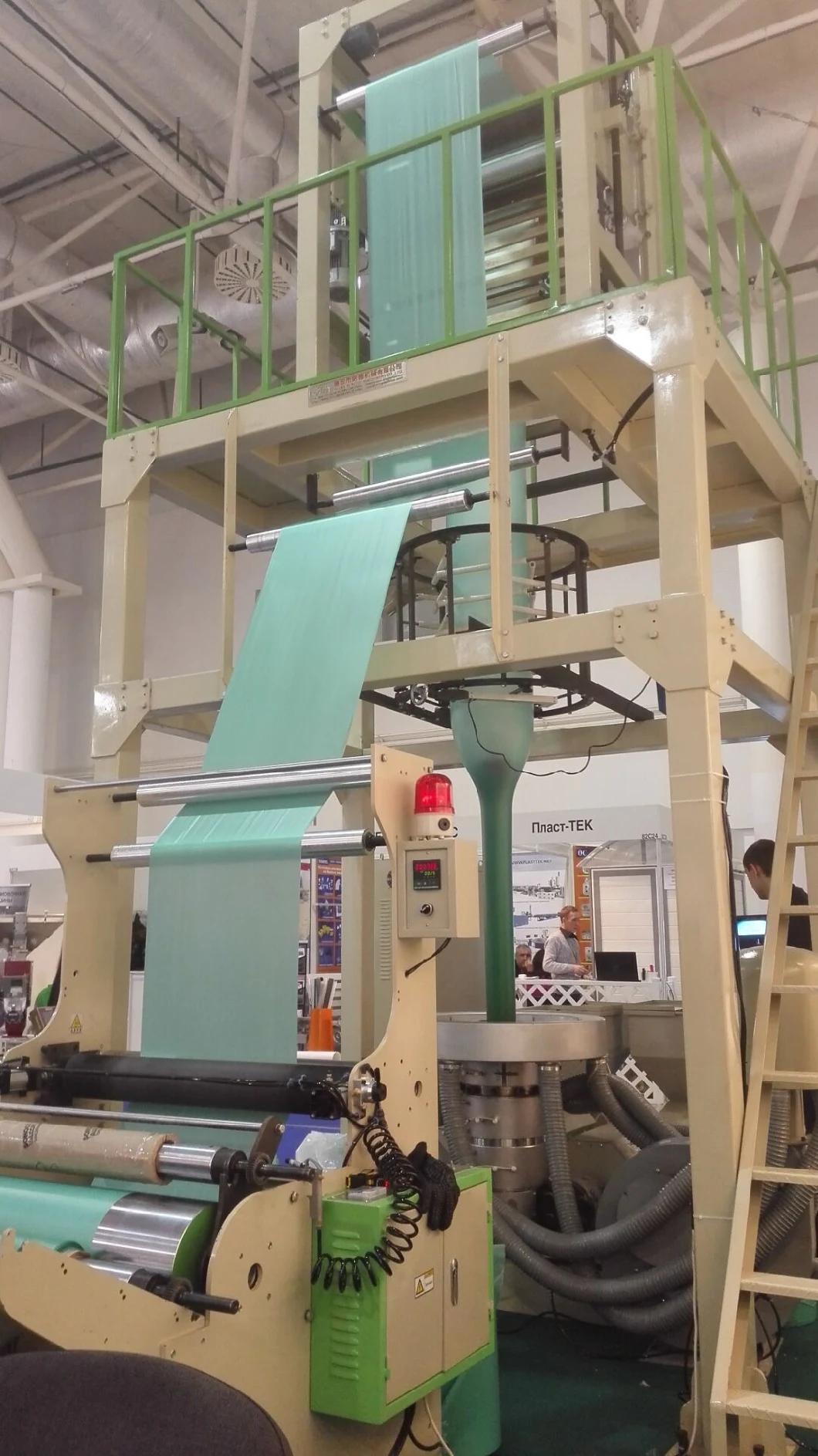

Film Application and PE Plastic Processed Second Hand Plastic Blowing Machine
Ruian Mingde Machinery Co., Ltd.- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：1200mm
- Screw Diameter：50mm
- Automation：Automatic
- Computerized：Computerized
Base Info
- Model NO.：MD-ABA
- Machine Weight：4T
- Certification：CE
- Transport Package：Nude Packing
- Specification：4.5× 2.2× 6.5(meter)
- Trademark：Mingde
- Origin：China
- HS Code：8477209000
- Production Capacity：30 Sets , Year
Description
Basic Info.
Model NO. MD-ABA Machine Weight 4T Certification CE Transport Package Nude Packing Specification 4.5× 2.2× 6.5(meter) Trademark Mingde Origin China HS Code 8477209000 Production Capacity 30 Sets / YearProduct Description
| Model | MD-ABA50,55 |
| Suitable Material | HDPE,LDPE |
| Max Film Width(mm) | 1200 |
| Film Thickness(mm) | 0.012-0.12mm |
| Max Extrusion Output | 120kg/hr |
| Gear Box | 146X1,173×1 |
| Screw Diameter(mm) | φ50×1, φ55×1 |
| Screw L/D Ratio | 28:1 |
| Screw's Material | 38CRM(55 |
| Barrel's Material | 38CRM |
| Barrel's Cooling Fan | 370W×2×2 |
| Thermo Control (zone) | 3×2 |
| Driving Motor (kw) | 18.5kwx1,22×1 |
| Die Size (mm) | HD:φ150 LD250 |
| Screen Changer | Normal |
| Thermo Control (zone) | 3 |
| Air Ring | 1 |
| Cooling Blower (kw) | 5.5 |
| Center Steady Stick | 1 |
| Roller Width (mm) | φ138×1300 |
| Embossing Roller Width | 700mm |
| Take-UP Motor (kw) | 1.1 |
| Take-UP Speed(M/min) | 10-60 |
| Height adjustable type | yes |
| Type OF Winder | Single winder with air shaft |
| Roller Width (mm) | 1300 |
| Winding Motor (N.M) | 16 |
| Winding Speed(M/min) | 10-80 |
| Voltage | 380V,3P,50HZ |
| Cover Dimensions (m) | 4.5×2.2×6.5 |
