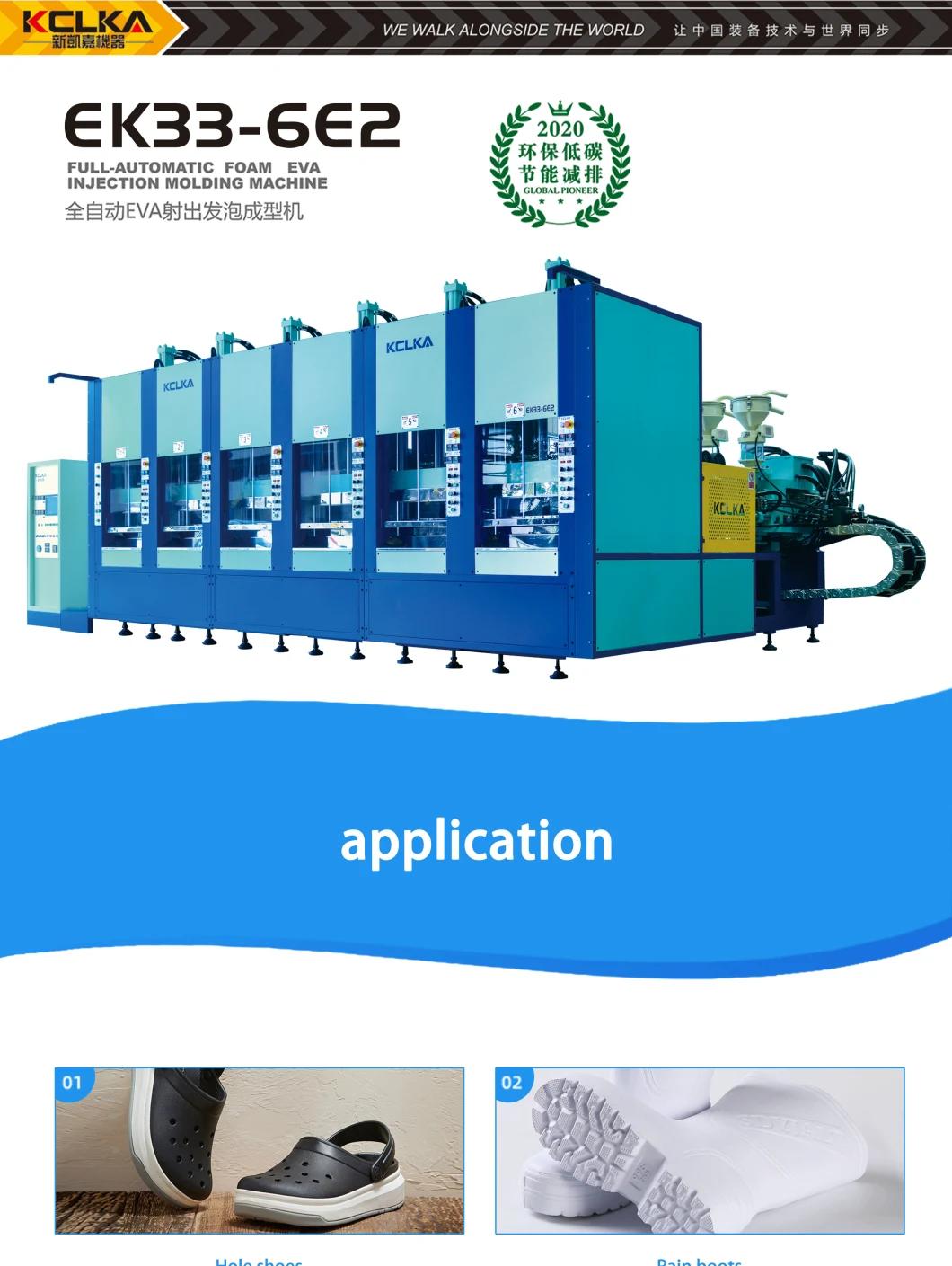

• Model NO.：EK33-6E2
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Productivity：2500 Pairs , Day
• Transport Package：Container
• Specification：CE
• Trademark：KCLKA
• Origin：Fujian, Jinjiang
• HS Code：84773090
• Production Capacity：35 Set Per Month

Basic Info.

Model NO. EK33-6E2 Computerized Computerized Certification CE, ISO9001:2008 Productivity 2500 Pairs / Day Transport Package Container Specification CE Trademark KCLKA Origin Fujian, Jinjiang HS Code 84773090 Production Capacity 35 Set Per Month

Product Description

Work Station	station	6
Clamping Force	ton	180
Mold Plate Size	mm	(290*550)*2
Mold Height	mm	100-220
Mold-opening Stroke	mm	350
Injection System
Injector		2
Diameter of Screw	mm	Φ65
Injection Cap(Max)	cm³	995
Injection Pressure	kg/cm²	0-130
Injection  Speed	cm/sec	0-10
Rotating Speed of Screw	r.p.m	0-190
Temperature Control	section	4
Electricity Consumption
Heater Barrel	kw	9.8*2
Heating Plate	kw	76.8
Hydraulic System	kw	51.9
Vacuum Pump	hp	1.5
Cooling Fan of Barrel	hp	1
Total Electricity	kw	148.3
Oil Tank Size	L	1000
Machine Weight	kg	26000
Machine Dimension	mm	8000*4500*3000

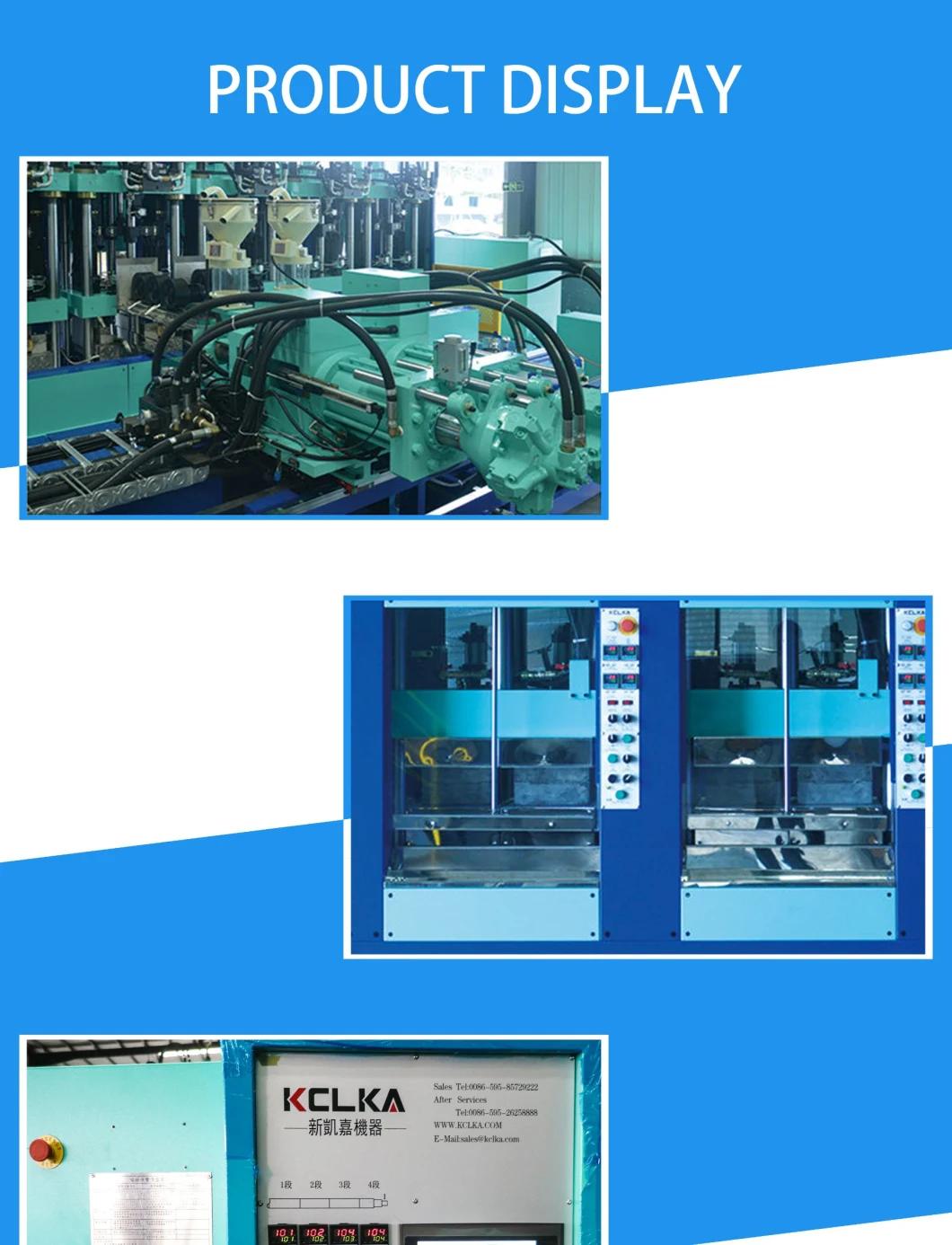

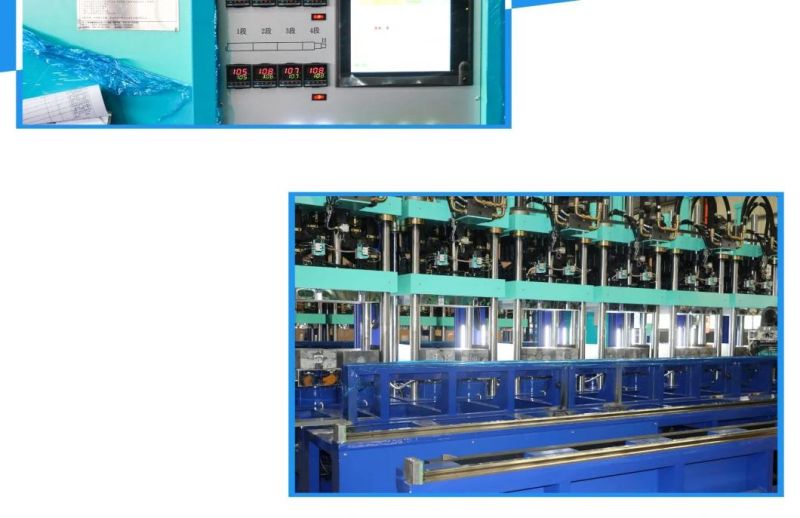

Machine and finished product display:

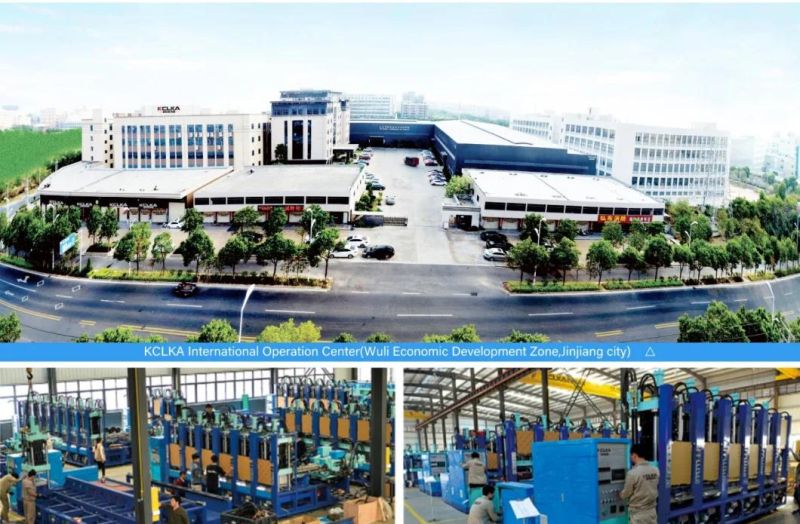

Company introduction:

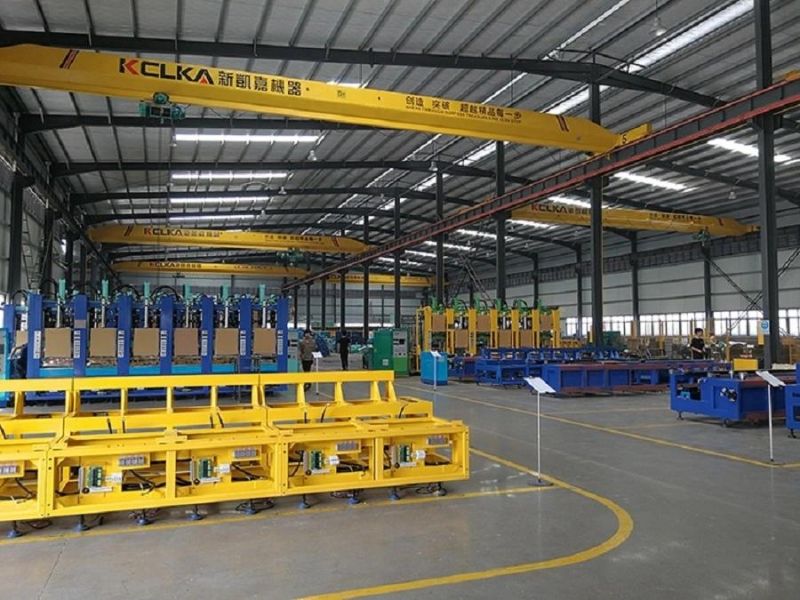

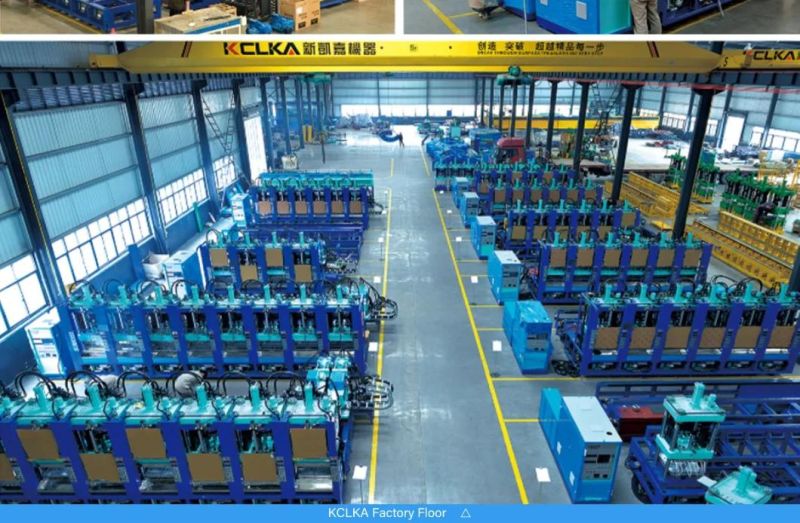

KCLKA Machinery Manufacturing Co., Ltd. was established in 2003 and is located in Jinjiang City, "The capital of Chinese brands". It is a high-tech research and development enterprise specializing in the production of various shoe processing equipment. The company now has more than 200 employees and a modern standard factory building of more than 60,000 square meters, with factories in Jinjiang and Xiamen.
KCLKA  Machinery's products are well-known in the footwear manufacturing industry for their complete categories, reliable quality and thoughtful service. The main products are EVA injection molding machines, EVA secondary foaming molding machines, PVC injection molding machines, TPR injection molding machines, E-TPU Foam molding machines and other shoe-making machines, various matching machinery and equipment, such as dripping machines, etc. At present, the products are always in a leading position in the industry and are exported to dozens of countries on five continents including Turkey, Africa, South Africa, Vietnam, Russia and Southeast Asia. The domestic and foreign sales and technical service systems have also been improved.





FAQ:
1.How long have you been doing it?
  We started in 2003 and already have 17 years of industry experience.
2.Are you a trading company or a manufacture?
   We are manufacture .
3.Where is your company?
  Our company is located at No.30 Quanyuan Road(Wuli Park), Jinjiang
  Economic Development Zone, Jinjiang City, Fujian province, China(Mainland). The branch is located in Wushan Industrial Zone, Jinjiang City, Fujian Province.
