• Model NO.：RC-100
• Computerized：Non-Computerized
• Certification：CE
• Name：Plastic Rubber Cutting Machine
• Function：Cutting Plastic
• Transport Package：Container
• Specification：100Ton
• Trademark：QIANGYE
• Origin：Guangdong, China (Mainland)

Basic Info.

Model NO. RC-100 Computerized Non-Computerized Certification CE Name Plastic Rubber Cutting Machine Function Cutting Plastic Transport Package Container Specification 100Ton Trademark QIANGYE Origin Guangdong, China (Mainland)

Product Description

Product Introduction

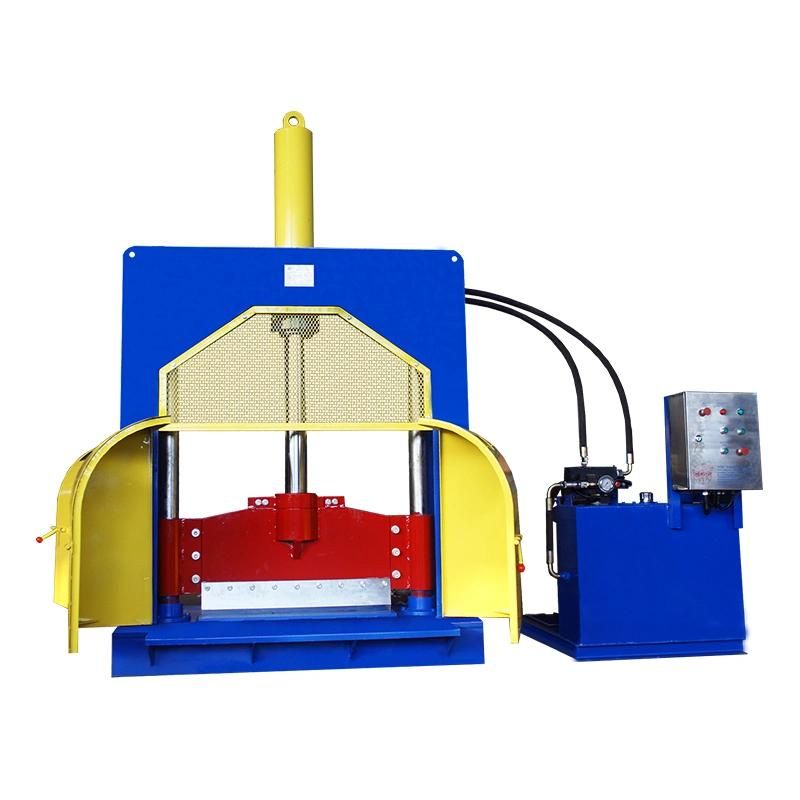

This machine is mainly suitable for cutting natural rubber, synthetic rubber and other plastic materials, especially suitable for
installing next to the internal mixer to cut small pieces of rubber.
The machine is mainly composed of rubber cutter, frame, working cylinder, base, auxiliary workbench, hydraulic system, electrical
system and other parts. The base under the rubber cutter is equipped with a nylon backing plate to protect the blade of the rubber
cutter.
When cutting the raw rubber, manually place the rubber under the rubber cutter, and then press the start button, the rubber cutter
will fall along the slideway on the frame under the drive of the piston rod to cut the rubber.
The frame is equipped with two upper and lower limit switches to control the reversing valve to change the direction of movement
of the rubber cutter, and at the same time, it can also protect the cylinder head of the piston cylinder.



Model	Blade width (mm)	Stroke (mm)	Pressure (ton)	Oil pump discharge (L/Min)	Oil capacity (KG)	Motor power (KW)	Total weight (KG)	Dimension (mm)
RC-40T	900mm	900mm	40 ton	46 L/min	70kg	7.5kw	1400kg	1200X900X2800mm
RC-60T	1000mm	900mm	60 ton	63 L/min	110kg	11kw	2500kg	1300X800X2900mm
RC-100T	1200mm	1000mm	100 ton	63 L/min	130kg	15kw	3100kg	1400X1000X3100mm
RC-250T	1500mm	1000mm	250 ton	250 L/min	200kg	37kw	4000kg	1800X1200X3300mm
RC-300T	1500mm	1000mm	300 ton	340 L/min	250kg	37+11kw	4500kg	1800X1200X3400mm
