0.02mm Tolerance PLA ABS PETG Peek 3D Printing Filament Extruder

Zhangjiagang Plastar Machinery Co., Ltd.
  • Type：Filament Extruder
  • Plastic Processed：PETG PC PLA ABS Peek Nylon
  • Product Type：Granulating Extruder
  • Feeding Mode：One Feed
  • Assembly Structure：Integral Type Extruder
  • Screw：Single-Screw

Base Info

  • Model NO.：PL
  • Engagement System：Intermeshing
  • Screw Channel Structure：Deep Screw
  • Exhaust：Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Screw Design：Single Screw
  • Screw Diameter：25mm, 35mm, 45mm
  • Color：Customized
  • Cooling Type：Water Cooling
  • Raw Material：Pet, Peek, PLA, PC, ABS, Nylon
  • Final Product：Filament
  • Usage：3D Printer Filament Extrusion
  • Filament Dia.：1.75-3mm
  • Tolerance Control：0.02-0.03mm
  • One Spool Weight：About 1kg
  • Whole Line Length：12.5meters
  • Whole Line Weight：2t
  • Installed Power：Around 20kw
  • Main Motor Power：5.5kw
  • Capacity：20-30kg,H
  • Transport Package：Standard Pacakge
  • Specification：It depends
  • Trademark：Plastar
  • Origin：China
  • HS Code：84772090
  • Production Capacity：1000sets,Year

Description

ModelPowerDiameterCapacityToleranceMaterialPL-252.2 KW1.75mm-3mm

3-5Kg/h

+0.02mmPLA ABS HIPS PA PET Nylon PPPL-304 KW1.75mm-3mm10-15Kg/h+0.02mmPLA ABS HIPS PA PET Nylon PPPL-457.5 KW1.75mm-3mm20-25Kg/h+0.02mmPLA ABS HIPS PA PET Nylon PP



This Filament Extruder Machine is composed by following parts:

No.ItemQty1Hopper Dryer1 Set2Single Screw Plastic Extruder1 Set3Die2 Sets4Hot & Cooling water cooling tank2 Sets5Horizontal storage rank1 Set6Backstop machine1 set7Haul-off machine1 set8Winding machine1 set

0.02mm Tolerance PLA ABS PETG Peek 3D Printing Filament Extruder0.02mm Tolerance PLA ABS PETG Peek 3D Printing Filament Extruder0.02mm Tolerance PLA ABS PETG Peek 3D Printing Filament Extruder

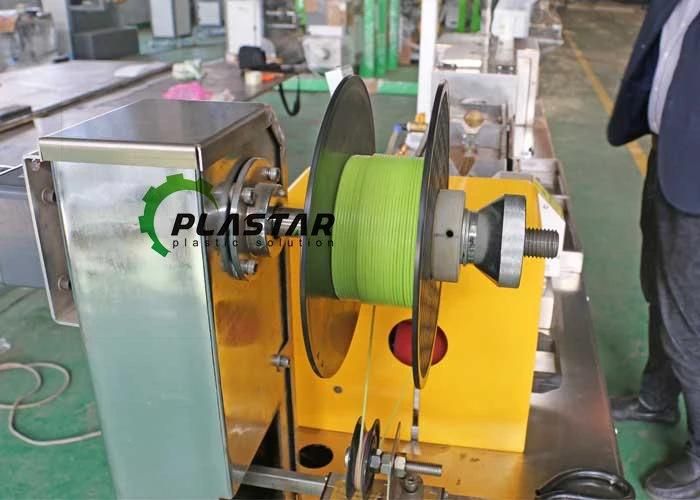

High Precision PLA ABS 3D Filament Extruder Machine pictures for reference:



Commercial Details:



Payment: Deposit 40% contract into valid, delivery against payment of 60% balance after qualified acceptance;



Leave factory testing: Before leaving factory, equipment should be tested by both parties. Test material offered by buyer;



Installation and debugging: We will send 1-2 technicians for machine's installation and debugging according to customer's requirement: The technicians' board and lodging and the round-trip airplane ticket expense undertaken by the buyer, additional service charge USD80. for each technician / one day, estimate 2-3 working days.



Guarantee period: Guarantee period is 12months after leaving factory, damaged parts caused by quality problem is changed for free during guarantee period. Maintenance Technicians' board and lodging and the round-trip airplane ticket expense undertaken by the buyer, but without service charge.



Service after sale:



- Service is available lifelong. Maintenance technicians' board and lodging and the round-trip airplane ticket expense undertaken by the buyer. After 12months guarantee period over, should pay additional service charge USD80.00 for each Technician / one day;

- will response any inquiry within 24 hours and it will be solved as soon as possible;

can offer training customer's engineers for free; will send enough technicians to the Buyer's company for installation and testing the lines.
