• PVC Ceiling Production Line：Ceiling Machine
• PVC Ceiling：Profile Production Line
• Inverter：ABB
• PVC Profile：PVC Extrusion
• Ceiling Machine：Ceiling Production Line
• PVC Ceiling Extrusion Line：PVC Ceiling Production Line
• Transport Package：Wood
• Specification：sgs
• Trademark：middle tech
• Origin：Zhangjiagang City
• HS Code：84778020
• Production Capacity：300kg,Hr

Basic Info.

PVC Ceiling Production Line Ceiling Machine PVC Ceiling Profile Production Line Inverter ABB PVC Profile PVC Extrusion Ceiling Machine Ceiling Production Line PVC Ceiling Extrusion Line PVC Ceiling Production Line Transport Package Wood Specification sgs Trademark middle tech Origin Zhangjiagang City HS Code 84778020 Production Capacity 300kg/Hr

Product Description

Product Description
This machine is mainly PVC ceiling profiles. This PVC profile production line adopts advanced design concept to ensure the efficient extrusion of PVC material, max can reach 250phr CaCo3 to help customer save cost.

Plastic PVC celing production line








Technical data

Model/data	Max width	Extruder model	Motor power	Max capacity
YF180	180mm	LSZ51/105	22kw	120kg/h
YF240	300mm	LSZ65/132	37kw	260kg/h
YF600	600mm	LSZ80/156	55kw	400kg/h
YF800	800mm	LSZ92/188	90/100kw	650kg/h

Components of PVC profile production line

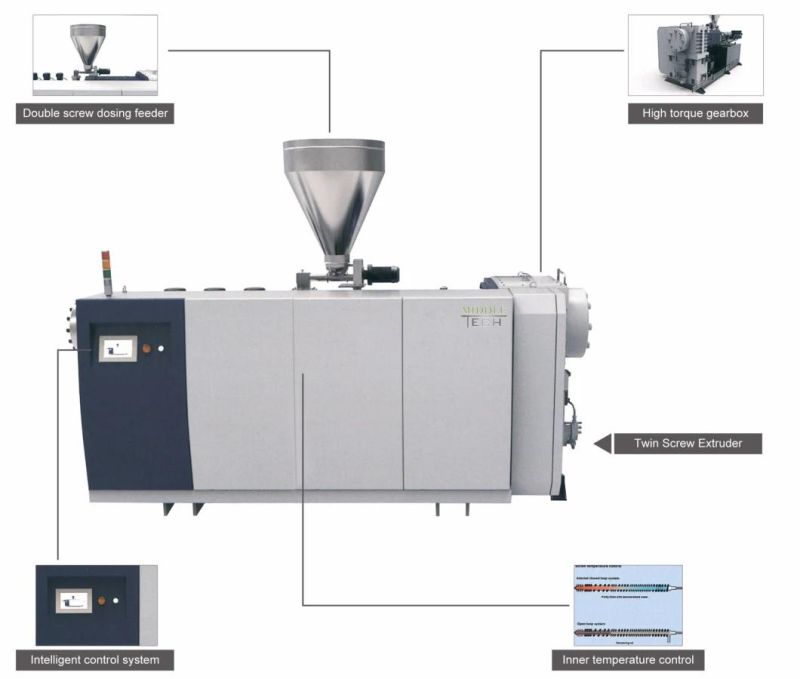

a. Conical twin screw extruder:
Using the high efficient conical twin screws, specially designed for PVC power to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

b. Extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality PVC profiles. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the PVC profiles fast calibrated and cooled.

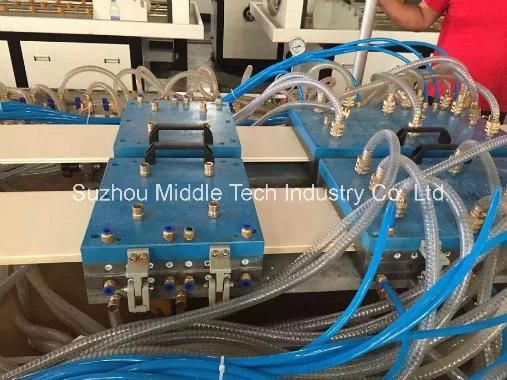

c. Calibration table:
Rapid vacuum calibrating system allows the hot extruded PVC profiles to be cooled in a very short time and obtain the final size. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the sizing and cooling performance as well as the production speed.

d. Haul off machine:
Adopts caterpillar type suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

e. Cutting machine:
Precision machine cutter is able to make flat, straight cuts at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

6. Stacking:
Automatic stacking with fixed length
