Pert Pipe Extrusion Machine with CE and ISO
Qingdao Suke Machinery Co., Ltd.- Product Type:PE Pipe
- Screw No.:Single-screw
- Automation:Automatic
- Computerized:Computerized
- Certification:CE, ISO9001:2008
- Customized:Customized
Base Info
- Model NO.:SJ65
- Condition:New
- Machine Color:as Request
- Raw Material:PE Granule
- Inverter Brand:ABB or FUJI
- Contactor:Schneider
- Cooling Method:Water Cooling Tank
- Temperature Controller:Rkc
- Screw Material:38crmoaia
- Oversea Service:Availiable
- Operator:2-4per Line
- Material:Stainless Steel
- Transport Package:in Wooden Case
- Specification:ISO, CE
- Trademark:SUKE
- Origin:Qingdao
- HS Code:84775900
- Production Capacity:50 Sets Per Year
Description
Basic Info.
Model NO. SJ65 Condition New Machine Color as Request Raw Material PE Granule Inverter Brand ABB or FUJI Contactor Schneider Cooling Method Water Cooling Tank Temperature Controller Rkc Screw Material 38crmoaia Oversea Service Availiable Operator 2-4per Line Material Stainless Steel Transport Package in Wooden Case Specification ISO, CE Trademark SUKE Origin Qingdao HS Code 84775900 Production Capacity 50 Sets Per YearProduct Description

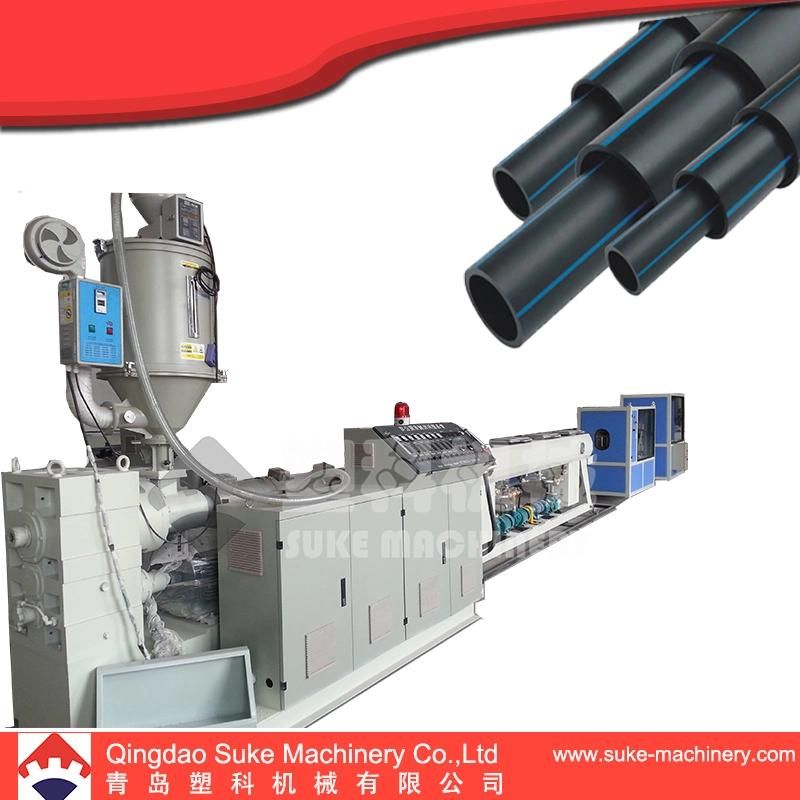

PE-RT Aluminum Plastic Composite Pipe Extrusion LineDescription:
This line is used to produce PE-RT aluminum plastic composite pipe by single screw extruder.
The Raw material is PE granule.
The extruder type depends on the diameter of pipe.
Equipment List;
Split spiral extrusion die is designed for PPR pipe, production range of 20-63mm, the maximum line speed is up to 10m/minI. The configuration of the line

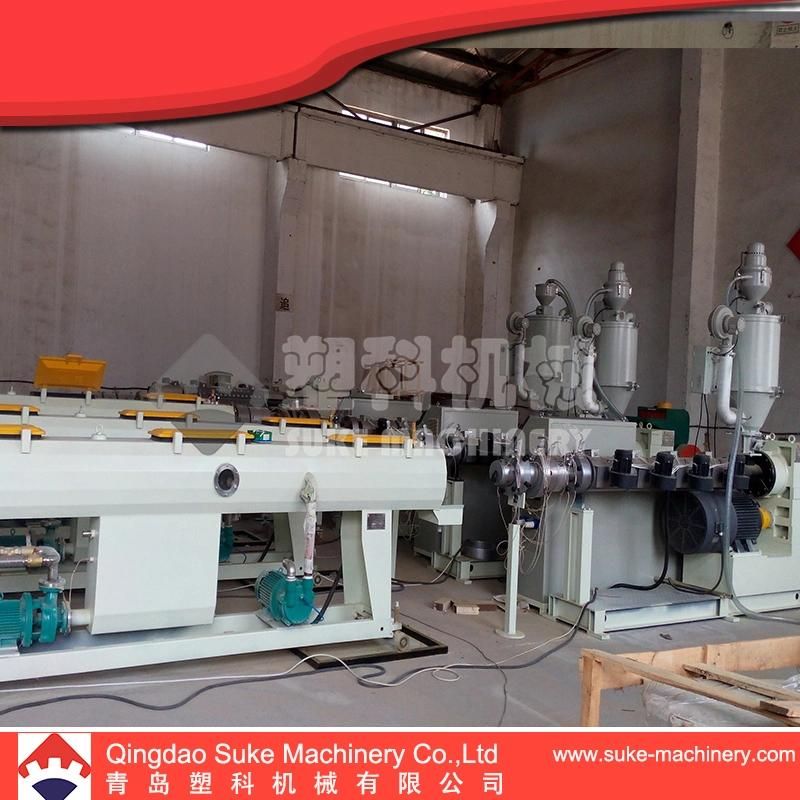

1. SJ-65/30 extruder:
2. Pipe die head and mould

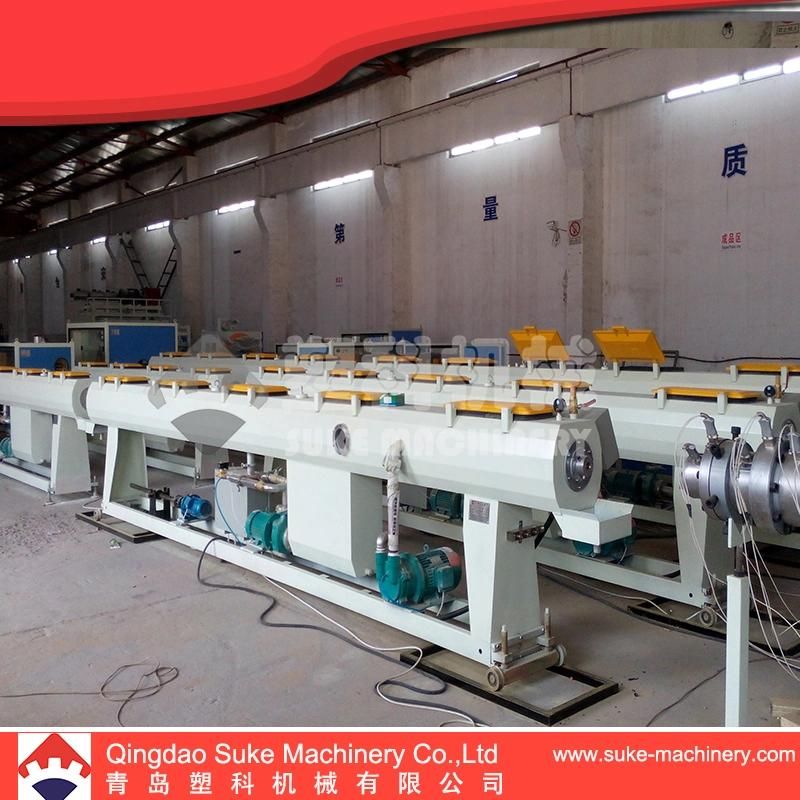

3. SZD-6000 Vacuum calibration unit

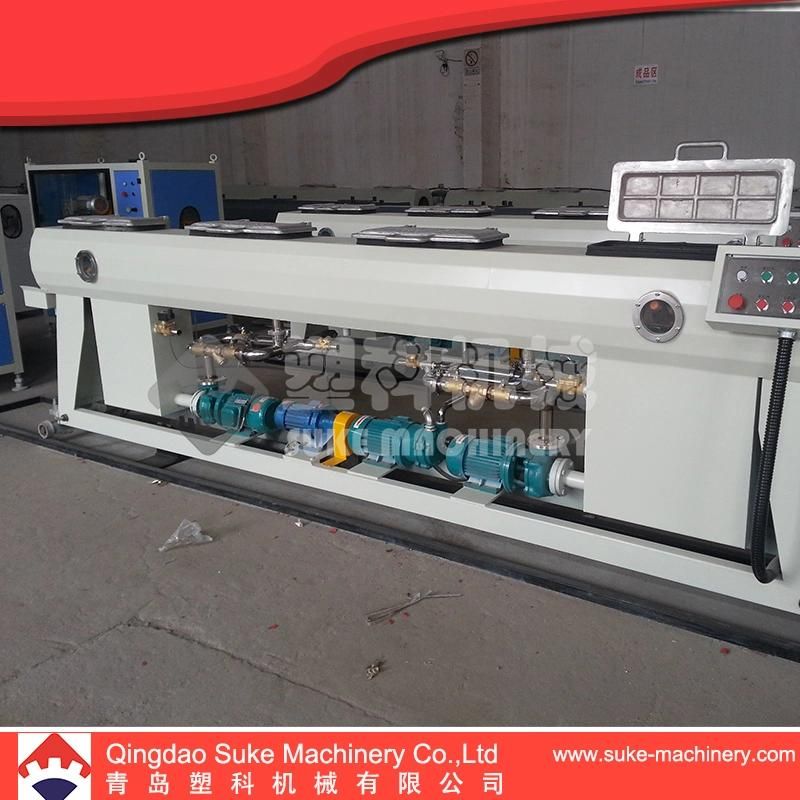

4 SDP-6000 Spraying water cooling tank

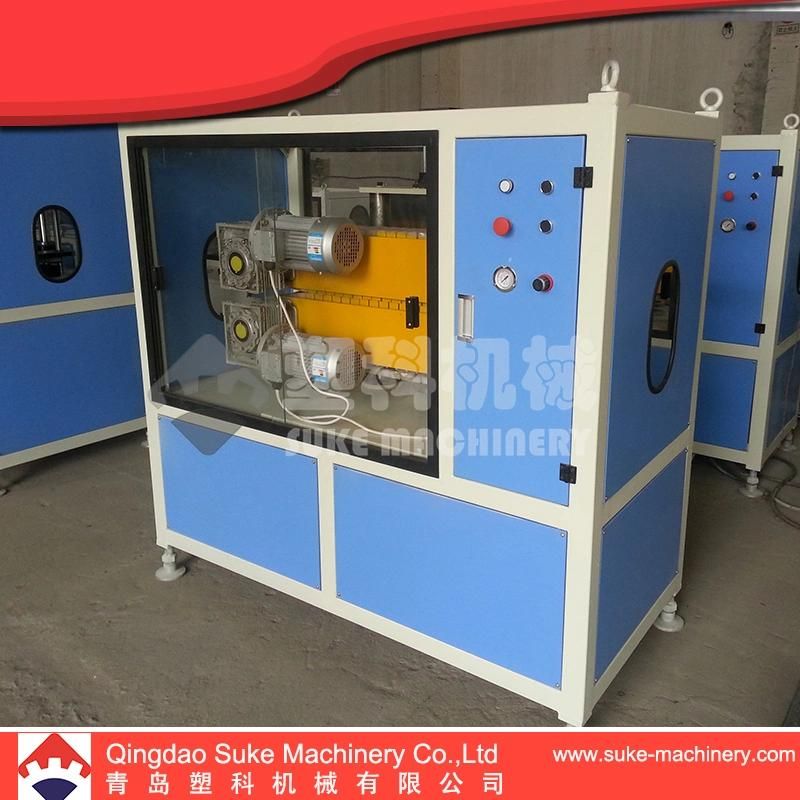

5. SQY-63 Hauling-off machine (the height of the centerline is 1000mm
6. Twin Position Coiler
Pls contact with us, if you are interested in our machine.
We would like to provide machine quotation with machine specification for you.
Qingdao Suke Machinery Co.,Ltd
Model/Sepc. | Diameter Range (mm) | Extruder model | Line speed (m/min) | Max. Capacity (kg/h) | Installed power (KW) |
LPG65/30 | 20-63 | LSJ65/30 | 1-10m/min | 120 | 55 |
LPG90/30 | 75-160 | LSJ90/30 | 0.2-4.5m/min | 260 | 120 |
