• Model NO.：sjz
• Customized：Customized
• Condition：New
• Pipe Diameter：110~315mm
• Extruder：Sjz-65,132
• Power：90kw
• Motor：Siemens
• Inverter：ABB
• Electrical Parts：Siemens
• Color：Blue
• Brand：Faygo
• Keyword：Plastic Pipe Production Line
• Transport Package：PP,PE Film
• Specification：CE&ISO9001~2000
• Trademark：Faygo Plast
• Origin：Jiangsu Zhangjiagang
• HS Code：8448900
• Production Capacity：350~500kg,H

Mode

Pipe range

(mm)

extruders

Max. output

(kg/h)

Max. speed

(m/min)

Total power

(kw)

Line length

(m)

PVC-50x2

16-50

SJSZ51/105

150

6m

60w

20m

PVC-63

16-63

SJSZ45/90

120

10m

45w

20m

PVC-110

50-110

SJSZ51/105

150

6m

60w

24m

PVC-160

63-160

SJSZ65/132

300

5m

100w

24m

PVC-250

110-250

SJSZ80/156

400

3.5m

120w

28m

PVC-315

160-315

SJSZ 80/156

400

3m

160w

28m

PVC-450

250-450

SJSZ 92/188

700

1.5m

200w

36m

PVC-630

315-630

SJSZ92/188

700

0.9

230kw

36m

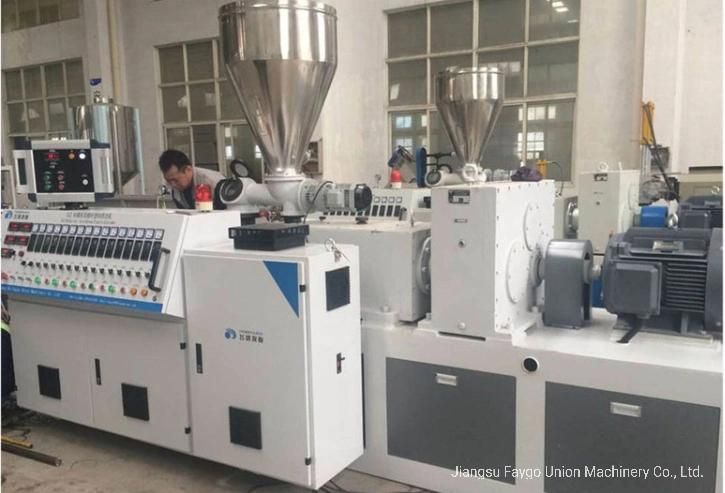

SJZ65/132 conical double-screw extruder

Feeding system: Motor Power: 1.5kw  ;Force Feeder Motor Timing:ABB inverter
Screw :  Diameter of screw: 92/188mm ; Material of screw: 38CrMoAl
Barrel:  Material: 38CrMoAlA; Heating mode: Cast aluminum + stainless steel covering ; Method of cooling: air blow

PVC double pipe extrusion mouldMaterial: Made by 40Cr. Inner surface polished
Pipe Thickness Control:With 2 different pipe wall thickness
Calibration mould material:Wearable tin bronze ZQSn5-2-5

Double Pipe Haul-off Machines

Haul-off length:1000mm
Haul-off Motor Power:0.55KW×4sets
Haul-off Speed :1.1KW×2sets Inverter
Haul-off Speed: 0.5~12 meters/min

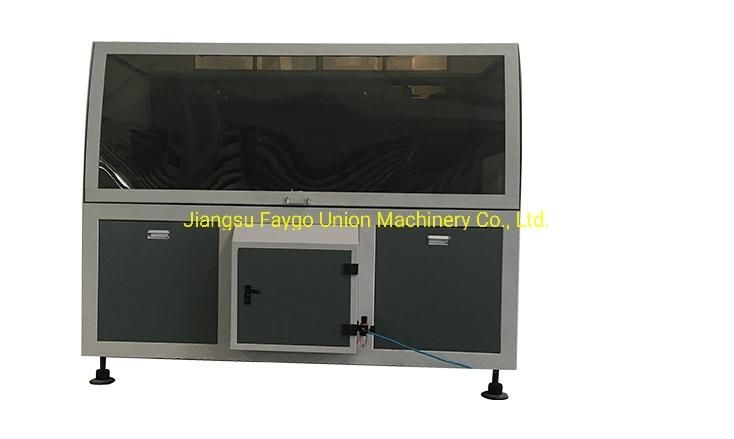

Double Pipe Cutter

Cutting pipe diameter scope:    16~40mm
Saw blade Diameter:  230mm
Cutter motor power:0.75KW×2 sets
Blade Bracket Longitudinal Moving Distance    500mm

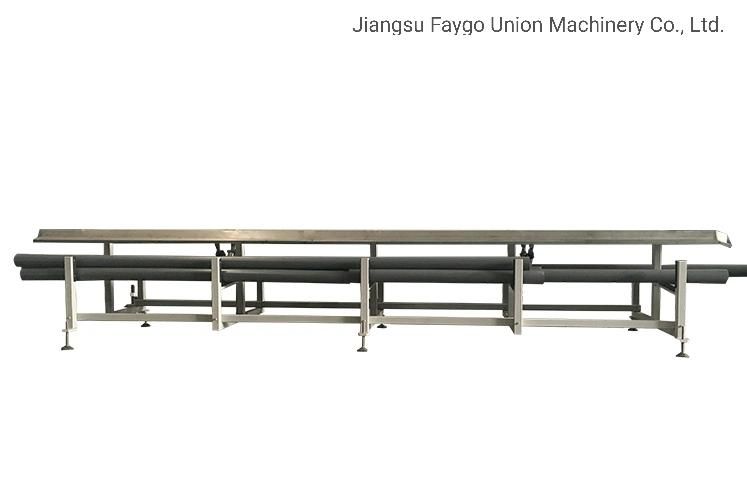

Double Pipe Stacker

The length of stacker: 2 meters
Support-Board:0.8mm stainless steel board
Working Method:    pneumatic, with stroke switch soleplate, to provide the fixed length cutting signal

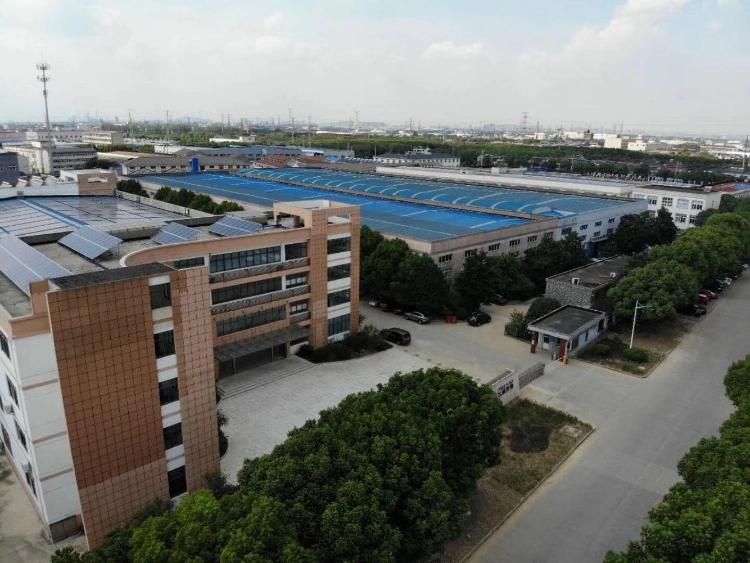

factory picture:
