• Machine Weight：3.4t
• Certification：CE
• Film Width：300-1200mm
• Film Thickness：0.006-0.08
• Main Motor：50
• L/D Ratio of Screw：30:1
• Rotation Speed of Screw：10-120r,M
• Gear Box：#173
• Transport Package：Shrink Film
• Specification：6*3.6*5.8
• Trademark：ChengHeng
• Origin：China
• Production Capacity：55kg,H

Basic Info.

Machine Weight 3.4t Certification CE Film Width 300-1200mm Film Thickness 0.006-0.08 Main Motor 50 L/D Ratio of Screw 30:1 Rotation Speed of Screw 10-120r/M Gear Box #173 Transport Package Shrink Film Specification 6*3.6*5.8 Trademark ChengHeng Origin China Production Capacity 55kg/H

Product Description

Agricultural Mulch Film Blowing Machine

Brief Introduction

CHSJ-Q series film blowing machine use HDPE/LDPE/LLDPE as materials, after being heated,extruded,drawn and

winding, then to be plastic film.It is widely applied to producing the packing bags for foodstuff,clothing,rubbish bag and

vest ones. Its extruder and cylinder are made of quality alloy steel that have been nitrizied and processed in a precision

way.Hence it is sound in hardness,durable in corrosion resistance, the specially-designed screw is of sound quality in

plasticizing,which helps increase the production capacity.

Technical Parameters

Model	Q-50/1300
Width of film	300-1200mm
Thickness of film	0.006-0.08mm
Max. Output	75kg/h
Weight	2800kg
Dimension	6*3.6*5.2
Main motor	22kw
Screw diameter	Φ50;30:1
Gear box	#173
Width of take up roller	1300mm
Air ring type	LDPEE double vents vacuum air ring
Lambdoidal board	Wooden flanned
Winding unit	Multi roll flat surface coiling machine
Guide type	Torque motor equipped RV reducer
Guide roller	Aluminum guide roller (HV300-HV700) surface treatment
Drive type	Torque motor equipped RV reducer

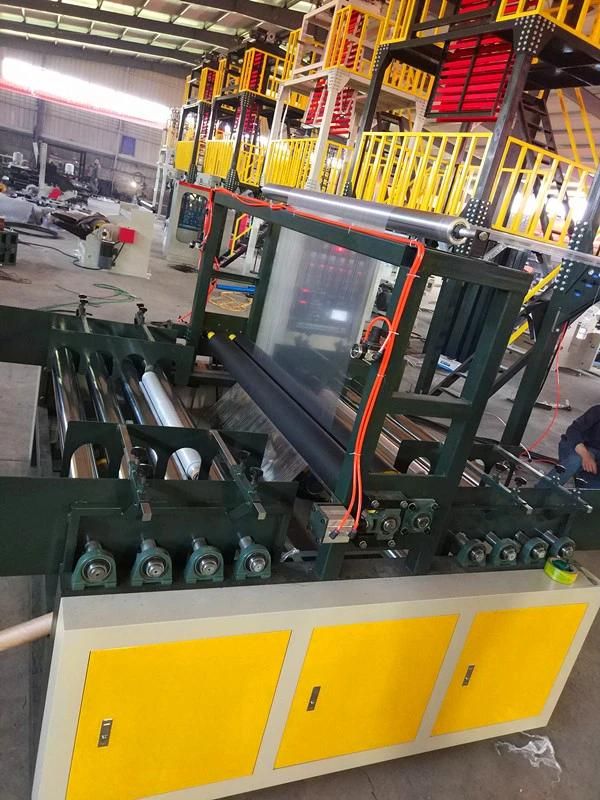

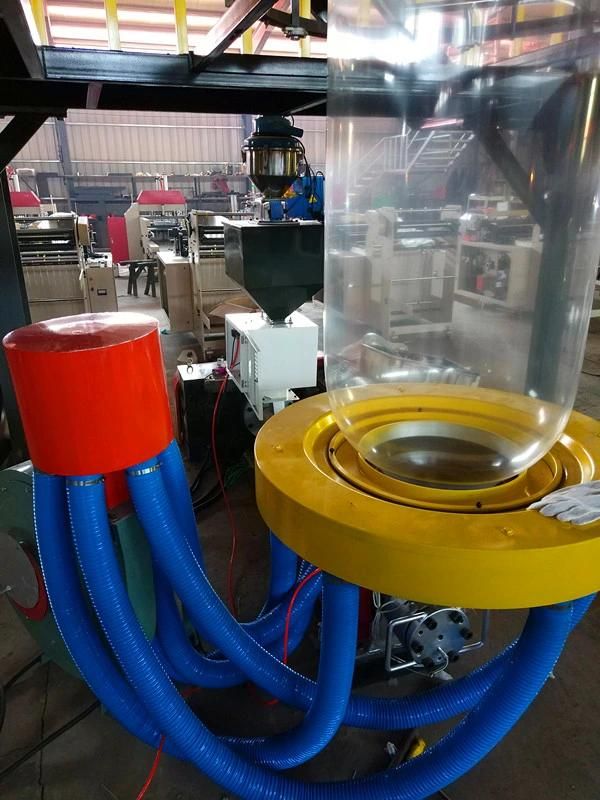

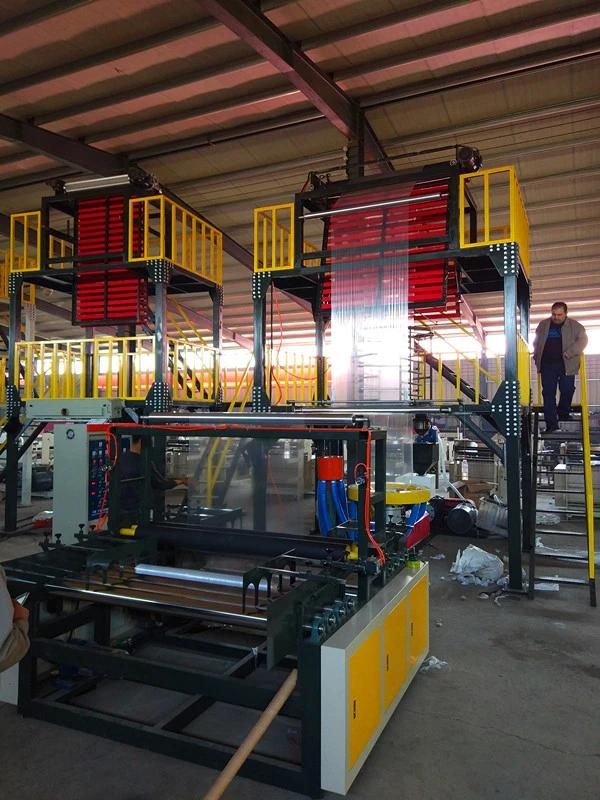

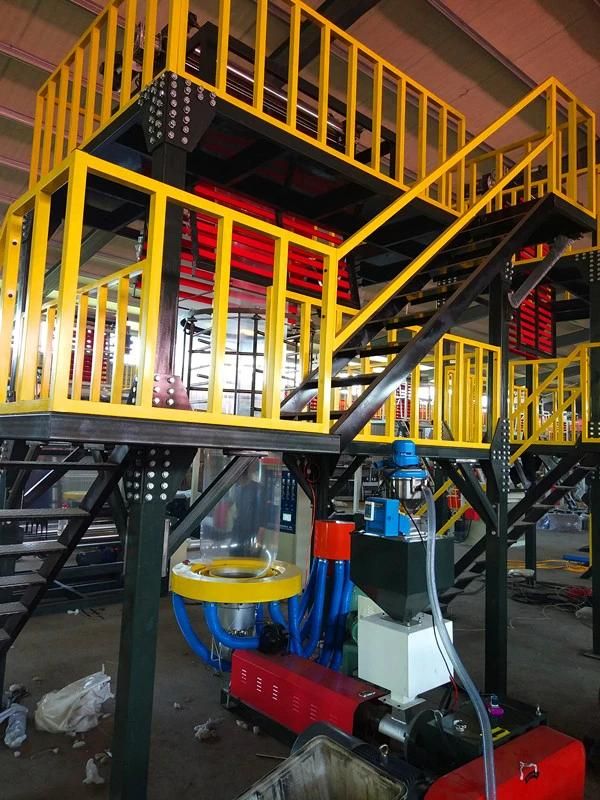

Product Show




Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ
Q1. What is your terms of packing?

A: Generally, we pack our goods in shrink film.Some machinery spares packed in carton or wooden box.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the

balance.

Q3. What is your terms of delivery?

A: FOB, CFR, CIF,.

Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and

the quantity of your order.

Q5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come

from.
