• Model NO.：Zig Zag Separator
• Computerized：Non-Computerized
• Certification：CE, SGS
• Name：Zig Zag Separator
• Color：Green
• Motor：Siemens
• Inverter：ABB
• Handle：Waste Plastic Bottle
• Core Part：Air Flow
• Princiole：Gravity
• City：Zhangjiagang
• Separate：Label and Dust
• Clean Medicament：Cuastic Soda
• Machine Material：Carbon Steel
• Blade Material：SKD11
• Temperature Control：Omron
• Contactor：Schneid
• Frictiong Washer：High Speed Type
• Transport Package：Film Sea Packing
• Specification：WD-1000
• Trademark：WEDO
• Origin：China
• HS Code：8477800000
• Production Capacity：10 Sets Per Year

Basic Info.

Model NO. Zig Zag Separator Computerized Non-Computerized Certification CE, SGS Name Zig Zag Separator Color Green Motor Siemens Inverter ABB Handle Waste Plastic Bottle Core Part Air Flow Princiole Gravity City Zhangjiagang Separate Label and Dust Clean Medicament Cuastic Soda Machine Material Carbon Steel Blade Material SKD11 Temperature Control Omron Contactor Schneid Frictiong Washer High Speed Type Transport Package Film Sea Packing Specification WD-1000 Trademark WEDO Origin China HS Code 8477800000 Production Capacity 10 Sets Per Year

Product Description

plastic recycling machine Zig Zag Separator machine, air separator machine

Description of plastic recycling machine Zig Zag Separator machine, air separator machine
Wedo air flow required for separation is blown through the separation channel from button to top. Light material is carried by the air flow up stream in to cyclone and through rotary sack in to sack on to the next conveyor. Heavy material cannot be carried by the air flow and falls through the air flow and is discharged through the separator base.

The light material transported by the air flow to the cyclone gets separated there and is discharged via rotary gate valve.

Zig Zag Air Separator Plants are usually operated in recirculation air mode, whereby the cleaned air is returned via blower to the separator base. In case of dusty or moist products the operation of the plant is also possible in partly air circulation or suction mode. The required air flow and pressure is generated by a radial blower.

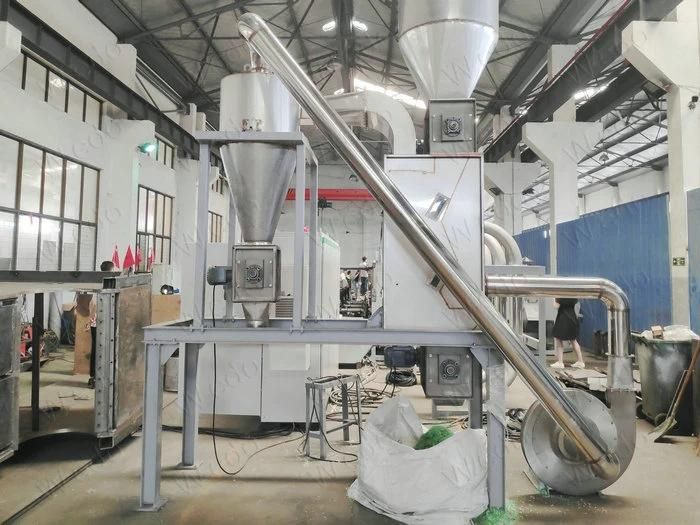

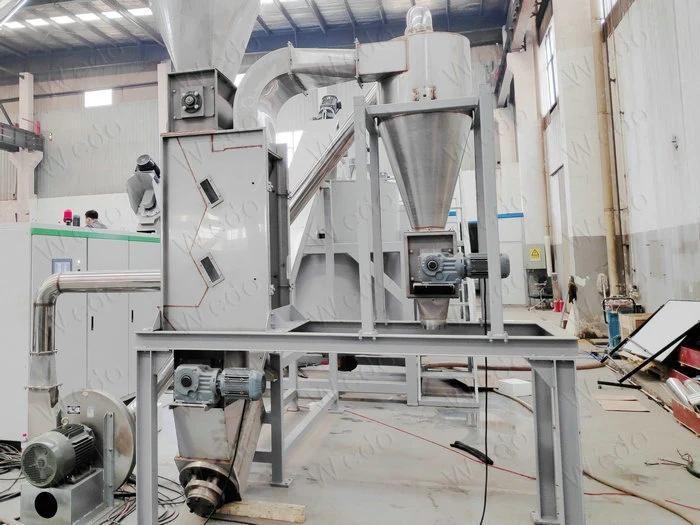

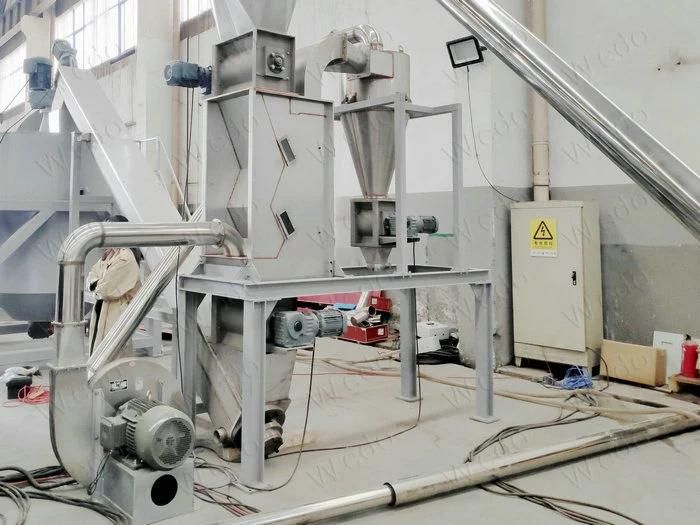

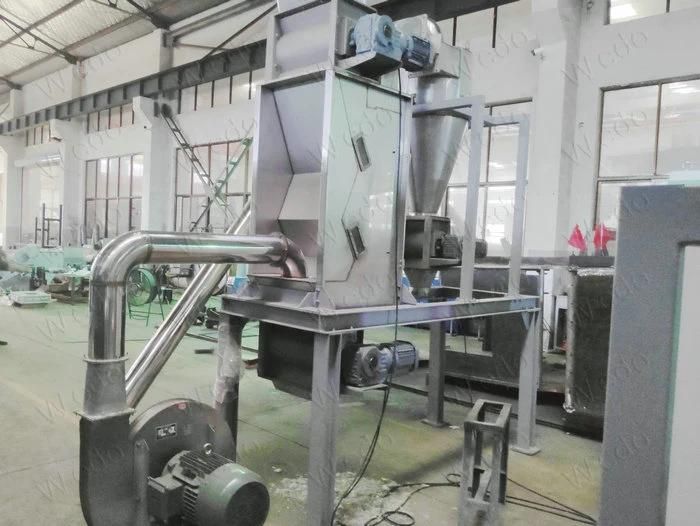

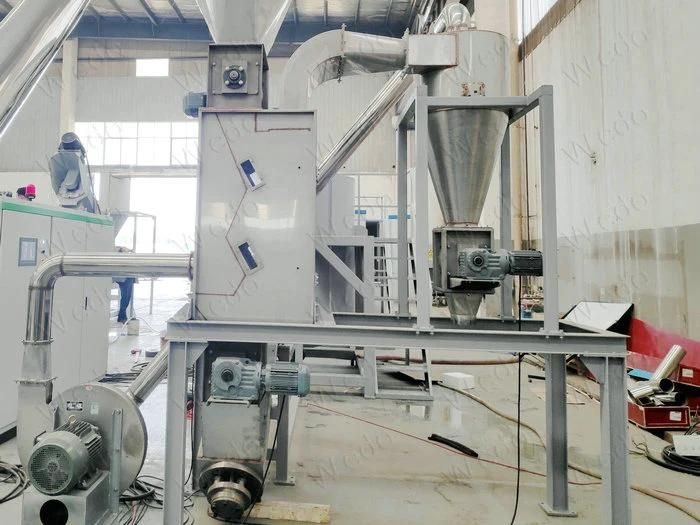

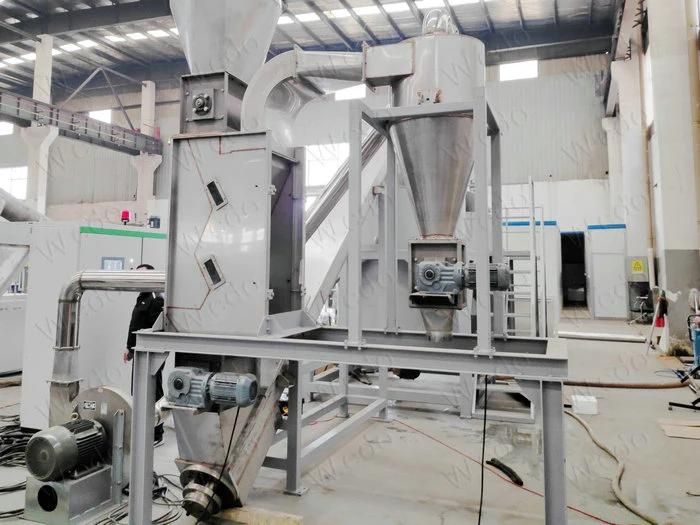

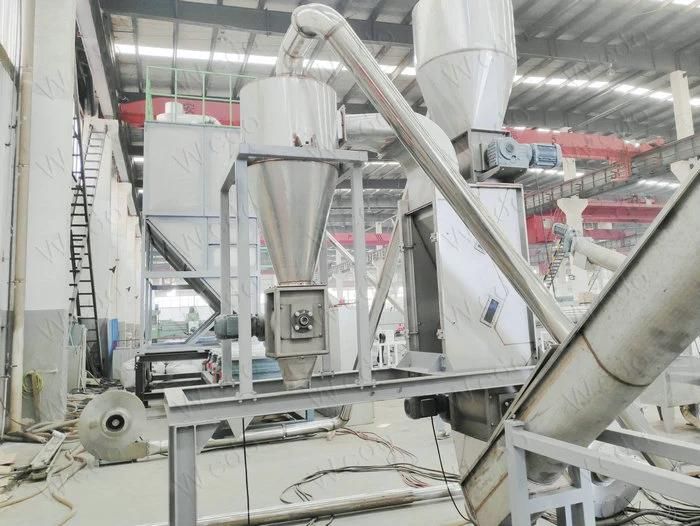

The photos of plastic recycling machine Zig Zag Separator machine, air separator machine


This plastic recycling machine Zig Zag Separator machine, air separator machine pruduced by Wedo machine is learn from most advanced design,The feed material is conveyed onto an airproof item to the separator channel. According to the multiple-crossflow-separating process, ligth material is separated from heavy material. The air flow required for separation is blown through the separation channel from button to top. Light material is carried by the air flow. Heavy material is carried by the air flow. Heavy material falls through the air flow and is discharged through the separator base. The light material transported by the air flow to the cyclone gets separated there and is discharged via rotary gate valve. Zig Zag Air Separator Plants are usually operated in recirculation air mode, whereby the cleaned air is returned via blower to the separator base. In case of dusty or moist products the operation of the plant is also possible in partly air circulation or suction mode. The required air flow and pressure is generated by a radial blower.


The model of plastic recycling machine Zig Zag Separator machine, air separator machine:

Model	ZZ5	ZZ10	ZZ15
Capacity	500kg/h	1000kg/h	1500kg/h
Power	5.5kw	7.5kw	11kw

Wedo Produce steps:
Wedo have a fully step for the plastic recycling machine Zig Zag Separator machine, air separator machine producing before packing and shipping, this ensure the plastic recycling machine will delivery in good quality, and custerm will get good machine.




Wedo service:
We do best service for you in plastic recycling machine Zig Zag Separator machine, air separator machine

After this Zig zag separator, zig zag air sifter, zig zag air classifier, our company also supply the following recycling lines of PET plastic pelletizing machine, that can make the PP PE film into PP PE pellets.



Any further about the plastic recycling machine Zig Zag Separator machine, air separator machine, please contact us timely we will give your professional fully support.
