Plastic Profile PE Profile Extrusion Line
GPM Machinery (Shanghai) Co., Ltd.- Product Type：PVC Profile
- Screw：Double-Screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
- Customized：Customized
Base Info
- Model NO.：GSZ, GYF
- Product Name：PVC Plast- Steel Profile Extrusion Line
- Processing Type：Profile Extrusion
- Raw Material：UPVC,HDPE,PC,PP
- Usage：Window,Door,Door Frame
- Motor：Simens
- Inverter：ABB Brand
- Contactor：France Schneider Contactors
- Temperature Control：Japan Omron
- Output：60- 1000kg,H
- Motor Power：15kw-160kw
- Transport Package：PE Film Winding Wrapping
- Specification：110mm-400mm
- Trademark：GPM
- Origin：Shanghai
- HS Code：8477209000
- Production Capacity：500 Sets,Year
Description
Conical twin-crew extruder technical specification for Plastic Profile PE Profile Extrusion LineModel Screw Diameter(mm) Main Moter(kw) Output Capacity(kg/h) GSZ-45 45/100 15/18.5 60/80 GSZ-51 51/105 18.5/22 80/110 GSZ-55 55/110 22/30 120/150 GSZ-65 65/132 37/45 280/350 GSZ-80 80/156 55/77 380/450 GSZ-80A 80/173 75 500/650 GSZ-92 92/188 110/132 700/850 GSZ-95 95/196 132/160 1000
Downstream line technical specification Model Max.product width(mm) Total power(kw) Water Cooling(m³/h) GYF110 110 16 4 GYF240 240 21-32 7 GYF300 300 21-32 7 GYF400 400 21-32 7
For choosing the proper machine and saving your time, please read these bellow guides carefully
1). What kinds of plastic machinery do you need ? Or what material do you want to process?
2). What capacity do you want? (kg/h )
3). What is the max and min size of the finish products .For example, the width and thickness of sheet(mm)?
4) What is the electric device you need ? Siemens, Omron or domestic ?
5) When do you want the machine? (Times for delivery)
6) Other requirements about the machine you want.
if you are interested in this machine ,please contact me:
mob : +86 13915723896 ( or +86 13817556740 )
Jeremy He

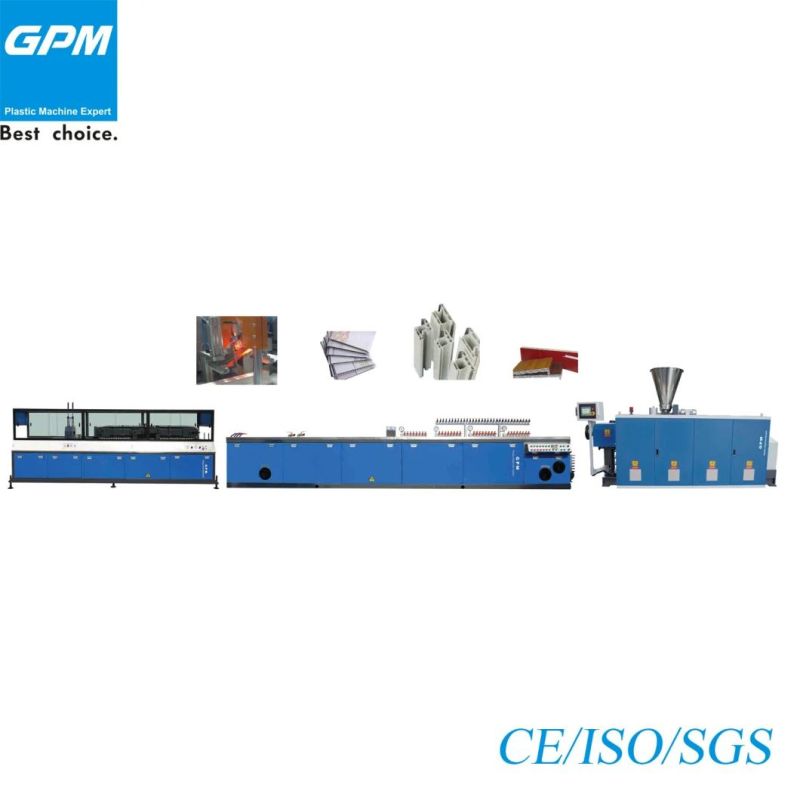

Product Display of Plastic Profile PE Profile Extrusion Line
Special configuration:

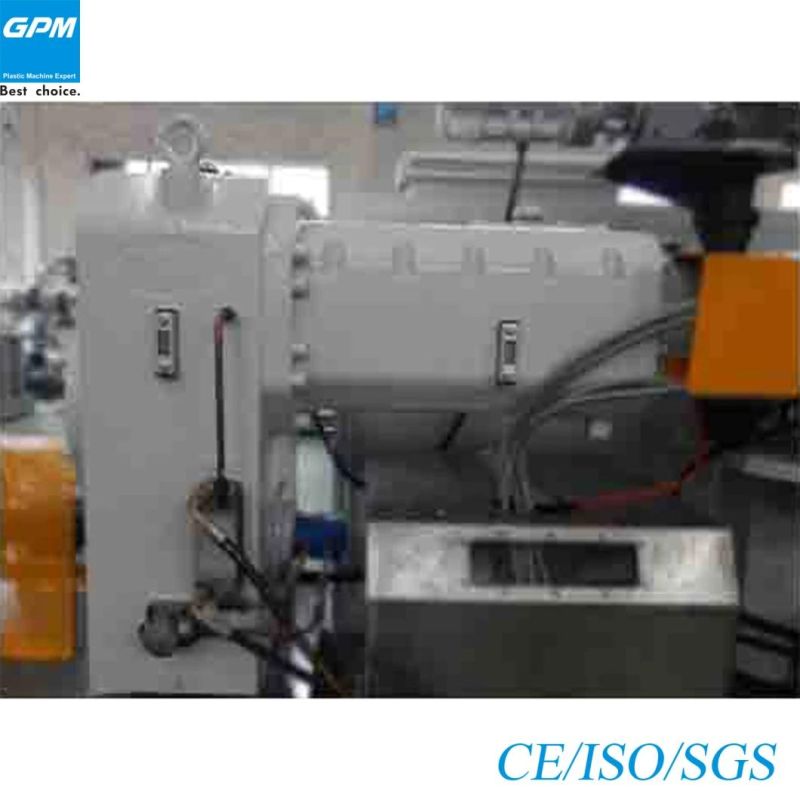

1. GearBox
High efficiency single screw extruder , high output.

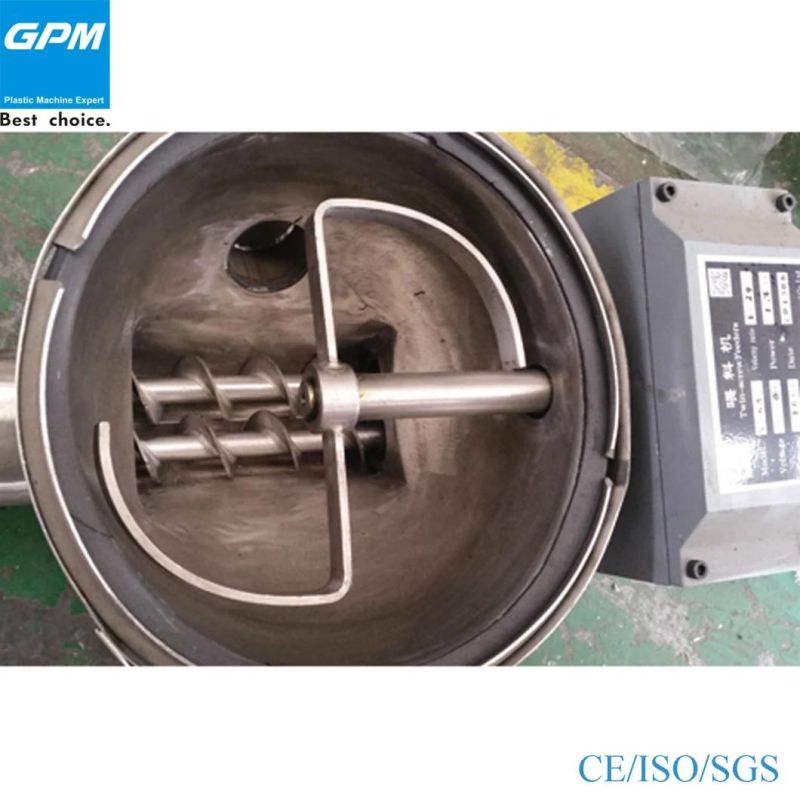

2.Feeding mechanism
Parallel twin-screw feeder, suitable for the feeding of powder and mixture .

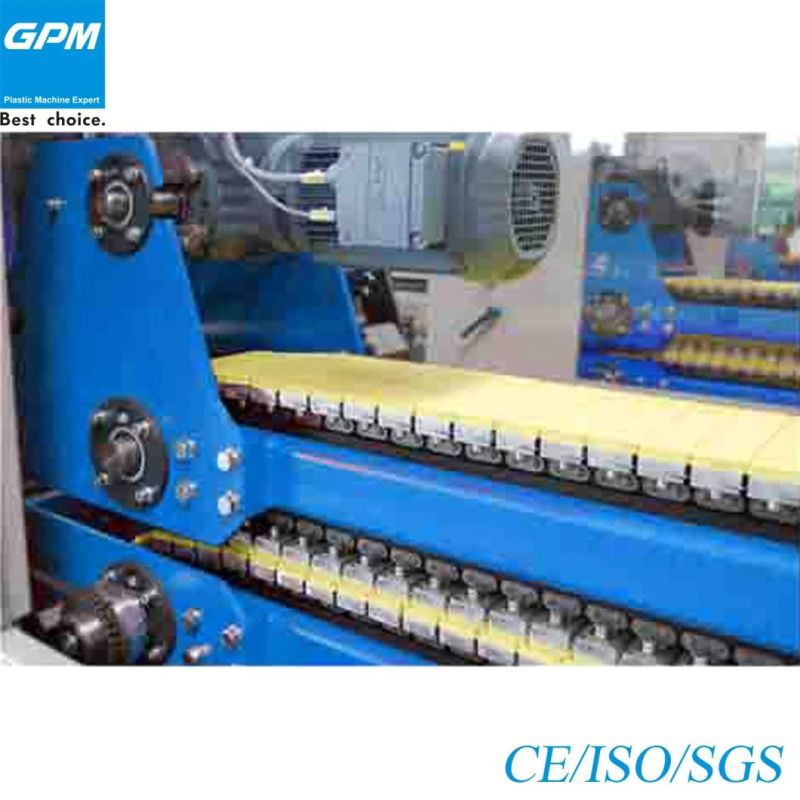

3.Haul-off
New-designed haul-off structure , strengthen the design of torque .

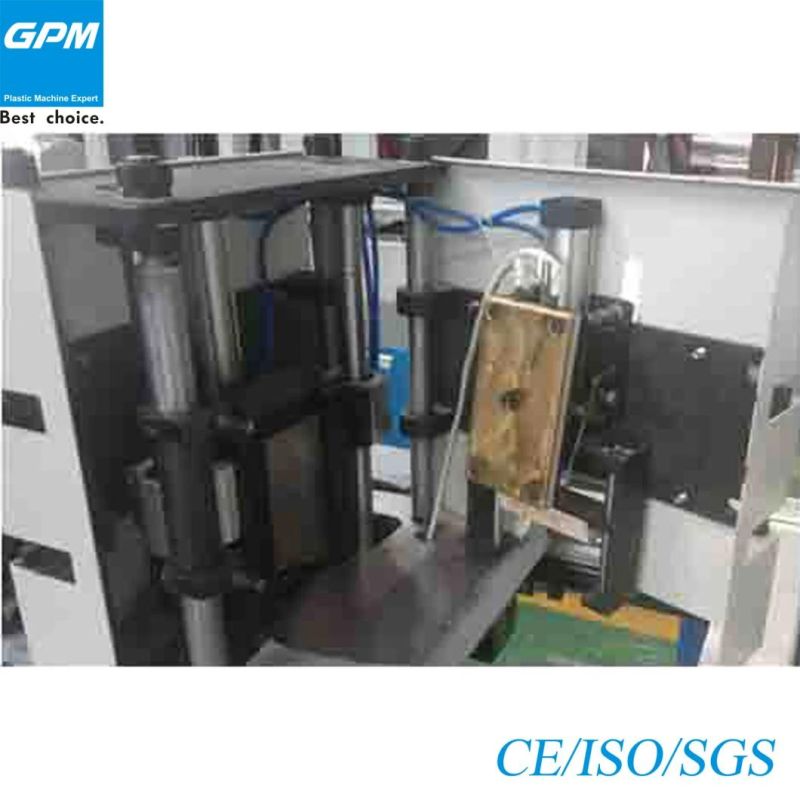

4.No-dust Cutter
High precision cutting, no dust and low noise.
For choosing the proper machine and saving your time, please read these bellow guides carefully
1). What kinds of plastic machinery do you need ? Or what material do you want to process?
2). What capacity do you want? (kg/h )
3). What is the max and min size of the finish products .For example, the width and thickness of sheet(mm)?
4) What is the electric device you need ? Siemens, Omron or domestic ?
5) When do you want the machine? (Times for delivery)
6) Other requirements about the machine you want.
if you are interested in this machine ,please contact me:
mob : +86 13915723896 ( or +86 13817556740 )
Jeremy He
Product Display of Plastic Profile PE Profile Extrusion Line
Special configuration:
1. GearBox
High efficiency single screw extruder , high output.
2.Feeding mechanism
Parallel twin-screw feeder, suitable for the feeding of powder and mixture .
3.Haul-off
New-designed haul-off structure , strengthen the design of torque .
4.No-dust Cutter
High precision cutting, no dust and low noise.
