CE Certificate Single Color Multi-Color PVC/TPR Pencil Eraser Making Machine
Hangzhou Candid I/E Corp. Ltd.- Type：Pipe Extruder
- Plastic Processed：PVC,TPR
- Product Type：Granulating Extruder
- Feeding Mode：Multiple Feed
- Assembly Structure：Integral Type Extruder
- Screw：Single-Screw
Base Info
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Non-Computerized
- Capacity：120kg,H
- Total Power：30kw
- Real Consumption of Electricity：7-8kw
- Max Size of Eraser：Diameter 50mm
- Suitable Material：PVC and TPR Granule
- Max Color：6
- Screw Diameter：90mm
- Screw Length：1800mm
- Barrel Cooling Way：Water Cooling+ Air Cooling
- Transport Package：in Nude or Wooden Case
- Specification：10m (L)*2.5m (W)
- Trademark：CANDID
- Origin：China
- HS Code：84633000
Description
Output
120kg/h
Screw quantity
1
Barrel heating zones
4
Heating power
15kg
Motor power
11kw
Barrel cooling way
Water +air cooling
Temperature control
0-110ºC
Current source
380V 3P 50Hz
Size of water cooling channel
400*380*800mm
Hauling-off speed
Max 700m/h
FAQ
Q: What is the raw material for eraser?
A: The raw material for eraser is PVC or TPR granule.
Q: Can you supply raw material?
A: Yes, we can supply raw material with different grade.
Q: What is electrical supply of machine?
A: Our machine normally is 380V, 3P, 50Hz, but it could be as your requirement.
Q: Could one set of machine make all color eraser?
A: No, single color machine for single color eraser; Multiple color machine for multiple color eraser.
Q: What is eraser making machine woking progress?
A: The progress as blow: Raw material >> Extruding>> Cooling>>Hauling>>Cutting>>Packing>>Eraser
Q: What is the power of eraser making machine?
A: Our eraser making machine is with different power, please refer to our quotation.

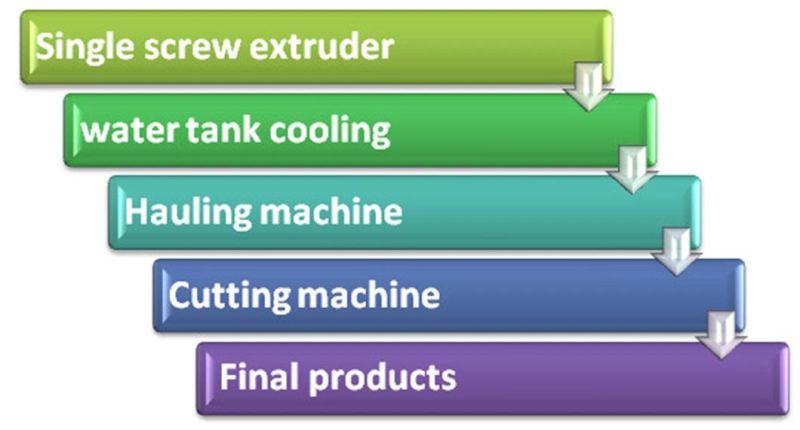

Process

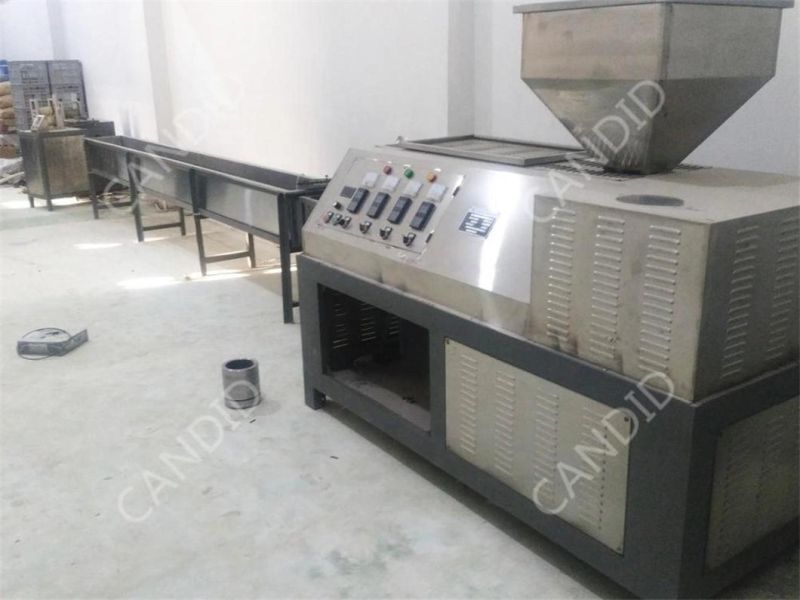

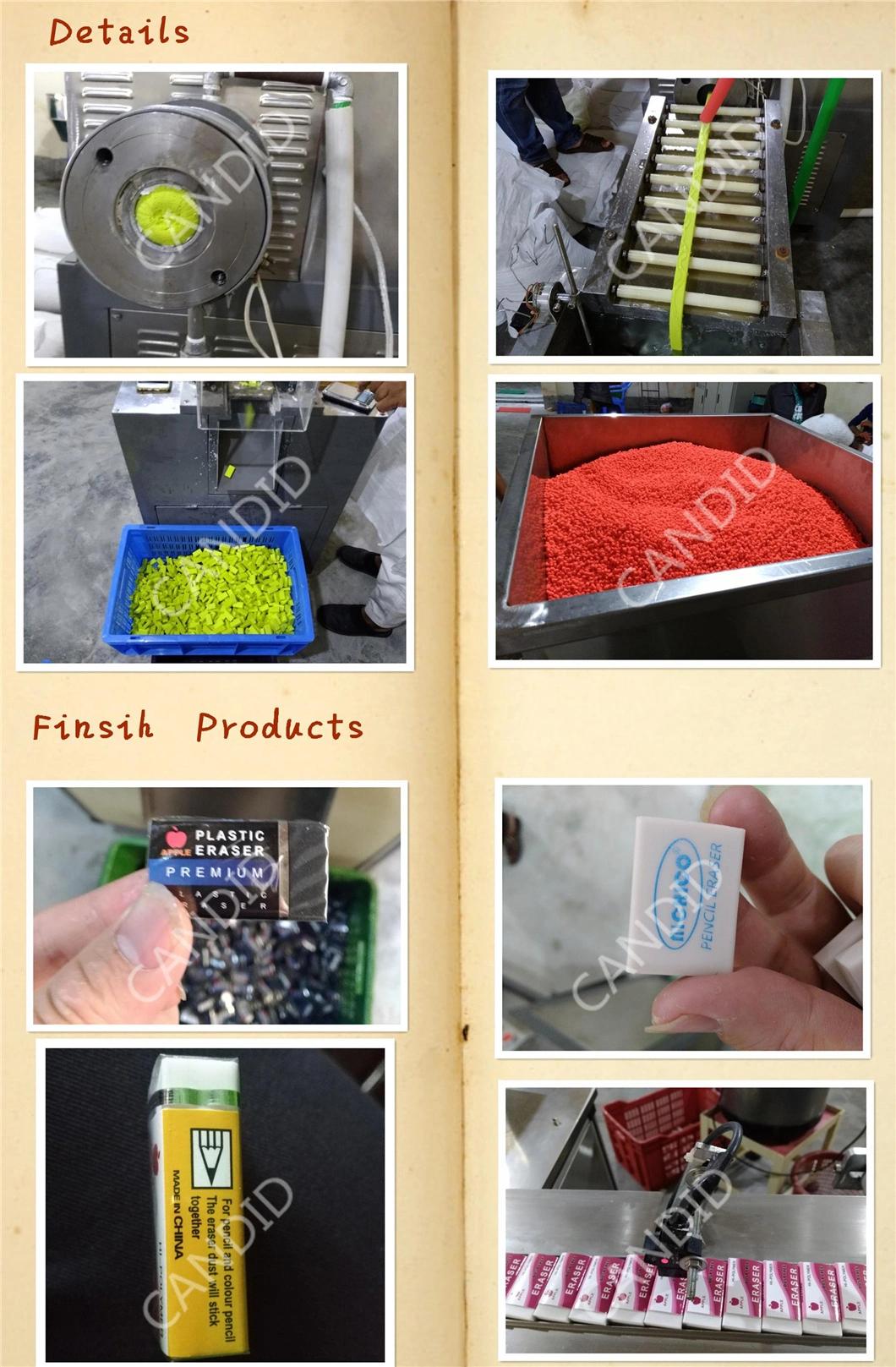

Product show
