• Model NO.：QS-MN50
• Machine Weight：4T
• Certification：CE, ISO9001:2008, UL, QS
• Max.Extrudsion Output：HD50kg,H, Ld60kg,H
• Die Size：60mm
• Film Width：100-600mm
• Film Thickness：0.008-0.1mm
• Transport Package：Seaworthy
• Specification：CE SGS
• Trademark：QUEENSENSE
• Origin：China
• HS Code：847780000
• Production Capacity：2000PCS,Per Year

Basic Info.

Model NO. QS-MN50 Machine Weight 4T Certification CE, ISO9001:2008, UL, QS Max.Extrudsion Output HD50kg/H, Ld60kg/H Die Size 60mm Film Width 100-600mm Film Thickness 0.008-0.1mm Transport Package Seaworthy Specification CE SGS Trademark QUEENSENSE Origin China HS Code 847780000 Production Capacity 2000PCS/Per Year

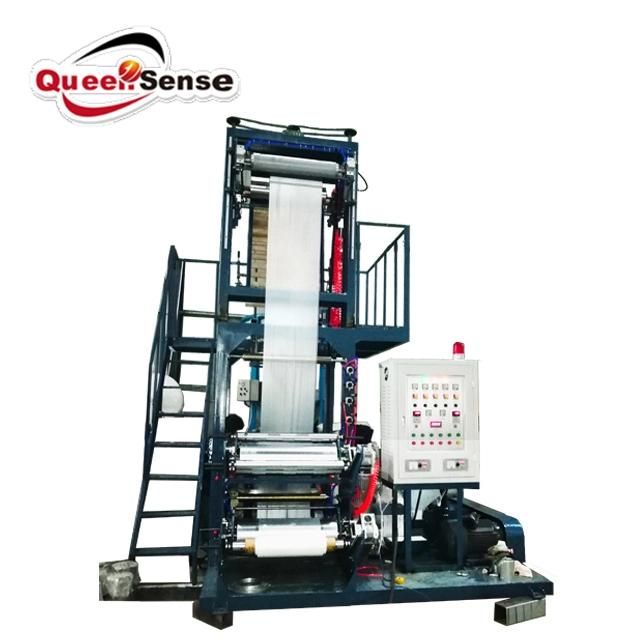

Product Description

Performance Introduction:
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrided and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Optional equipment:

Optional equipment:

1). Auto load
2). Air compressor
3). Special die
4). Die rotary device
5). Bouble sides winder
6). Up and down

 Main Technical Variables

Model	QS-MN45	QS-MN50
Screw Diameter	45 mm	50 mm
Max.folding width of film	100-500 mm	100-600 mm
Single-side thickness of film(mm)	0.01-0.01 mm	0.01-0.01 mm
Max. output	30kg/h	40kg/h
Screw ratio L/D	28:1	28:1
Main motor power (kw)	7.5-11 kw	11-15 kw
Haul-off motor Power (kw)	1.1 kw	1.1 kw
Heating power(kw)	11kw	13 kw
Overall diameter(L*W*H)(mm)	3800*900*3000 mm	5500*1000*3500 mm
Weight(T)	1.5T	2T
