• Model NO.：FG4
• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Cavity Number：4
• Hourly Outpu：7200bottles,Hour(@500ml)
• Working Power：26kw
• High Pressure Require：6m3,30bar
• Blowing Valve：American Parker
• Electrical Element：Mistubishi,Siemens
• Transport Package：in Wooden Case
• Specification：CGF
• Trademark：Faygo
• Origin：Zhangjiagang, China
• HS Code：1501000000
• Production Capacity：50 PC ,Year
• Package size per unit product：360.00cm * 110.00cm * 240.00cm
• Gross weight per unit product：3500.000kg

Cavity number4 cavity 6 cavity8 cavityCapacity7200BPH9600BPH12000BPH



II. Technical Features:
1. Servo driving and cam linking movement blowing section:
The unique cam linking system integrates mold-opening, mold-locking and bottom mold-evevating in one movement, equipped with high speed servo motor, which greatly shortens the blowing cycle and accelerates the spped.
2. Minimize distance of heating heads,maximize the heating efficiency.

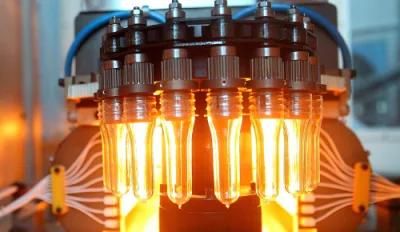

Heater distance in the heating oven is minimized to 38.1mm, compared with the conventional heating oven it can save more than 30% consumption.Equipped with the air cycling system and redundant heating discharge system it ensures constant temperature in the heating zone.
3. Efficient and soft perform inlet system,ensure the spped and preform protction.
By rotary and soft preform loading system, the speed of preform feeding is ensured, meanwhile, the preform neck is well protected.
4. Modularized design conception, convenient for maintenance and changing changeovers
The machine adopts modularized design concept to make it convenient and cost-saving for the maintenance and changing changeovers.

One Stop Station Services
1) Stand-by engineers team to provide overseas installation and commissioning service.
2) 1 year warranty. During warranty, we provide free of charge for repairing cost.
3)  Lifetime maintenance. After-sales department can provide life long maintenance service.
