• Model NO.：ZIP-500
• Machine Weight：1.8t
• Certification：CE, ISO9001:2008
• Color of Film Blowing Machine：Light Gray and Green or Blue
• Material of Film Blowing Machine：Steel
• Temp Controller for Film Blow Machine：China Brand or Omron
• Inverter for Film Blowing Machine：China Brand or Panasonic
• Transport Package：Film Blow Machine Wrap with Film, Fix in Container
• Specification：film blow machine was according to CE standard
• Trademark：Y. E
• Origin：Zhejiang
• HS Code：84773090
• Production Capacity：20sets Film Blowing Machine Per Month

Basic Info.

Model NO. ZIP-500 Machine Weight 1.8t Certification CE, ISO9001:2008 Color of Film Blowing Machine Light Gray and Green or Blue Material of Film Blowing Machine Steel Temp Controller for Film Blow Machine China Brand or Omron Inverter for Film Blowing Machine China Brand or Panasonic Transport Package Film Blow Machine Wrap with Film, Fix in Container Specification film blow machine was according to CE standard Trademark Y. E Origin Zhejiang HS Code 84773090 Production Capacity 20sets Film Blowing Machine Per Month

Product Description

Use:
The machine is designed to attach the PE film (1 or 2pcs film sheet) to zipper film, then the 3layer film or 4 layer film can be cut into bag on zipper bag sealing cutting machine. The finished bag was widely used in medical.
Speed:10-20m/min.
Please contact us for detail of the equipment by mail or phonecall, Thanks.

Relative machine: Zipper film blowing machine
Use:

It is an ideal zipper bag film blowing machine to produce zip lock film, with red line, with color strip. Zipper bag are widely used in food packing, medicine, hardwears and commodity. They can be opened and reclosed easily and sealed tightly.
Material: LDPE, LLDPE

Featrues:

1. Extruder for Red line on opening avaiable.
2. Extruder for color strip avaiable. NEW Extruder can be used for color zipper and red line.
3.Frequency converter speed control

Main Parameters:

Type	ZIP-55	ZIP-65
Max. bag width	450mm	550mm
Screw diameter	55mm	65mm
L/D	28:1	28:1
Max.Capacity	30kgs/hr	40kgs/hr
Material	LDPE, LLDPE	LDPE, LLDPE
Power volatge	AC380V,50HZ	AC380V,50HZ
Film thickness	0.03-0.1mm	0.03-0.1mm
Weight	1800kg	2000kg
Overall Dimension (L*W*H)	6000*1600*4500mm	6000*1800*4500mm

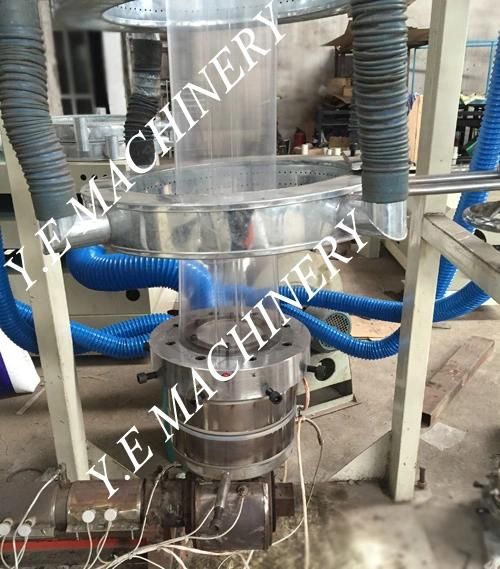

Zip lock Film blowing machine details:

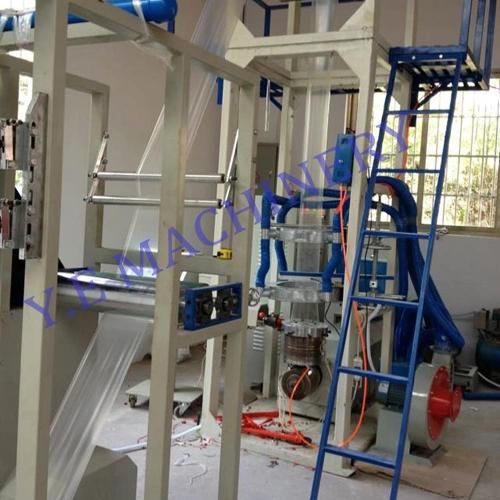

Zipper film blowing machine in customer's plant on production:

Zipper bag sample:
