• Model NO.：JY-850STD
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Transport Package：Wooden Case
• Specification：2*1.7*2.5m
• Trademark：JieYang
• Origin：China
• HS Code：8477209000
• Production Capacity：200 Sets,Month

 INJECTION UNIT mmΦ42Φ45Φ48Screw Diameter mm140140140Screw Barrel Route g(oz)176201227Injection Weight(PS) cm3/sec99113129Injection Rate tons5.55.55.5Nozzle Comtact Force kg/cm21027895790Max.Injection Pressure r.p.m0~200Screw Speed Rotation mm210Nozzle Retraction NozzleCLAMPING UNIT tons85Clamping Force mm255Clamping Stroke mm430/230Min.Mold Thickness mm685/485Max.Open daylight mm530*330Distance Between Tie Bars L/Min47Pump Output mm35Ejector  Distance tons1.3Ejector  ForceOTHERS kg/cm2140Max. Hydaulic Pressure  L180Oil Tank Capacity m2.2*1.9*2.7Shipping Measurements(LxWxH) kW5Heater Power mm2*1.7Machine Dimension      mm2.5 tons5.4Machine  Weight

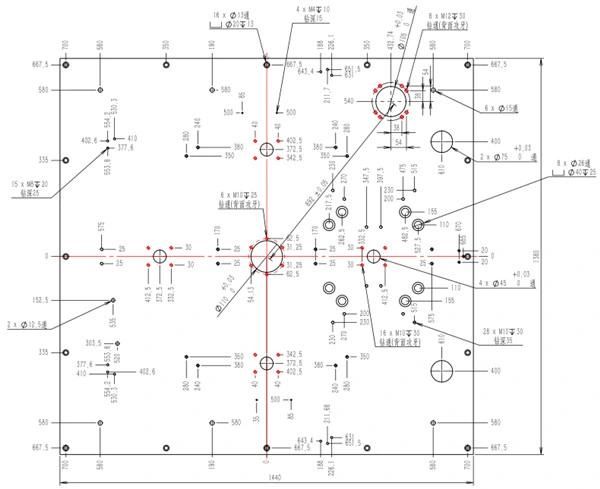

Product Drawing



Factory direct, more size can be customized according to your needs!



Product Features

1)Straight screw ejected assembly.
2)Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3)Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4)Low-pressure closed die assembly can protect the safety of die.
5)Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6)Can be installed a single mold or double shuttle table.

Machine Application

     vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors,  USB cables,auto parts, Plug ,etc.

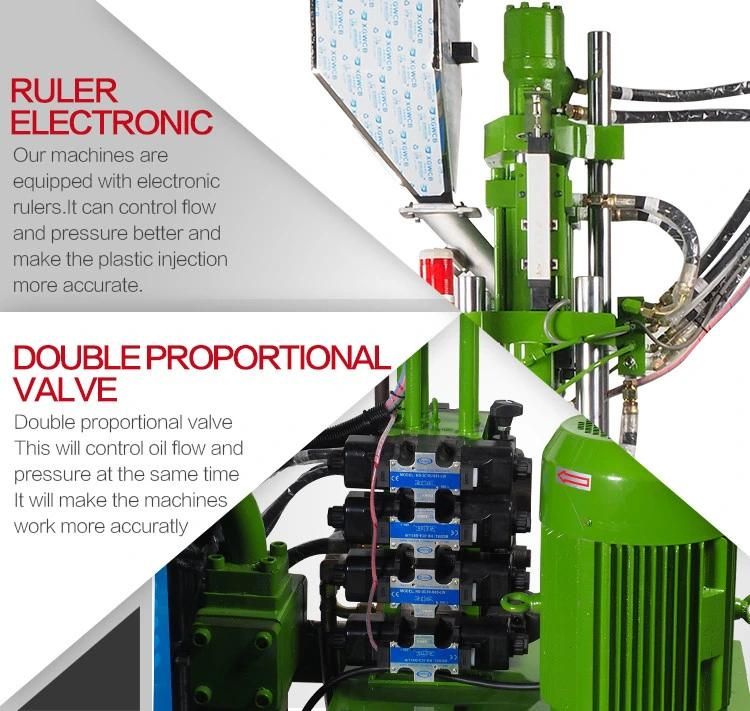

Advantage

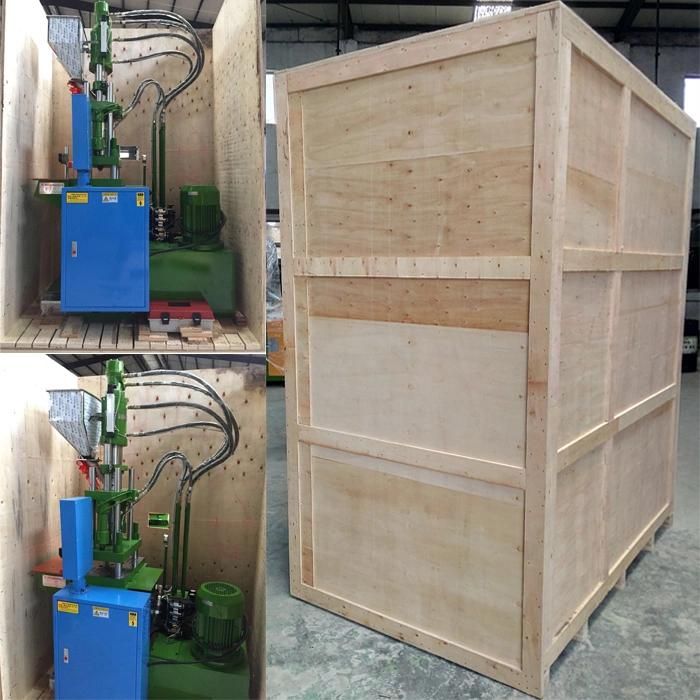

Packaging & Shipping

1.We will arrabge to manufacture the machine the second day after your confirmation.

2.Before shipment,we will check and test the machine carefully.

3.We will send the machine to your designated place in China.Besides,we can help you send the machine to your seaport if you need.

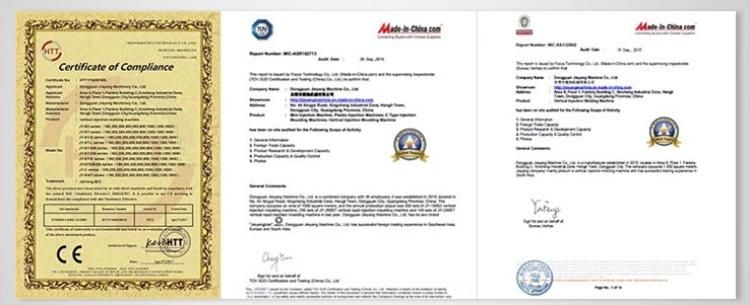

Certifications





Contact us





Our Service

1. 24 hours online and telephone support; Nomatter anytime, anywhere or any question I will reply you as soon as possible.

2. Exclusive and unique solution can be provided to our customers by well-trained and professional engineers and staffs.

3. Engineers and professional technicians keep seeking the new ways to innovate all of our wheel loaders, which could provide you the most competitive products.

4. Global cooperation with distributors, you can get the most convinent after-sale service. Special discount and protection of sales area provided to your distributor.

5. Your success is our business. We will do our best to provide you the most competitive product with high quality and low price.





Please contact us,we will provide a professional production plan for you.
