PE/PP/PVC Single Wall Corrugated Pipe Extrusion Line
Wedo Machinery (Zhangjiagang)Co.,Ltd.- After-sales Service：Engineer Commissioning
- Warranty：15 Months
- Type：Pipe Extruder
- Plastic Processed：PVC
- Product Type：Extrusion Molding Machine
- Feeding Mode：One Feed
Base Info
- Model NO.：single wall corrugated pipe machine
- Assembly Structure：Separate Type Extruder
- Screw：Twin-Screw
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Name：Conical Double-Screw Plastic Extruder
- Color：Custom-Made
- Motor：Siemens
- Inverters：ABB
- Handle：PP PE PVC ABS PS
- Core Part：PVC Extruder
- Feeding Type：Screw Conveyor
- City：Zhangjiagang
- Screw Type：38CrMoAl
- Material Transfer：Screw Loader
- Machine Material：Hard Steel
- Cutting Type：Saw
- Temperature Control：Omron
- Contactor：Schneid
- Apply：Conical Double-Screw Plastic Extruder
- Transport Package：Sea Packing
- Specification：125kg,h
- Trademark：WEDO
- Origin：China
- HS Code：847780000
- Production Capacity：10 Sets
Description
Conical twin screw extruderSpecification/Model SJZ45/90 SJZ51/105 SJZ65/132 SJZ80/156 SJZ92/188 Screw diameter 45/90 51/105 65/132 80/156 92/188 Ratitional speed of screw 1-45rpm 1-45.5rpm 1-38rpm 1-36.9rpm 1-34.5rpm Main motor power 15kw 22kw 37kw 55kw 110kw Barrel heating power 9.6kw 11.5kw 24kw 36kw 88kw Production capacity 70kg/h 120kg/h 250kg/h 360kg/h 1000kg/h Weight 2500kg 3000kg 4000kg 5000kg 5500kg

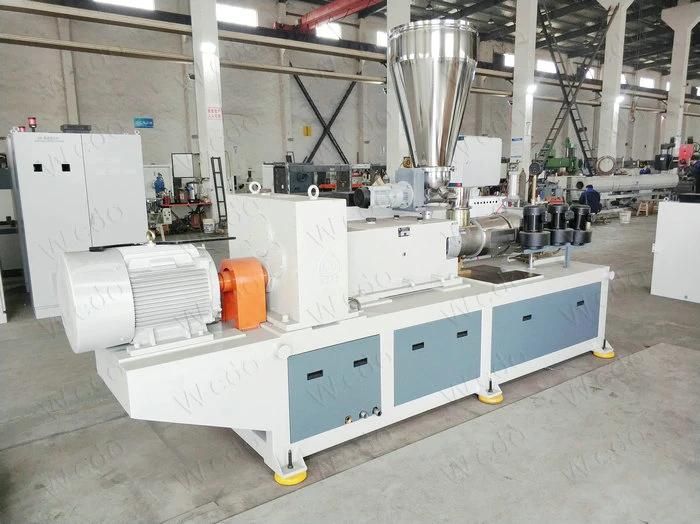

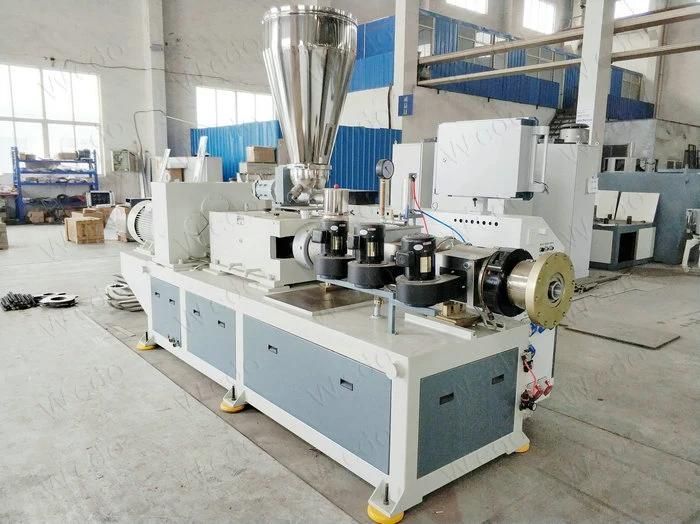

Photos of twin screw extruder machine:
Single Screw Extruder:
Wedo single screw extruder can extrude PP.PE pipe at high speed by changing special barrel.
Computer control or conventional control is optional.
According to customer's requirements, most reasonable screw can be made so as to achieve best plasticity state and material quality.
The screw is made by high precision special digital screw miller; extruding property can be highly harmonized.
It has firstly introduced advanced technique of producing screws with variable pitch and depth, so that the material can be more softly sheared and cut.
The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged.
It can bear larger extruding pressure.
Characteristic of Wedo single screw extruder
1. SJ series single screw Extruder is specially used for thermo plastic like PE PP PB PS PC ABS PMMA.Also can produce the pipe,sheet,board ,bar and extrusion blowing product.
2. Special designed screw and barrel for low abrasion high fusion stable fusion process.
3. Advanced electric control system,different section trouble alarm.
4. Water cooling screw and feeding grooved sleeve gurantee extrusion stable.
5. High performance gearbox system for torque distribution.
6. High efficient and low noise cooling system to make sure low noise working.
Technical Parameter for Wedo single screw extruder :

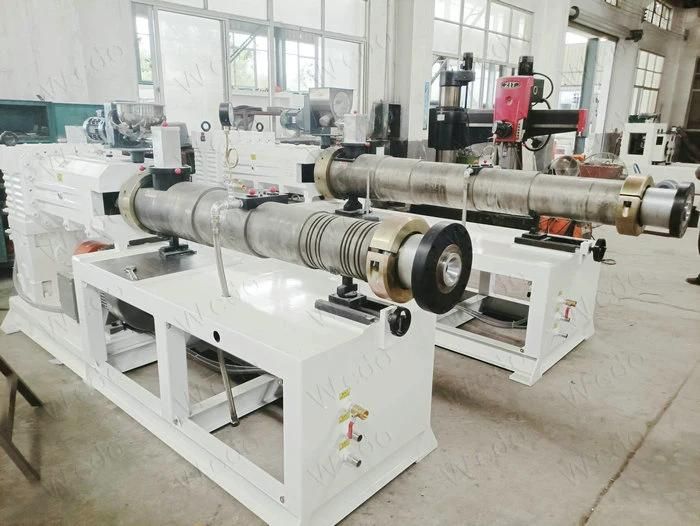

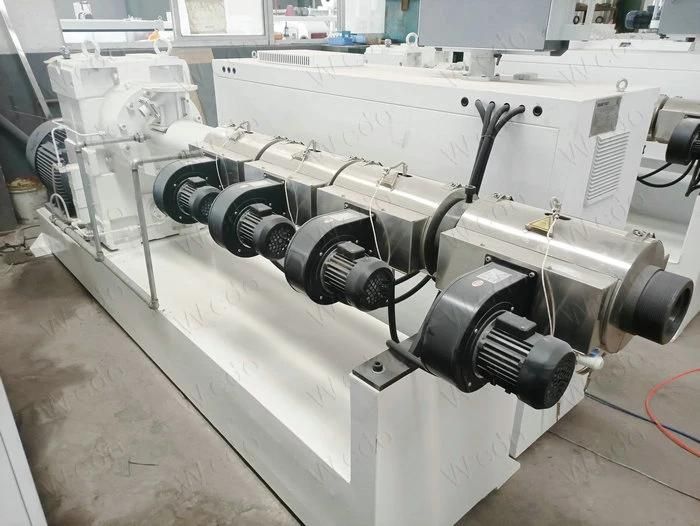

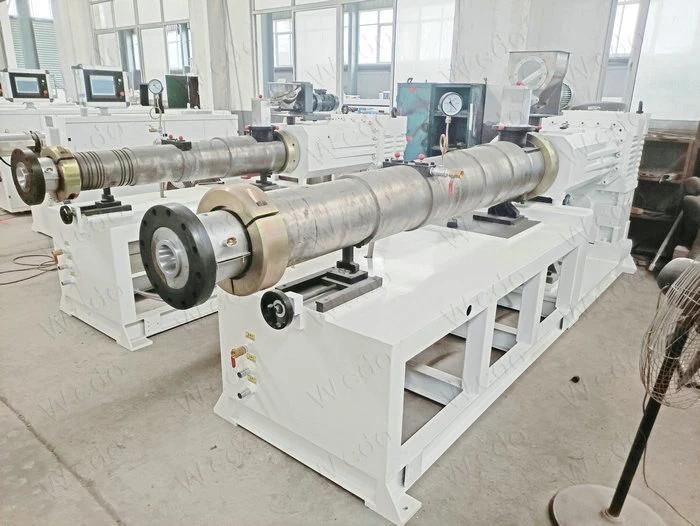

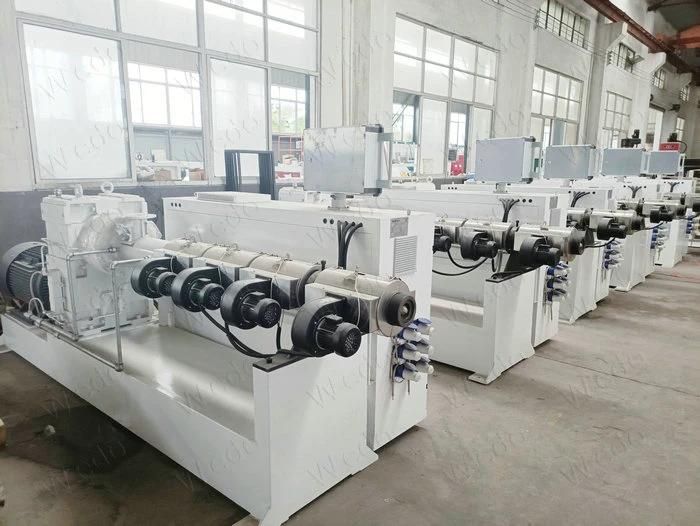

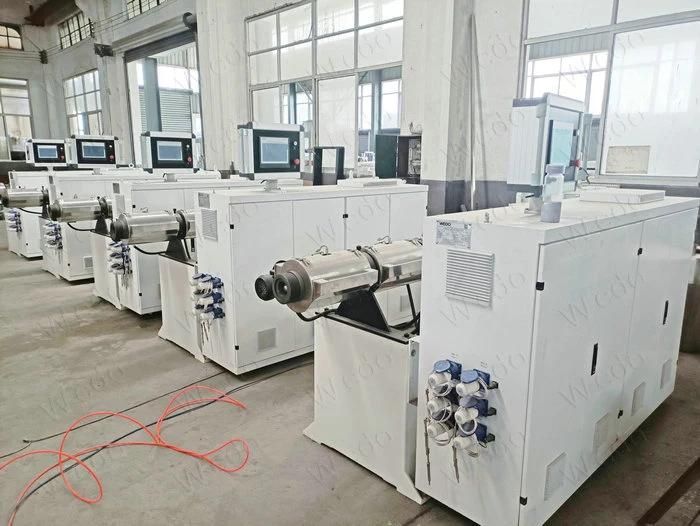

Photos of Wedo single screw extruder :
Wedo Produce steps:
Wedo have a fully step for the plastic extruder machine, PP PE PVC PPR plastic extruder producing before packing and shipping, this ensure the plastic recycling machine will delivery in good quality, and custerm will get good machine.
Wedo service:
We do best service for you in plastic extruder machine, PP PE PVC PPR plastic extruder
Any further about the pe/pp/pvc single wall corrugated pipe extrusion line, please contact us timely we will give your professional fully support.
Photos of twin screw extruder machine:
Single Screw Extruder:
Wedo single screw extruder can extrude PP.PE pipe at high speed by changing special barrel.
Computer control or conventional control is optional.
According to customer's requirements, most reasonable screw can be made so as to achieve best plasticity state and material quality.
The screw is made by high precision special digital screw miller; extruding property can be highly harmonized.
It has firstly introduced advanced technique of producing screws with variable pitch and depth, so that the material can be more softly sheared and cut.
The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged.
It can bear larger extruding pressure.
Characteristic of Wedo single screw extruder
1. SJ series single screw Extruder is specially used for thermo plastic like PE PP PB PS PC ABS PMMA.Also can produce the pipe,sheet,board ,bar and extrusion blowing product.
2. Special designed screw and barrel for low abrasion high fusion stable fusion process.
3. Advanced electric control system,different section trouble alarm.
4. Water cooling screw and feeding grooved sleeve gurantee extrusion stable.
5. High performance gearbox system for torque distribution.
6. High efficient and low noise cooling system to make sure low noise working.
Technical Parameter for Wedo single screw extruder :
| Extruder | 65/30 | 65/33 | 75/30 | 75/33 | 90/33 | 90/33 | 120/33 | 150/33 |
| Motor power (KW) | 30/37 | 55/75 | 75/90 | 90/110 | 132 | 160 | 280 | 335 |
| Capacity (Kg/h) | 60-130 | 100-150 | 200-300 | 220-350 | 300-400 | 350-450 | 500-600 | 700-900 |
| Max. Speed | 15m/min | 10m/min | 8m/min | 6m/min | 3m/min | 1.2m/min | 1.0m/min | 0.8m/min |
Photos of Wedo single screw extruder :
Wedo Produce steps:
Wedo have a fully step for the plastic extruder machine, PP PE PVC PPR plastic extruder producing before packing and shipping, this ensure the plastic recycling machine will delivery in good quality, and custerm will get good machine.
Wedo service:
We do best service for you in plastic extruder machine, PP PE PVC PPR plastic extruder
Any further about the pe/pp/pvc single wall corrugated pipe extrusion line, please contact us timely we will give your professional fully support.
