ABA High Speed Two Layers Rotary Die Head Film Blowing Machine
WENZHOU E-SHION MACHINERY CO., LTD.- Type：Multi-Layer Co-extrusion Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：1000mm
- Screw Diameter：55X2
- Automation：Non-Automatic
- Computerized：Non-Computerized
Base Info
- Machine Weight：4T
- Certification：CE
- Screw Material：Double Alloy
- Die Head：Fixed Die ,Rotary Head
- Heater Material：Cast Aluminum ,Double Alloy
- Motor：China , Siemens Is Optional
- Inverter：China ,Delta or Panasonic Is Optional
- Electric Parts：Schneider ,Panasonic ,Chint
- Temperature Control：Omron
- Gear Box /Reducer：Shuguang ,Hangzhou Weili
- Winder：Single , Double ,Automatic
- Air Ring：Double-Lip Air Ring
- Transport Package：Plastic Film ,Bubble Film
- Trademark：E-SHION
- Origin：China
- HS Code：8477309000
- Production Capacity：100sets,Year
Description
Model
SJ-45×2D/FM1000
SJ-50×2D/FM1200
SJ-55×2D/FM1500
Screw Diameter
2×45mm
2×50mm
2×55mm
Screw Ratio
L/D30:1
L/D30:1
L/D30:1
Screw Speed
12-120r/min
12-120r/min
12-120r/min
Output of Single-desk Extrude Machine
75kg/h
100kg/h
120kg/h
Power of Main Motor
2×11kw
2×15kw
2×15kw
Caliber of Film Head
Φ200-250mm
Φ250-300mm
Φ300-350mm
Rotational Mode of Machine Head
Continuous rotate
Continuous rotate
Continuous rotate
Single-sided Thickness of Film
0.02-0.10mm
0.02-0.10mm
0.02-0.10mm
Max. Folding Width of Film
1000mm
1200mm
1500mm
Total Power
42kw
53kw
65kw
Weight of Machine
3500kg
4500kg
5200kg
Overall Dimensions(L×W×H)
4200×2200×4600mm
4600×2400×5000mm
5200×2700×6000mm
If you need other film bolwing machine. Please click here
Machines in details:
Double layer film blowing machine can equip with rotary die head and manual or automatic double rewinder.

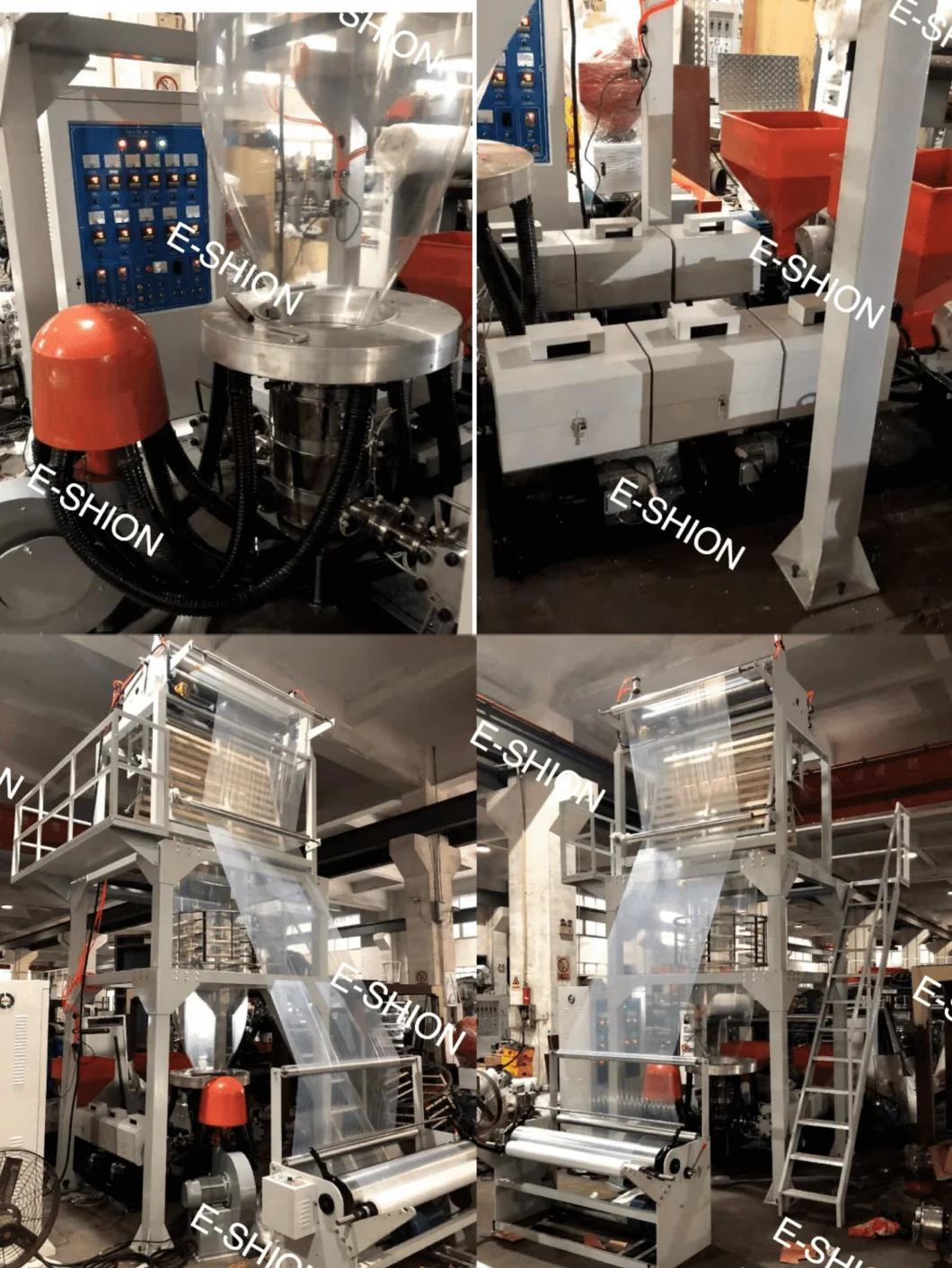

Machines in our workshop :
