• Model NO.：PL
• Engagement System：Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Screw Design：Single Screw
• Screw Diameter：25mm, 35mm, 45mm
• Color：Customized
• Cooling Type：Water Cooling
• Raw Material：Pet, Peek, PLA, PC, ABS, Nylon
• Final Product：Filament
• Usage：3D Printer Filament Extrusion
• Filament Dia.：1.75-3mm
• Tolerance Control：0.02-0.03mm
• One Spool Weight：About 1kg
• Whole Line Length：12.5meters
• Whole Line Weight：2t
• Installed Power：Around 20kw
• Main Motor Power：5.5kw
• Capacity：20-30kg,H
• Transport Package：Standard Pacakge
• Specification：It depends
• Trademark：Plastar
• Origin：China
• HS Code：84772090
• Production Capacity：1000sets,Year

Basic Info.

Model NO. PL Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Screw Design Single Screw Screw Diameter 25mm, 35mm, 45mm Color Customized Cooling Type Water Cooling Raw Material Pet, Peek, PLA, PC, ABS, Nylon Final Product Filament Usage 3D Printer Filament Extrusion Filament Dia. 1.75-3mm Tolerance Control 0.02-0.03mm One Spool Weight About 1kg Whole Line Length 12.5meters Whole Line Weight 2t Installed Power Around 20kw Main Motor Power 5.5kw Capacity 20-30kg/H Transport Package Standard Pacakge Specification It depends Trademark Plastar Origin China HS Code 84772090 Production Capacity 1000sets/Year

Product Description

3D Printer Filament Extrusion Line

3D ABS PLA  filament & typing Strips are mainly used for 3D Printer.

The main products of the 45mm plastic filament extruding machine for 3d printing  : 1.75mm ABS/ PLA 3D Filament & Typing Strips.

3D printer filament extrusion line consists of single screw extruder, immersion bath type water tank, haul-off, cutting machine etc,its control system consists of intelligent temperature control table,imported electrical components and converter. Main feature of this line: stable extrusion, good plasticizing effect, high degree of control precision, convenient operation etc.



3D printing technology is the latest printing technology, to meet the demand for 3D printer, we specially designed ABS PLA Filament Extruder for 3D Printing  . The main material are ABS and PLA.

Features

(1) High strength, high stiffness, good toughness;

(2) Density is small, when printing larger volume model lighter, save money;

(3) Cost-effective, can be processed in wide range temperature;

(4) 1 kg /plastic spool packaging, can be automatic feed;

(5) To be applied to a variety of 3D printer;

(6) No Bubble;

(7) No block nozzle, good stick hot bed;

(8) Low shrinkage, thermoforming dimensional stability.


The features of abs/pla filament:

ABS Filament:

1. 1.       specification: 1.75mm, 3.0mm
2. 2.       vacuum packing: net weight 1kg
3. 3.       color : all color can be available
4. 4.       working tempeture: 200-270 °C

PLA Filament:

1. 1.       specification: 1.75mm, 3.0mm
2. 2.       vacuum packing: net weight 1kg
3. 3.       color : all color can be available
4. 4.       working tempeture: 180-240 °

Price Recap 3D Printer Monofilament line:
(1) 25mm, 30:1 L/D extruder:
(2) 1.75mm Strand die and calibration plates:
(3) 3meter cooling water bath with Calibration:
(4) Caterpillar Haul Off unit:
(5) Wind up Station, Variable Speed

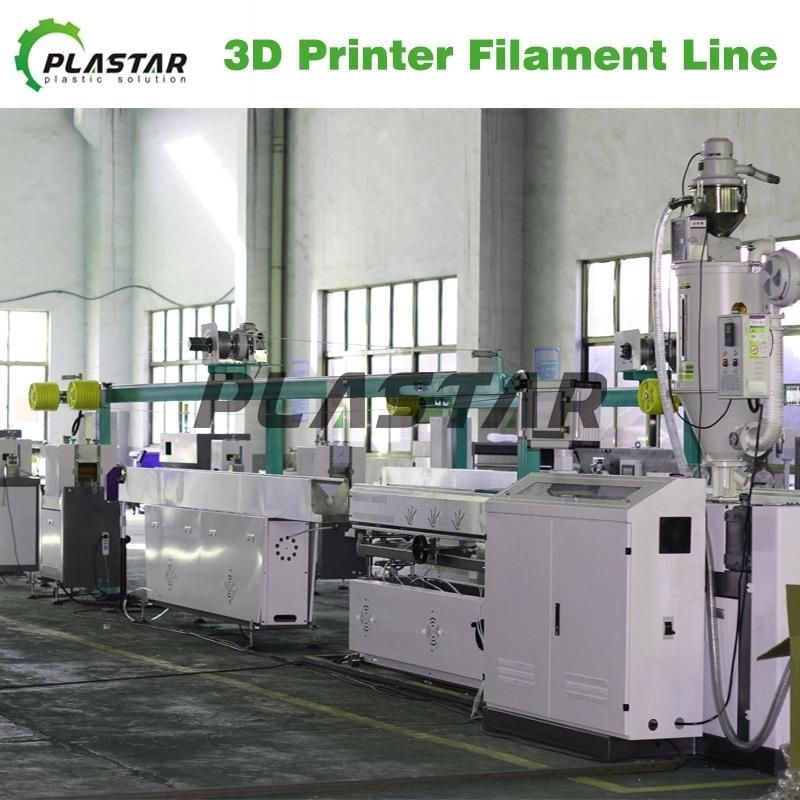

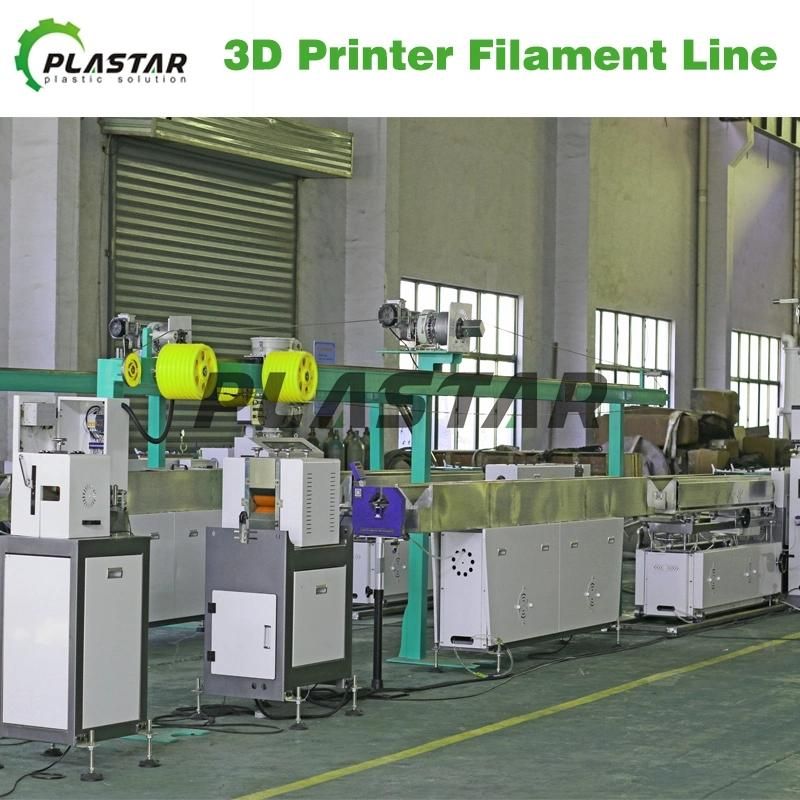

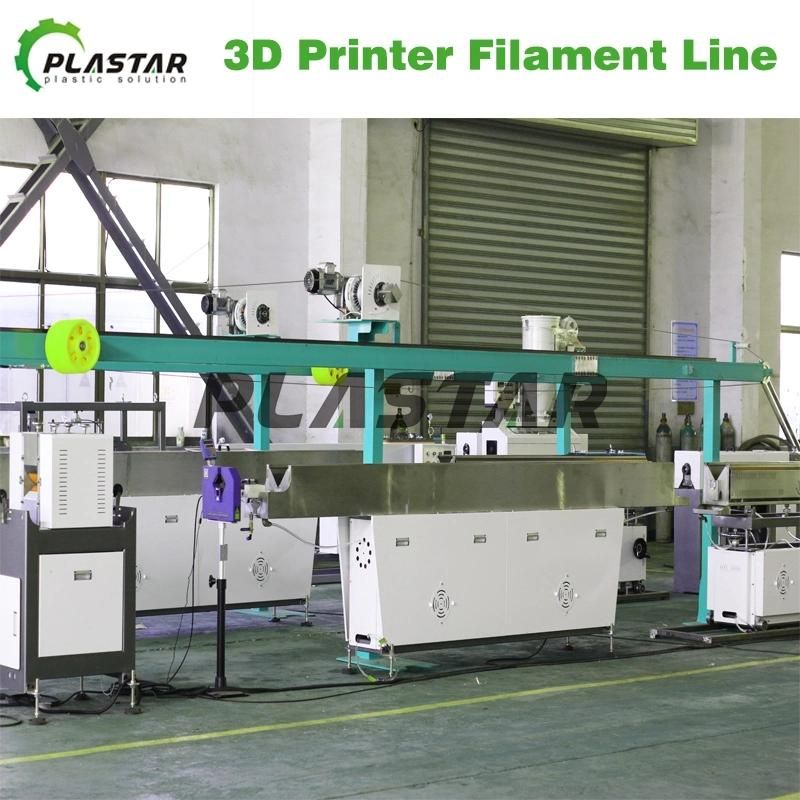

Machine pictures for reference:







Company introduction:

Zhangjiagang Plastar Machinery Co.,ltd. is the professional manufacturer for kinds of plastic machines, such as 3D printer filament extruder, plastic pipe extrusion line, plastic profile extrusion line, waste plastic recycling machine, plastic crusher & Shredder and plastic process auxiliary machines, etc.

The target of our company is to offer the best quality machines to the customers from all over the world. With the advanced technology, experienced engineers and skilled workers, we have the capability to manufacture specific machines according to customer's requirement.

Excellent quality and professional service is the promise made by PLASTAR Machinery  to new and old friends. We are looking forward to establishing the good cooperation relationship with you on the basis of mutual benefits.



If you have further inquiry,please contact with us at any time!
