• Model NO.：BSF-2513A
• Max Forming Height：500mm
• Function：Preheating Oven+Vacuum Press
• Operation：Pneumatic
• Suitable Material：Acrylic , PVC , PP ,ABS, Corian etc
• Material Thickness：0-20mm
• Vacuum Pump Output：60cbm,H
• Temperature Control：Pid Regulation
• Heating Plate：Anodized Aluminum
• Max Forming Pressure：9t,M2
• Voltage：380V 50Hz 3p
• Net Weight：750kgs
• Transport Package：Standard Export Package Which Can Protect Machine
• Specification：CE
• Trademark：baoyuantong
• Origin：Shandong, Weifang
• HS Code：8477401000
• Production Capacity：80sets,Month

Basic Info.

Model NO. BSF-2513A Max Forming Height 500mm Function Preheating Oven+Vacuum Press Operation Pneumatic Suitable Material Acrylic , PVC , PP ,ABS, Corian etc Material Thickness 0-20mm Vacuum Pump Output 60cbm/H Temperature Control Pid Regulation Heating Plate Anodized Aluminum Max Forming Pressure 9t/M2 Voltage 380V 50Hz 3p Net Weight 750kgs Transport Package Standard Export Package Which Can Protect Machine Specification CE Trademark baoyuantong Origin Shandong, Weifang HS Code 8477401000 Production Capacity 80sets/Month

Product Description

The thermoforming membrane vacuum presses BSF1325 is designed special for solid surface materials(Corian, Hi Macs, Staron, Hanex, Kerrock and others) preheating and shaping, as well an acrylic material and a
thermoplastic forming. Capacities and sized could also be costomized, this machine combined solution which including functions of two separate machines a vacuum press and the preheating oven, greatly increases its functionality.


Features
1. Temperature control with PID regulation, two-side preheating oven.

2.Heating plate from anodized aluminum.

3.Pneumatic actuator for upper heating plate, high performance.

4.Stainless steel heaters, life of up to 15000 hours.

5.Imported silicone membrane with 700% elasticity, working temperature between -40ºC to 240ºC, long life service.

6.Oil free vacuum pump with capacity 60m³/h.

7.Work table from fire-resisted laminate plate with grooves, ensure the good performance.

Area of application

corian vacuum former/vacuum thermoforming machines
Work table from 12mm HPL board;
Imported Silicone membrane from Korea 3mm thick, 700% elasticity;
Oil free vacuum pump with capacity 60m3/h;
System of vacuum control and automatic pump stop;
Two-side preheating oven;
Temperature control with PID regulation;
Heating plate from anodized aluminium;
Pneumatic actuator of upper plate of heating.

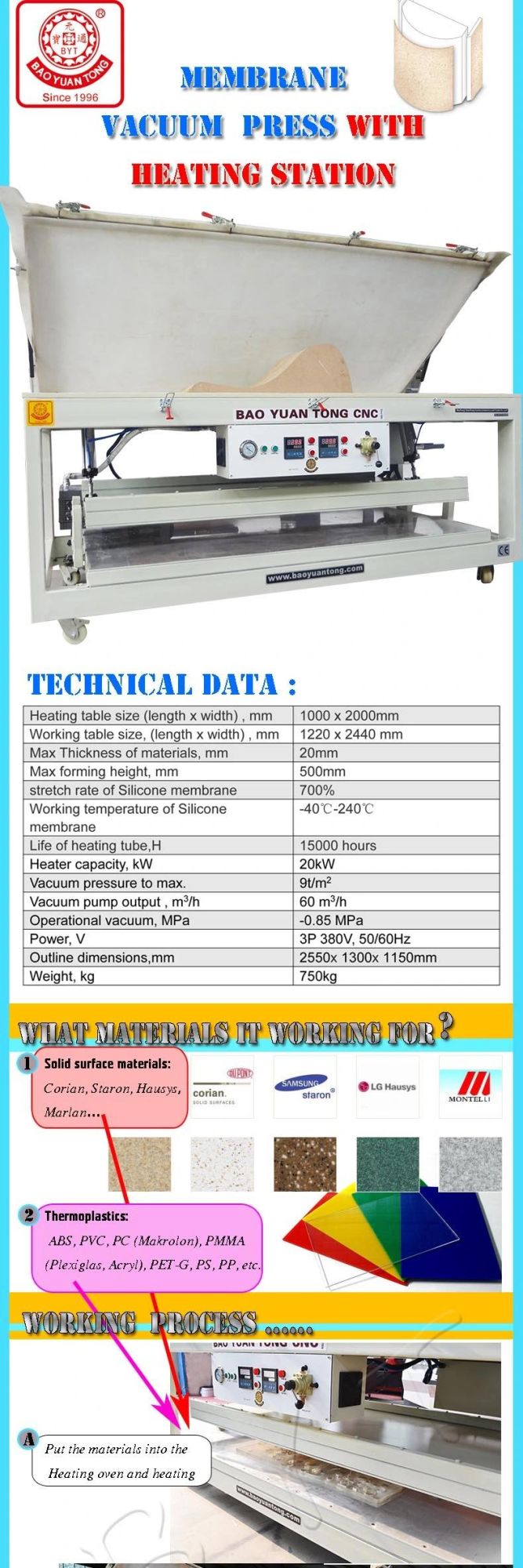

Technical data	BFS-2513
Working table size	1200*2400mm
Heating area	2000*1000mm
Forming area	2240*1020mm
Material Thickness	0-20mm
power	23kw
vacuum pump power	2.2kw
Max forming height	500mm
voltage	380v 50hz 3p
