WPC PVC Foam Board Plate Making Extrusion Machine with ISO9001 /CE
QINGDAO TRUSTY PLASTIC MACHINERY CO., LTD.- After-sales Service：Installing in Customer′s Factory
- Warranty：14month
- Product Type：PVC Board
- Board Layers：Single Plate
- Screw No.：Double-screw
- Automation：Automatic
Base Info
- Model NO.：SJSZ 80,156
- Computerized：Computerized
- Certification：CE, ISO9001:2008
- Customized：Customized
- Condition：New
- Length(M)：26
- Width(M)：3.0
- Height(M)：3.5
- Control System：Siemens PLC Control
- Inverter：ABB
- Breaker,Contactor：Siemens
- Product：WPC PVC Foam Board Extrusion Machine
- Application：WPC PVC Foam Board Extruding
- Machine Color：Custom
- Transport Package：Wooden Packing
- Specification：1220mm-1830mm
- Trademark：Trusty
- Origin：Qingdao
- HS Code：84772090
- Production Capacity：20 Sets,Month
Description
4.Company Profile
Our extrusion machines has got high praised by customer.
Qingdao Trusty Plastic Machinery Co., Ltd. is a professional plastic extrusion production line manufacturer integrating design, research and development, production and sales.The company's main products are rich, the production technology is mature, and the after-sales service is guaranteed. Products are sold at home and abroad, such as: Brazil, Chile, Mexico, the Philippines, Italy, Russia, Pakistan, Vietnam, India, Algeria, Egypt and other countries.

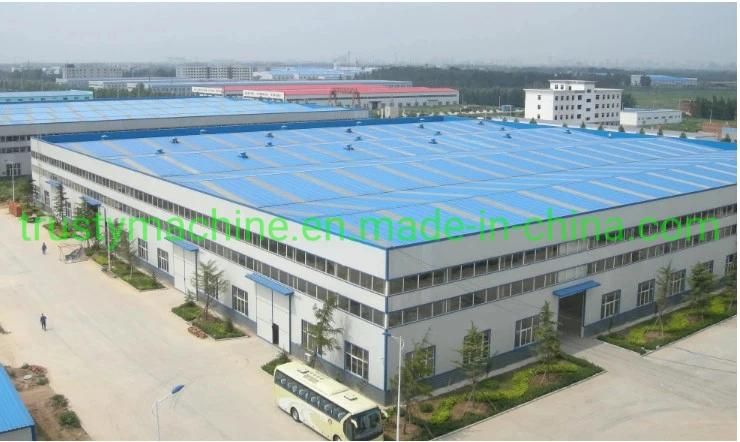

Our company is located in Qingdao, one of the plastic machinery bases in China, where the railway, sea transportation, aviation and other transportation systems are very complete. And it is one of the regions with rapid economic development in the coastal cities.The advantaged geographical conditions have provided great convenience for the development of the company's trade.
Our company's main products are: PVC door and window profile extrusion machine, WPC wood-plastic profile extrusion machine, PVC wall panel extrusion machine, PVC/PE/PPR pipe extrusion machine, PVC/WPC crust foam board extrusion machine, PE/PP/PC hollow sheet extrusion machine, PVC roof tile extrusion machine and PET packing strap band extrusion machine, etc. According to customers' needs, to achieve diversified processing customization.
Over the years, the company has always adhered to the tenet of "honesty for basis, quality for living, innovation as the theme, and development as the focus", abide by the quality commitment to users, and won the trust of customers.
5. WPC PVC foam board extrusion machine List
| Name | photos |

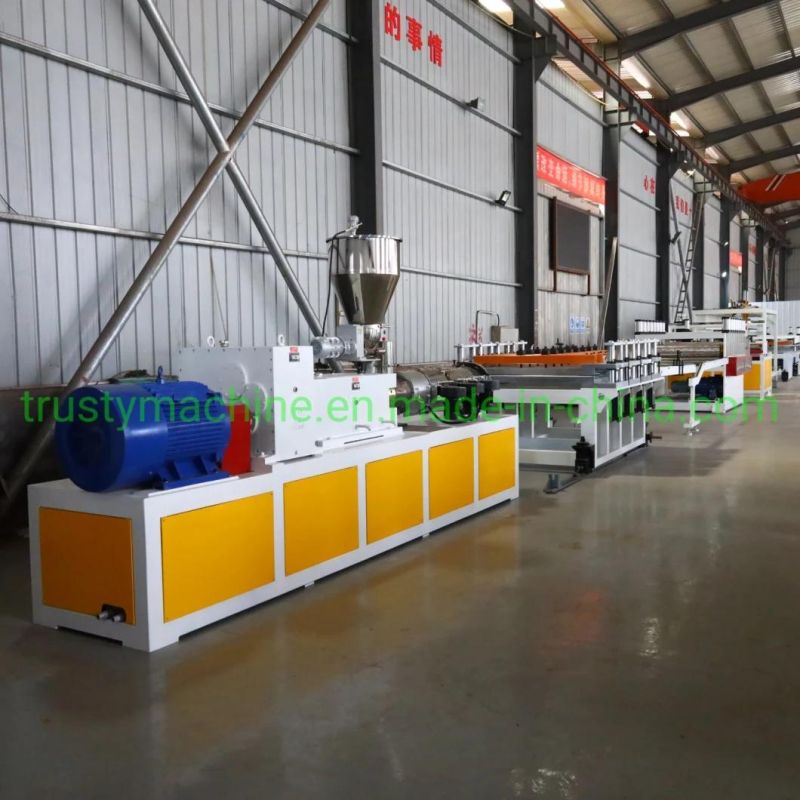

| SJSZ 80/156 Conical twin Screw Extruder (ABB frequency converter, SIEMENS conductor, OMRON Japan) |  |

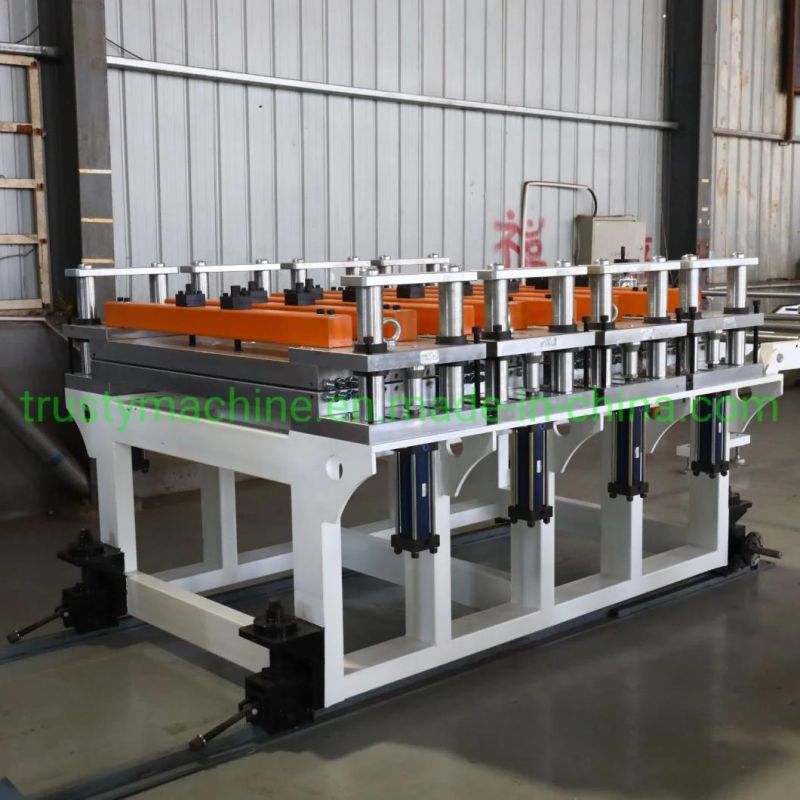

| Calibration unit |  |
| Cooling tank and bracket | Length: 6000mm,Trimming knife: 3 sets |

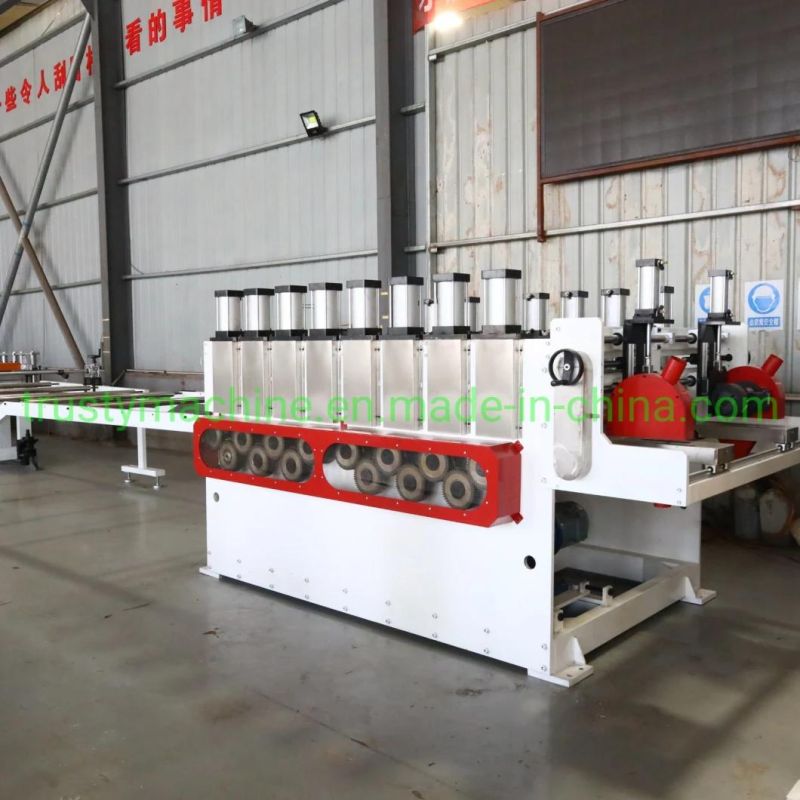

| Haul-off unit |  |

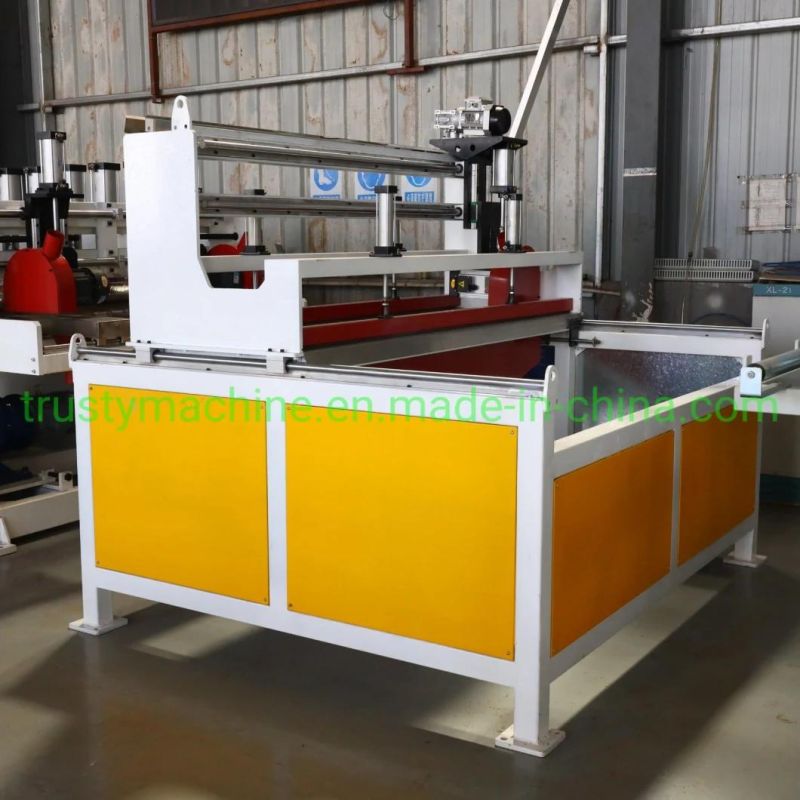

| Transverse Cutting unit |  |

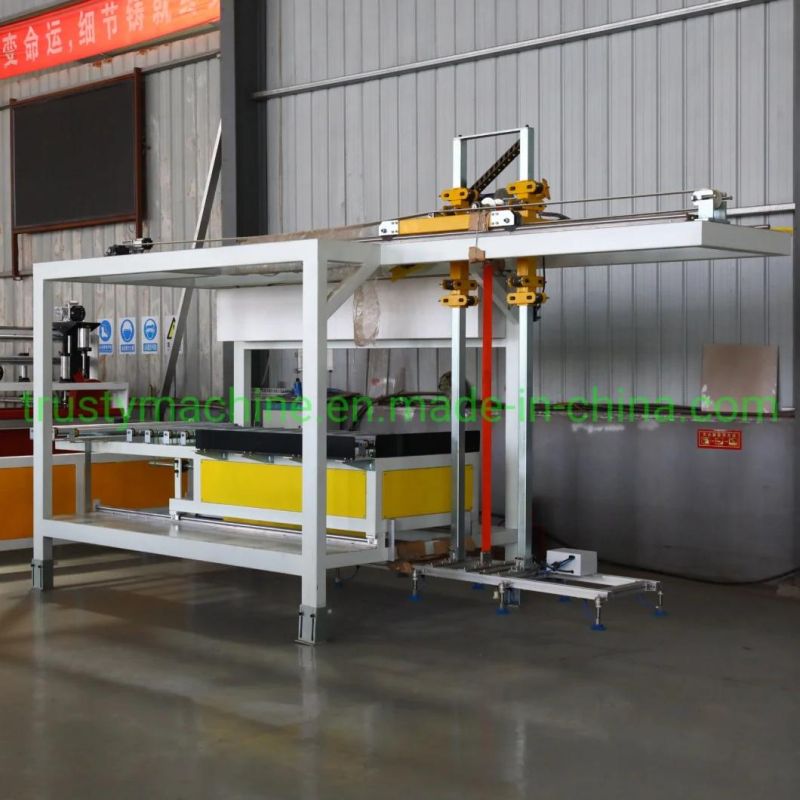

| Auto plate lifter |  |

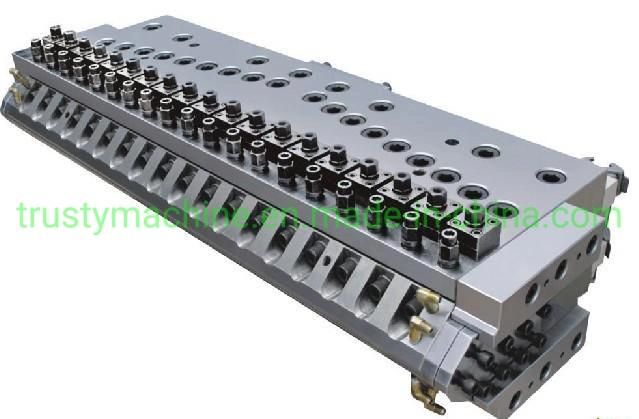

| Mould (T-Die) |  |
6.Technical Parameter
| Model | SJSZ-80 |
| Total installation power(kw) | 150 |
| Actual electricity consumption(kw) | 80 |
| Capacity (kgh) | 500-600 |
| Line speed (mmin) | 1-3 |
| Width of board(mm) | 915mm-1830mm |
| Thickness(mm) | 4-30 |
| main Motor Power(kw) | 75kw 0r 90kw or 110KW |

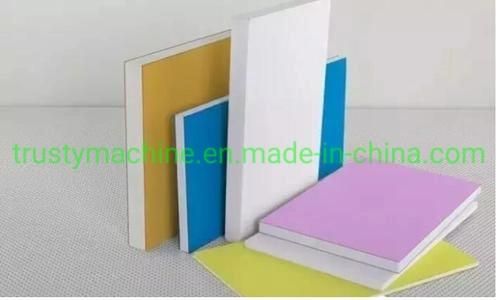

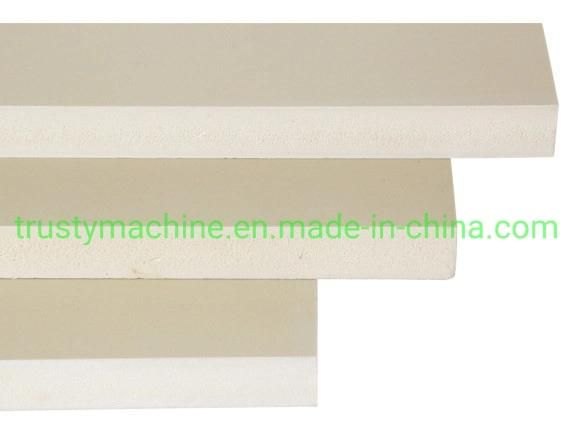

Technical data for different size of WPC / PVC foam board;
| Model | Extruder | Width | Thickness | Capcity |
| TPM-915 | SISZ80/156 | 915mm | <30mm | 300kg |
| TPM-1220 | SISZ80/156 | 1220mm | <30mm | 350kg |
| TPM-1560 | SJSZ92/188 | 1560mm | <30mm | 450-500kg |
| TPM-1830 | SJSZ92/188 | 1830mm | <30mm | 500-600kg |
7.Auxiliary Machines for WPC PVC foam board extrusion machine
| No. | Part. | Qty. |
| 1 | SHR-500/1000 Mixer | 1set |
| 2 | SWP-400 Crusher | 1set |
| 3 | SMP-500 Miller | 1set |
| 5 | Water Chiller | 1set |
8.FAQ
1.WHY CHOOSE US
We are the Professional manufacturer to develop the plastic extrusion machines in Qingdao. Machine quality and customer satisfaction is our pursuit.Be sure we have the strength to provide you with quality machines and perfect service.
2.WHAT SERVICES DO WE OFFER?
Pre-sale communication → Design proposal, signature confirmation→Customized production→ Test machine before shipment →Package & delivery→ Engineer installation→Training operator → Technical support
3.PAYMENT TERMS:
30% of total amount should be paid by T/T as down payment ,the balance (70% of total amount) should be paid before delivery by T/T or irrevocable L/C by payment(at sight).
4.DELIVERY CONDITIONS:
4.1 Delivery condition: FOB Qingdao port or CIF destination Port.
4.2 Delivery terms: Within 30-60 working days after receipt of advanced payment, the seller should inform the buyer to do inspection,the seller should finish packing of goods and ready for shipment within 15 working days after the seller receipt the full payment.
5.WARRANTY TERMS
5.1 Warranty period: 12 months, starting from the machine receipt in customer's warehouse
5.2 Seller shall grant: services and spare parts, free-of-charge service throughout the entire equipment during warranty period.
5.3 long life service: the seller should provide long life service for the sold goods, the buyer pay for needed spare parts after the 12months warranty terms.
6.INSPECTION
When the machine finished, the seller should inform the buyer to do inspection before shipment, the seller guaranty good performance of all the sold goods.the seller undertake the material cost for the machine inspection in seller's factory. the buyer should come to seller's factory to do the inspection work, or the buyer could entrust any third party to come to seller's factory to do the inspection work.
7.INSTALLATION AND EQUIPMENT COMMISSIONING:
if the buyer requires, the seller should send technician team to buyer's factory for installation and testing the whole line, and the buyer should undertake the whole food/place and round tickets (airplane, food, hotel, and so on), and pay salary to engineer for 100 usd/day/engineer.
