Double Winding Station Rotary Die Head 1500mm Film Width HDPE Film Blowing Machine
Zhejiang Songshan Machinery Co., Ltd.- Raw Material：HDPE, LDPE, LLDPE; Virgin and Recycled
- Screw Diameter：65mm*2
- Certification：ISO9001:2000
- Condition：New
- Ld Ratio：32:1
- Warranty：12months
Base Info
- Motor：37kw
- Output：90kgs
- Fim：Zhejiang Plastic Film Blowing Machinery
- Automatic：No
- Blow Moulding Type：Extrusion Blow Moulding
- Blower：6kw
- Power(W)：22kwx2
- Transport Package：Plastic Film; , Wooden Boxes, or as Required
- Trademark：songshan
- Origin：Zhejiang, China (Mainland)
Description
Model
SJCO-50
SJCO-55
SJCO-65
Features
Raw Material
HDPE, LDPE, LLDPE; Virgin and Recycled
Film Width
800mm
1200mm
1500mm
Average Output
70Kgs
85Kgs
90Kgs
Film Thickness
0.008mm-0.15mm
Power supply
380V, 3Phase, 50Hz
Weight
2000KG
2500KG
3000KG
Dimension
4.5M×4M×4.5M
4.5M×4M×6M
6M×5M×6M

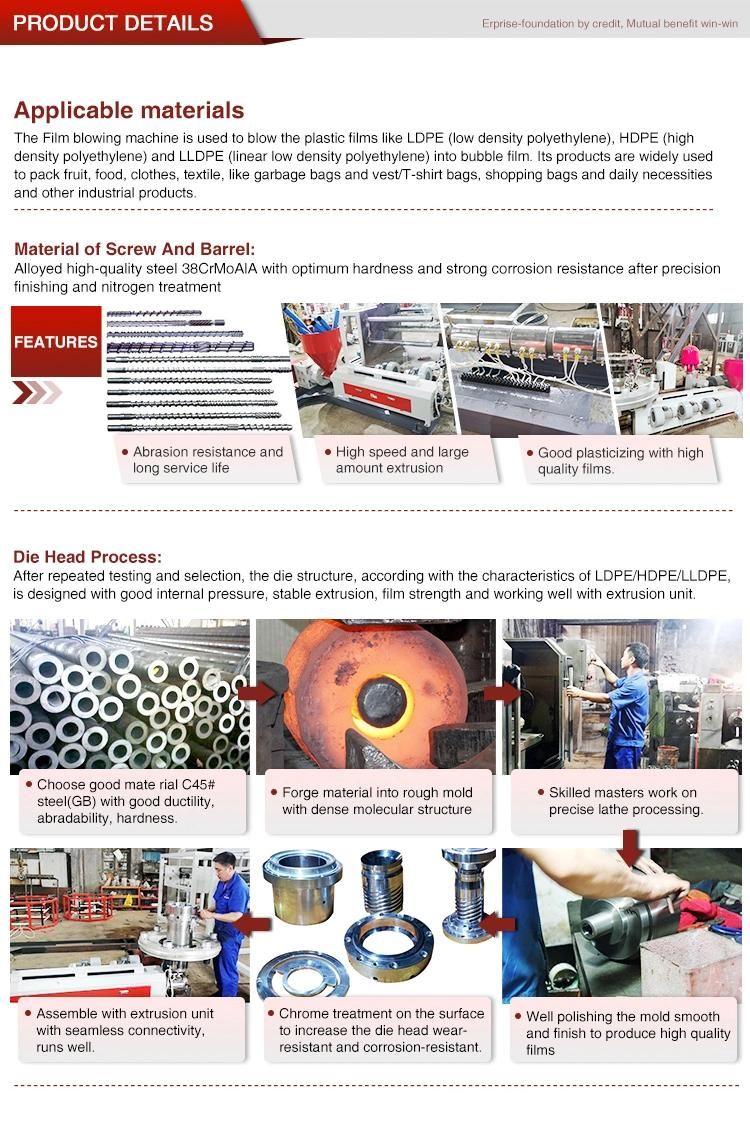

Extrusion Unit
Screw& Barrel Diameter
50mm×2
55mm×2
65mm×2
Screw& Barrel L/D ratio
30:1
32:1
Motor
11KW×2
15KW×2
18.5KW×2
Gearbox
146/146
173/173
200/200
Die Head Type
Rotary Die Head
Die Size
280/200mm
320/200mm
350/280mm
Heating
20KW
25KW
35JKW
Blower
3KW×2
Film
Taking-up Tower
Upper Tower Type
Rise and Fall
Roller Length
900mm
1400mm
1700mm
Roller Working Way
Opened and Tightened by Air Cylinders
Take Up Motor
1.5KW
Winding Station
Winder Type
Double winding station
Rollers Length
1000mm
1400mm
1700mm
Torque Motor
15N/M×3
Max. Winding Diameter
600mm
Control Panel
Electronics
Top China Brand
Inverter Capacity
11KW/1.5KW
15KW/1.5KW
22KW/1.5KW
Optional Equipment
Hopper loader, Corona, Mechanical Screen Changer
