KW-510 Automatic Polyurethane Strip Foaming Machine
Shanghai Kaiwei Intelligent Technology (Group) Co., Ltd.- Type：Polyurethane Foam Machine
- Raw Material：Mixing
- Principle：High-Pressure Air Type
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：KW-510
- Warranty：One Year
- Weight：1700 Kg
- Transport Package：Wooden Case, Carton
- Specification：2000X1800X1900mm
- Trademark：KAIWEI
- Origin：China
- HS Code：8479899990
- Production Capacity：200 Sets,Year
Description
Electric powerVoltage 3X380V ( It can be designed base on customer request) Power 5.5kw Air Dry compressed air ≥6bar Water Clean tap water
Mixing and Dispensing:
Description:
1) Auto Cad is built in the vertical computer;
2) USB port to transfer the Auto Cad drawing to the vertical computer;
3) Gallery with standard pictures in the vertical computer;
4) Wireless Hand operator panel for teach in programming;
Metering Pumps:
Germany Barmag metering pumps can assure the precision of glue feeding.
Mechanical Frame:
Mechanical frame is including 3-axis steel welding mechanical arm, gear-rack, rail, servo motor, speed reducer, drag chain, steel base and others.
Steel welding frame can meet the demands of high strength and stability when the machine moves in high speed. Besides, skewed tooth gear-rack
can improve the stability and precision of 3 axes, reduce the noise.
Electrical control panel:
Working table:
Raw Material-PU
PU is a product of 2-component Polyurethane. It adopts FIPFG (foamed-in-place foam gasket) technology which can foam on the
workpiece directly. The finished product is a soft and elastic foamed gasket. This gasket is made from component A and component
B. Component A is mainly polybasic alcohol, Component B is a hardener-isocyanate. After mixing A and B according to a certain
proportion and completely foaming, the mixture will become a soft foamed sealing strip.

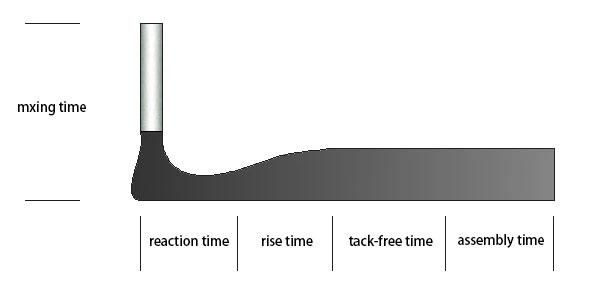

• Mixing time: time for mixing component A and component B
• Reaction time: time for the mixture to react( about15-60 seconds after mixing)
• Foam time: time from reaction to finish (about 15-180 seconds)
• Dry time: time for no viscosity on the suface, and no damage with touch under room temperature 25 ºC(about 2-20 minitues later)
• Available time:time for the availability of gasket to be pressed or assembled (about 20 minitues-12 hours later)
Shanghai Kaiwei Electric Equipment Co.,Ltd.
Website :kaiwei-electric.en.made-in-china.com
Add:Room B618, no.6433 yinggang east road, 8090 pioneer park, qingpu district, Shanghai, China

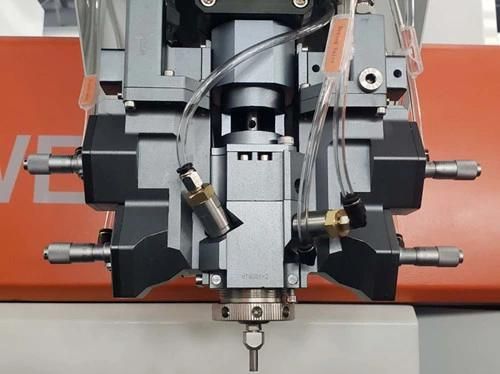

Mixing and Dispensing:
- Mixing head model:KW-700
- Dimension:410*200*135mm
- Weight:4.6KG
- Colour: Silver
- Output:1-4g/s
- Repeated glue output precision:1% (weight test)
- Pressure control method: electromagnetic valve
Description:
- High pressure water-cleaning and air-cleaning
- Modular light-weight structural design;
- High strength aluminum alloy and stainless steel structure;
- Multiple level glue injecting
- Stirring bar speed is adjustable, special design makes glue mixing very even
- High pressure pinhole injecting valve to control water-cleaning
- Air-blow pinhole injecting valve to dry mixing head
- Stirring bar directional movement to control the nozzle locking function
1) Auto Cad is built in the vertical computer;
2) USB port to transfer the Auto Cad drawing to the vertical computer;
3) Gallery with standard pictures in the vertical computer;
4) Wireless Hand operator panel for teach in programming;
Metering Pumps:
Germany Barmag metering pumps can assure the precision of glue feeding.
| Name | Brand | Model | Speed(ml/r) | Quantity | Type |
| A feeding valve | Barmag | 1-001-1787 | 3 | 1 set | single inlet and outlet |
| B feeding valve | Barmag | 1-001-1785 | 0.6 | 1 set | single inlet and outlet |
Mechanical Frame:
Mechanical frame is including 3-axis steel welding mechanical arm, gear-rack, rail, servo motor, speed reducer, drag chain, steel base and others.
Steel welding frame can meet the demands of high strength and stability when the machine moves in high speed. Besides, skewed tooth gear-rack
can improve the stability and precision of 3 axes, reduce the noise.

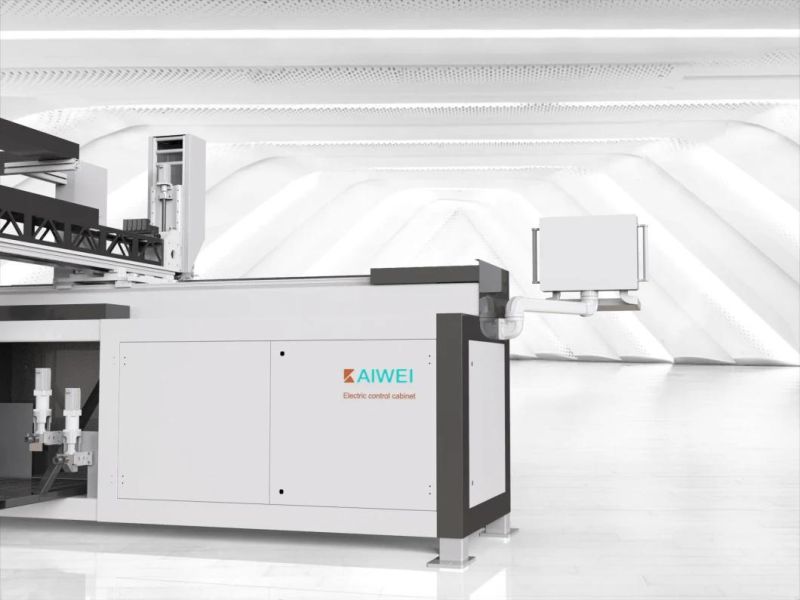

Electrical control panel:
- KAWIEI ES SERIES control panel:1700*1000*400mm(H*W*D)
- Material :mild carbon steel
- Color: RAL9003 RAL2011
- Elements brand:Schneider Omron Siemens and others
- 1,Material:stainless steel

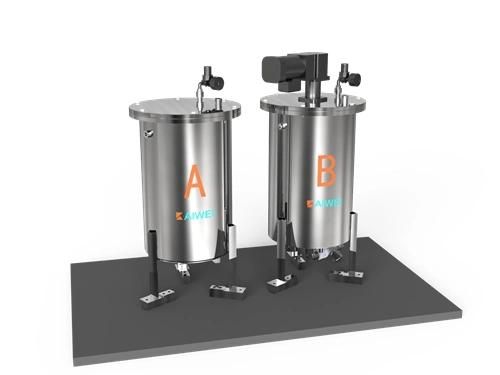

- 2,Volume: A-40L B-40L
- 3,Automatic high-low level alarm for A
- 4,A tank is with automatic glue-stirring and air-refilling function
- 5,A,B tank are with impurity filter
- 6,A tank with automatic air refilling and mixing function

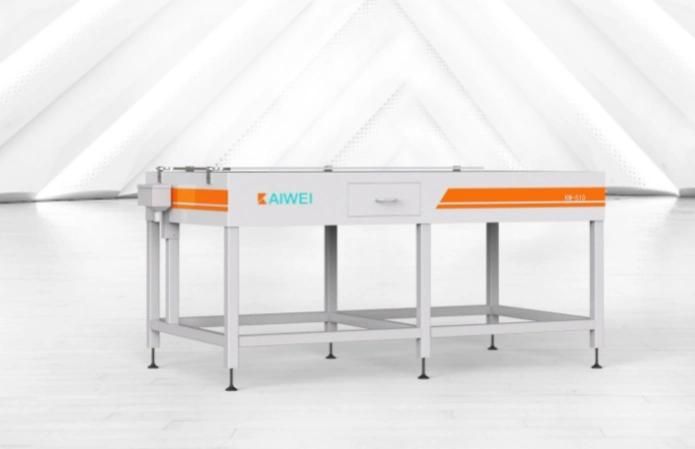

Working table:
