1700mm ABC Film Blowing Machine with Auto Winder and Rotary Air Ring

Xiongqiu Plastic Machinery Co., Ltd.
  • Type：Multi-Layer Co-extrusion Film Blowing Machine
  • Raw Material：LDPE , LLDPE , HDPE
  • Maximum Folding Width of Film：1600mm
  • Screw Diameter：55mm*2, 65mm*1
  • Automation：Automatic
  • Computerized：Non-Computerized

Base Info

  • Model NO.：FM3-1700
  • Machine Weight：8T
  • Certification：CE, ISO9001:2008
  • Machine Size：L*W*H: 8.5m * 4.2m * 7.5m
  • Voltage：380V 50Hz 3phase
  • Transport Package：Plastic Warp Film for Container Shipment
  • Specification：3 layers
  • Trademark：Xiongqiu Plastic Machinery Co., Ltd.
  • Origin：Foshan, Guangdong Province
  • HS Code：8477300000

Description

HDPEthickness0.02--0.20mmfilm width1200mm1600mm1900mm2100mmmax output80kgs/hr105kgs/hr150kgs/hr215kgs/hr Extruder30:1temp. controller15 zone15 zone16 zone16 zonebarrel cooling120w*4120w*4120w*6120w*6driving motor11kw*315kw*318.5kw*330kw*3 Die headSpiral mandrel die chrome plated surface 40Crcooling fan2.2kw3kw4kw5.5kw Take up partauto-loader device, film surface treater, air compressor, fast change net, automatic winder, double wind air ring, IBC inner cooling die head

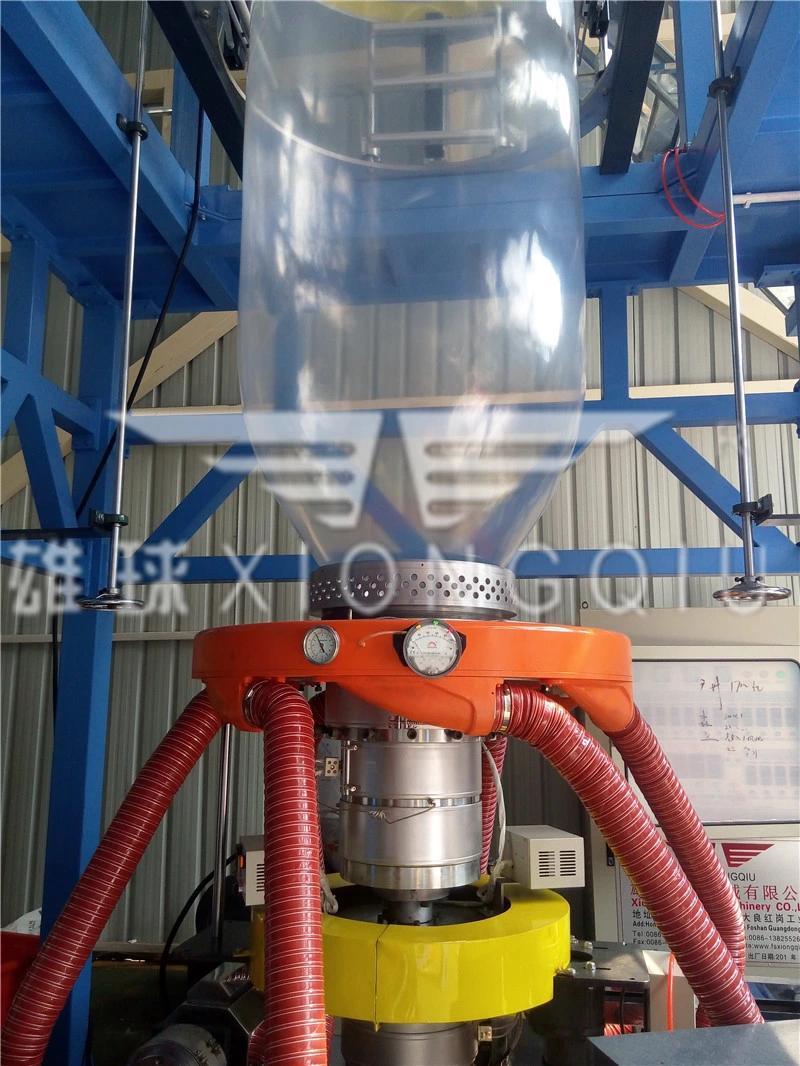

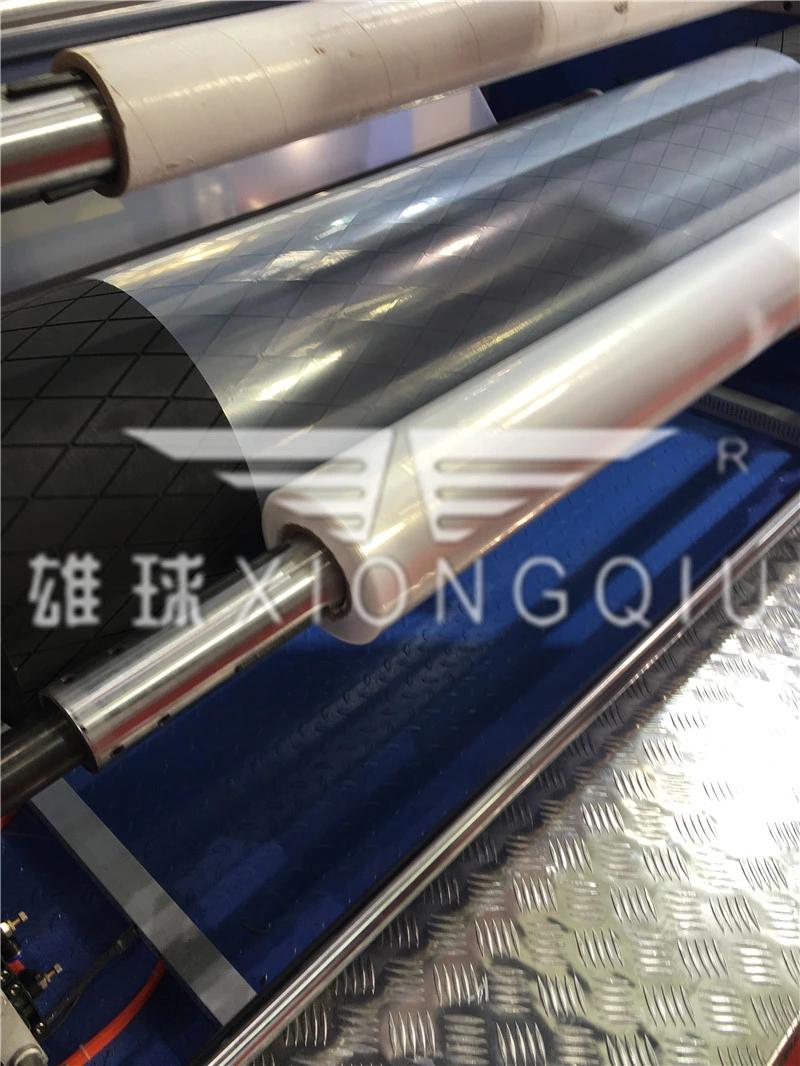

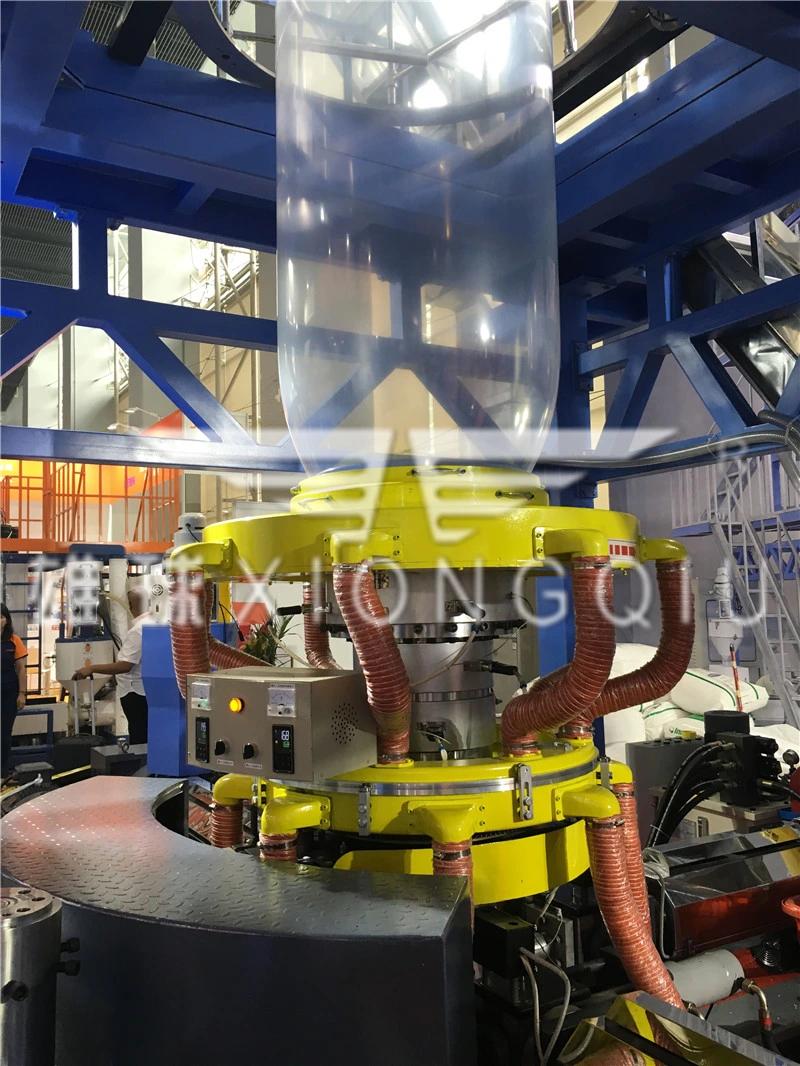

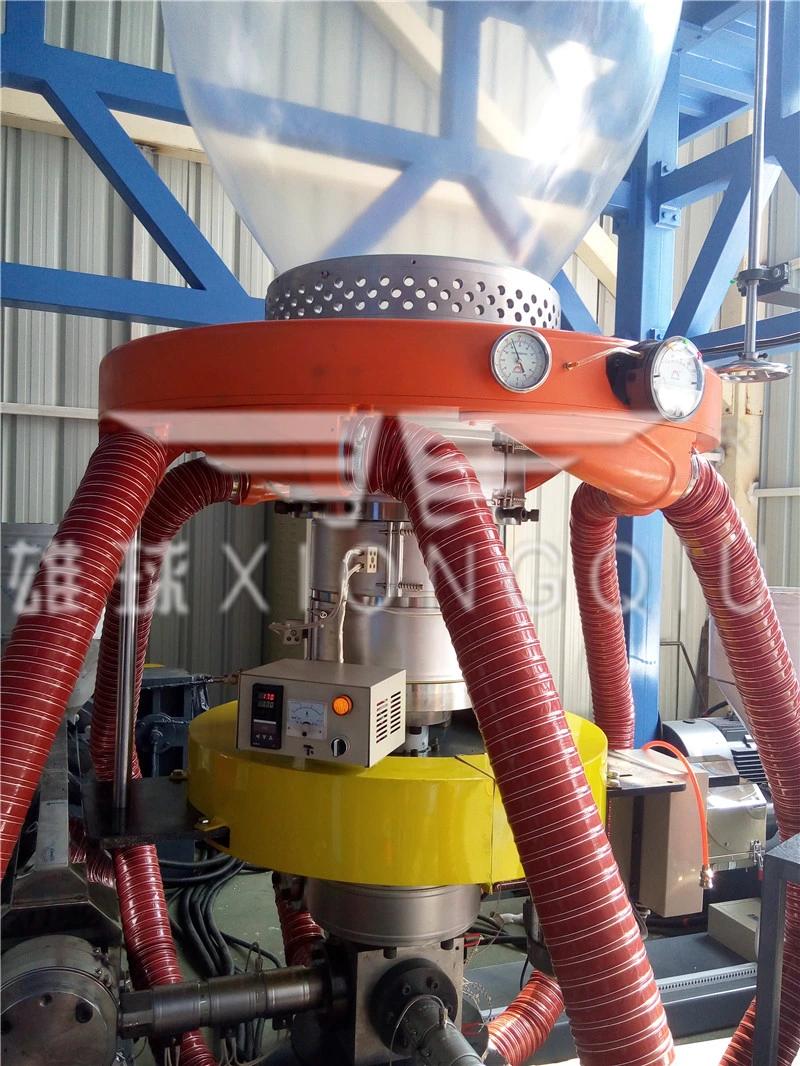

PICTURES FOR REFERENCE:
1700mm ABC Film Blowing Machine with Auto Winder and Rotary Air Ring
1700mm ABC Film Blowing Machine with Auto Winder and Rotary Air Ring
1700mm ABC Film Blowing Machine with Auto Winder and Rotary Air Ring
1700mm ABC Film Blowing Machine with Auto Winder and Rotary Air Ring
