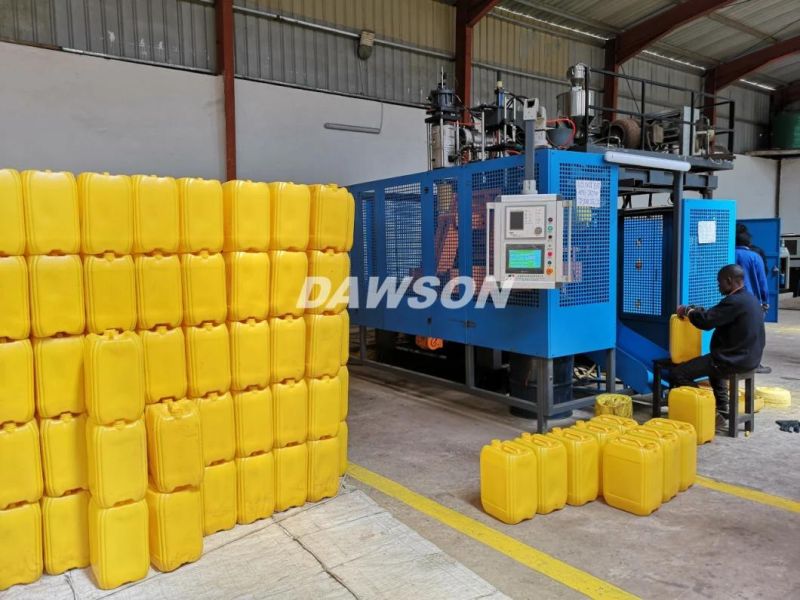

25L Jerry Can Full Automatic Plastic Bottle Blowing Machine

Zhangjiagang Dawson Machine Co., Ltd.
  • Type:Extrusion Blow Molding Machine
  • Automatic Grade:Automatic
  • Application:Bottles, Jars, Jerry Cans, Gallons, Containers
  • Station:Single Station or Double Station
  • Die Head:Single Head or Double Head
  • Max. Product Volume:25L

Base Info

  • Model NO.:ABLB80-25L
  • Auto-Deflashing:with Auto-Deflashing
  • Clamping System:Toggle Type Clamping System
  • Mould:One Cavity or Two Cavity
  • Suitable Material:HDPE, PP, PVC, PS, PETG, LDPE
  • Sutiable:20L 25L Bottle
  • Made in:China
  • Clamping Force:270 Kn
  • Distance Between Platens:450~950mm
  • Mould Template:680× 660
  • Mould Material:S50c,Aluminium with Beryllium Copper
  • Average Power Consumption:33 Kw
  • Raw Material:HDPE
  • Making Method of Parison:Extrusion-Blow Molding
  • Automation:Automatic
  • Computerized:Computerized
  • Certification:CE
  • Transport Package:Film Packing
  • Specification:ABLB80-25L
  • Trademark:DAWSON
  • Origin:Jiangsu Zhangjiagang
  • HS Code:8477301000
  • Production Capacity:50~60 PCS,H

Description

PE.PP,PVC,PS,PETG,so onMax volume25LOutput capacity50~60 PCS/HSize4.4×3.4×3.6(M)Weight11.3T SummarizeHigh efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature ReducerHard finishing Heating power10KW/H Cooling FanSeparate cooling system for heaters         Automatic cooling     Cooling systemSummarizeSeparate cooling system of mould, barrel and oil system Cooling mediumWater Water flow100L/min Water pressure0.4-0.6MPa #blow molding machine #Extrusion Blow Molding #Injection blow molding machine  #PET blow molding machine  # injection molding machine  # blowing mould # plastic bottle making machine #plastic bottle mould #bottle machine  #plastic machinery #blow molding mould #moulding machine  # moulding mould #China blow molding machine  #blow molding machine made in China
