• Model NO.：LSJ
• Customized：Customized
• Condition：New
• Machine Name：Polystyrene PS Sheet Extrusion Line
• Transport Package：Wooden Cases and Wooden Pallet
• Specification：PS sheet machine
• Trademark：Leader Machinery
• Origin：Qingdao China
• HS Code：8477209000
• Production Capacity：100 Sets Per Year

Basic Info.

Model NO. LSJ Customized Customized Condition New Machine Name Polystyrene PS Sheet Extrusion Line Transport Package Wooden Cases and Wooden Pallet Specification PS sheet machine Trademark Leader Machinery Origin Qingdao China HS Code 8477209000 Production Capacity 100 Sets Per Year

Product Description

Vacuum Thermoforming Polystyrene PS sheet making machine, Polystyrene PS sheet extrusion machine,Polystyrene PS sheet production line

Part1: Introduction of this Polystyrene PS sheet extruder machine

This PP PS sheet making machine is designed to produce PP PS single layer or multi-layers sheet or plate. The PP PS sheet has wide application in the Vacuum themoforming field.  The PP PS sheet can be manufactured to plastic cups, tray, boxes etc.

The sheets width can be from 500-1200mm and sheet thickness can be 0.2-2mm, adjustable.





Part 2 Production flows:



raw material(pp ps pellets)-vacuum feeding machine-single screw extruder-hydraulic exchanging units-T die head-three roller calendars-cooling frame and edge cutting-haul off machine-cutting machnine or sheet winder-final sheets.



Part 3 Mainfeatures of this PS sheet machine and testing pictures:



1Single Screw Extruder:



Screw adopts special mixing function and high plasticizing capacity design, famous imported world-known thermocontrollers,electronics, hard gear surface gearbox to ensure high effective material extrusion capacity.





2T-type die head: JC-Times brand



Excellent mould special steel 5CrNiMo, suitable compression ratio to ensure uniform flow stability. Using a special double flow design which allows more precise adjustment to sheet thickness.



Temperature control of plus or minus 1 ºC can accurately control the plasticizing process and sheet thickness. Die head is designed with width adjustment system .

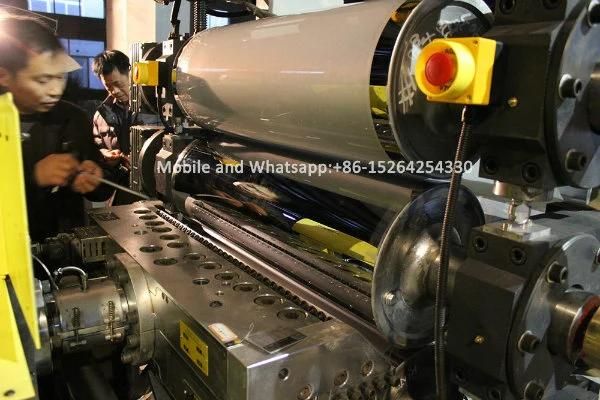

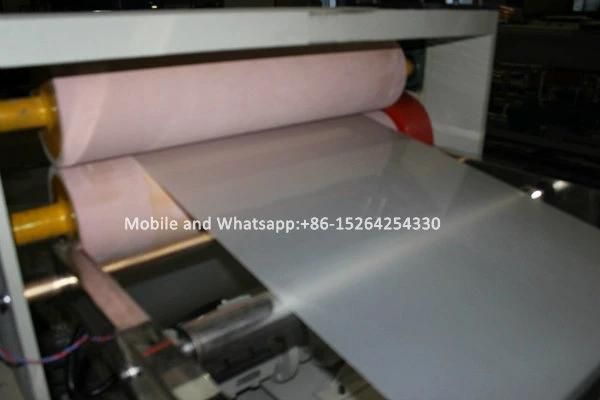

3Three roller calendar: Alloy steel material , chromed, good quality



According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control adopts a unique flow channel, so that the stability if uniform distribution roller. The independent oil temperature control for three roller calendar to ensure more stable and exact control.

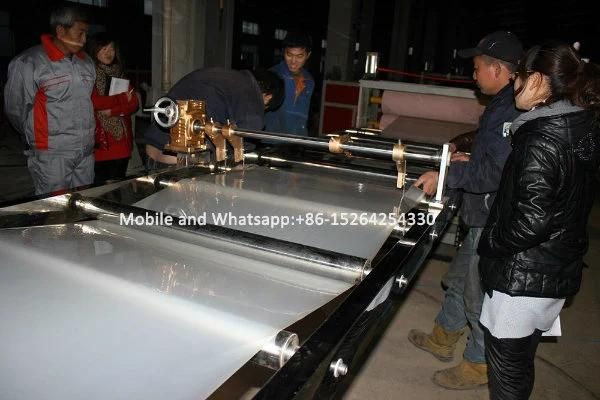

4Cooling frame: according to product specifications, configure with different specifications of stainless steel cooling roller.





5Edge cutting device:



Trimming can be manual or automatic. Both the position of the edge trimmer and the width of trimming sheet can be adjustable.





it can be divided into saw cutting or knife cutting. Thin type and non-friable type sheet usually adopt knife cut, adopting high quality alloy cutting tools, sharp and durable.

Thick type sheet usually use saw cutting.



6. Haul off machine

7Winder: torque motor driving. The winding speed can be automatically controlled according to the tension. Portable airshaft, easy and convenient operation.
