• Model NO.：DY-PW75
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Extruder：65X30mm
• Output：50-90kg,H
• Mesh Size：2, 3, 4, 5mm
• Width：600-1200mm
• Power：70kw
• Weight：4 Tons
• Dimension：8.5X3X2.6m
• Transport Package：Wood Pallet
• Specification：1 set
• Trademark：DY
• Origin：China
• HS Code：8477209000
• Production Capacity：20sets,Year

Basic Info.

Model NO. DY-PW75 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Extruder 65X30mm Output 50-90kg/H Mesh Size 2, 3, 4, 5mm Width 600-1200mm Power 70kw Weight 4 Tons Dimension 8.5X3X2.6m Transport Package Wood Pallet Specification 1 set Trademark DY Origin China HS Code 8477209000 Production Capacity 20sets/Year

Product Description

Plastic Anti-Mosquito Bites Net Machine Manufacturer The diamond mosquito net production line

Company Profile

we are professional manufacturer of Plastic net machine, our chief engineer had engaged in this fields for more than 20 years.
Our company Familiar with Rotary Die Head tech and Reciprocating Die Head tech, also developed new structure design, have many patents. our diamond mesh machine and square mesh machine choosing one extruder and modular control, low cost, more steady, more flexible and more efficient, easy to operate and need less worker, will easy bring benefit to you, is very popular home and abroad, the products can widely used in geonet, breeding, decoration, garden fence, landscaping, safety warning fence and so on.



Description

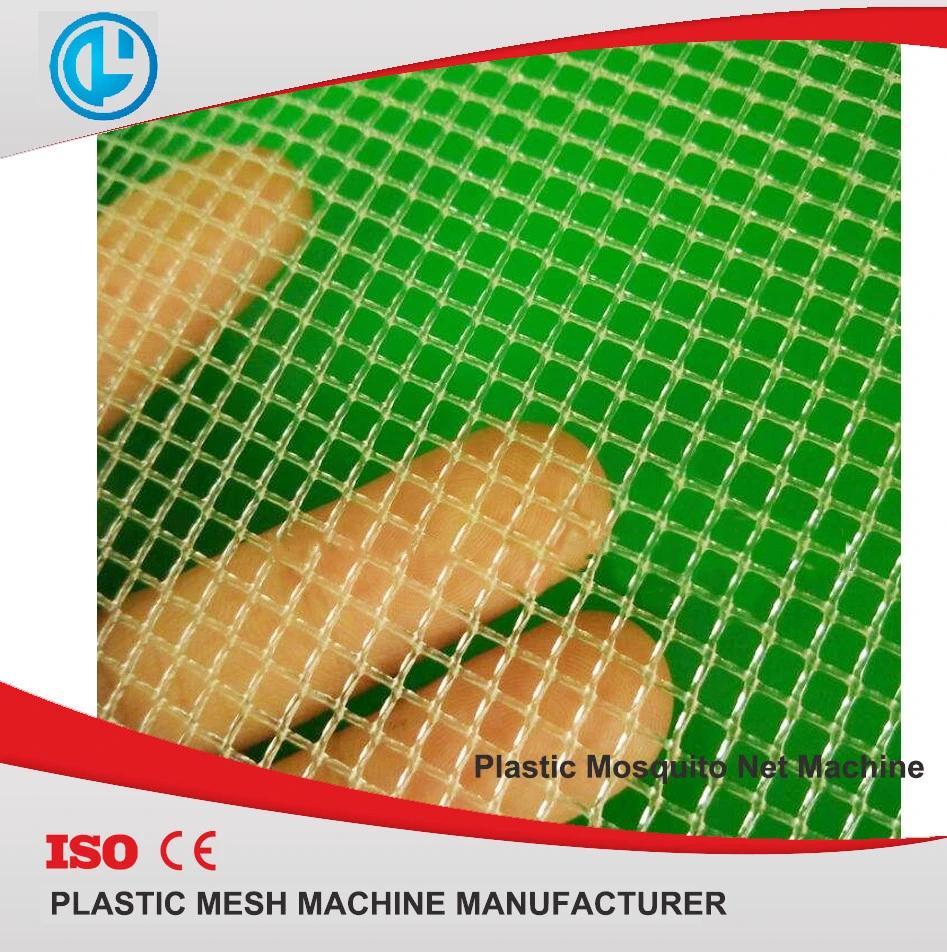

The diamond mosquito net production line is mainly use PE as raw materials, add some additives, to produce the plastic net with the small square hole. The mosquito net is mainly used in screen, anti-mosquito bites, chemical filtration, inner core of the filter etc…




Technical Parameter

1. Plastic Flat Net Machine
Model                                                         WCW-75×30
1.1 Automatic feeder                                    1 set
Feeding method                                        by vacuum
Hopper material                                         stainless steel
Feeding height                                          ≤5m
Feeding capacity                                       300kg/h/set
1.2 Single screw extruder                             1 set
Screw dia.                                                 Φ75mm
L/D ratio                                                    30:1
Rotary speed                                             0-80rpm
Main motor power                                     37KW
Frequency speed adjustment                     transducer motor
Transducer                                                 SIMENS or ABB brand
Heating power                                           approx. 30KW
Extrusion capacity                                     Max.90kg/h
Heaters                                                      5 zones cast aluminum heaters
Screw & Barrel material                            38CrMoAIA, Nitrided
Nitrided depth                                          0.4-0.7mm
Nitrided rigidity                                        HV720-940
1.3 Rotary die head                                      1 set
Material                                                     high grade mould steel, nitrided
Mould                                                        1 set for 2*2mm PE mesh with strip as sample
                                                                  1 set for 2*2mm PP mesh as sample
Product width                                           1500mm (Max.)
Rotation type                                            different directions rotary type
Heating method                                        heating ring of stainless steel
Heating power                                           approx 6KW
Driving method                                         frequency control of speed adjusting
Driving power                                           4KW



1.5 Mandrel                                                   1 set
Material                                                     steel
Width                                                        1500mm
1.6 Cooling water tank                                 1 set
Type                                                          Removable on rail
Cooling method                                        by water
Material                                                     stainless steel plate
Water overflow device                              1 set
Draw-off roller                                          2 sets
1.7 Cutting and flat system                          1 set
Cutting method                                         fixing knife
Knife material                                           high-speed steel
Flatting method                                         flatting shelf
Knife Q'ty                                                 1 piece
1.8 Hot water Flatten parts                          1 set
Hot water tank material                            stainless steel
Heating method                                       by electric
Heating power                                         9KW-12KW
Temp. control                                           PID intelligential control




1.9 Water remove parts                                1 set
   Dry method                                             by force fan
1.10 Draw-off system                                   1 set
Width of draw-off roller                           2000mm
No. of draw-off grade                              three grades draw-off
Driving method                                         by frequency conversion
Draw-off method                                      by rubber rollers
Draw-off power                                        2.2KW
Max draw-off speed                                 0.6-5m/min
Clamping method                                      pneumatically
Working pressure                                      0.4-0.5Mpa
1.11 Winding system                                     1 set
Clamping method                                      air shaft for 20mm core pipe winding
Discharging method                                  pneumatic
Pressure of air source                                0.4-0.7Mpa
Driving method                                         moment motor
Motor power                                             1.1KW
Width of winding roller                            2000mm
Automatic Cutting unit                             1 set, no tooth saw blade
Valid cutting width                                   2000mm
2. Electrical Configuration:
Transducer                                                 Simens or ABB
Temperature controller                              RKC
Low voltage apparatus                              Schneider
Power supply                                             380V/50Hz, 3 phases




Contact

Plz let us know if u are interested in our machine.

Welcome to consulting !
