• Model NO.：SJ55*2
• Machine Weight：Depend on Machine Size
• Certification：CE
• Film Type：LDPE, HDPE
• Machine Name：Blown Film Extrusion Machine
• Certificate：Ce,SGS
• Ship：by Sea
• Blow Moulding Type：Extrusion Blow Moulding
• Model Number：Sj55*30+Sj55*30-Fms1200(ABA)
• Power(W)：30
• Screw L/D Ratio：30:1
• Transport Package：Film Packing
• Specification：CE, SGS
• Trademark：BINHAI
• Origin：Ruian City, Zhejiang, China
• HS Code：8477309000
• Production Capacity：320 Sets,Year

Capacity :100-120kgs/H3.3TON /DAY99 TON/MONTHSCREW DIAMETER: 55* 2

Why use Caco3
1 ) Price increasing of new material and Petroleum, it will less cost for us to use Caco3 and recycle film       instead of new material .
2) Our ABA Film machine, A layer for outter two layer film, Film surface will be more smooth and light, better stretch . B layer for caco3 and recycle film or other filler.
3) Film roller from ABA Film blowing machine , better film quality than one layer film machine, less cost raw material than one layer film machine , less machine cost than ABC film machine .

You can get back all machine money from saving raw material in one year .

Main Technical Parameter :


ModeSJ55*2SJ45+SJ55Screw DiameterA 55 /B55A45/ B 55Screw Ratio(L/D)30:128:1 &30:1Heater30 kw20 kwDriving motor powerA18.5/B22 KWA15/B18.5KWTemperature controller11 zone11 zoneTake-up roller width1200mm850mmTake Up Power0.75mm0.75mmTake Up Speed Max.80m/min80m/minDia Diameter120(A+B+A)100(A+B+A)Air blower power4 kw4kwFilm Width400-1000mm200-800mmFilm thickness0.02-0.1mm0.02-0.1mmOutput 100-120kgs/h90kgs/hDimension6*3*6m5*2*5

OPTIONAL EQUIPMENT

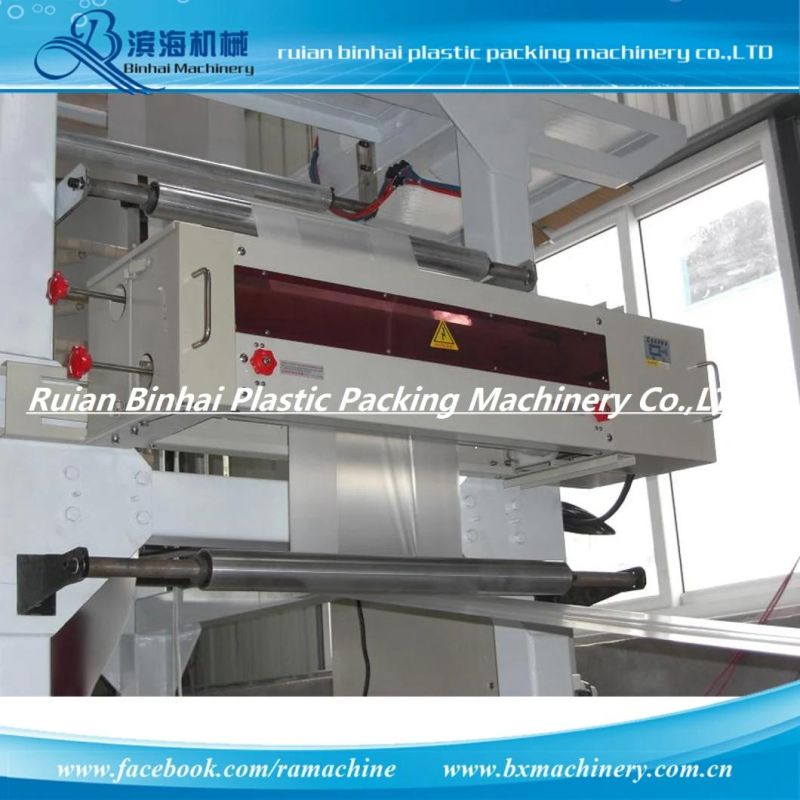

1)AUTO LOADER   2)GRAVITY METRIC DEVICE  3)CORONA

4) BOUBLE SIDES WINDER 5)  HIGH SPEED NET CHANGER

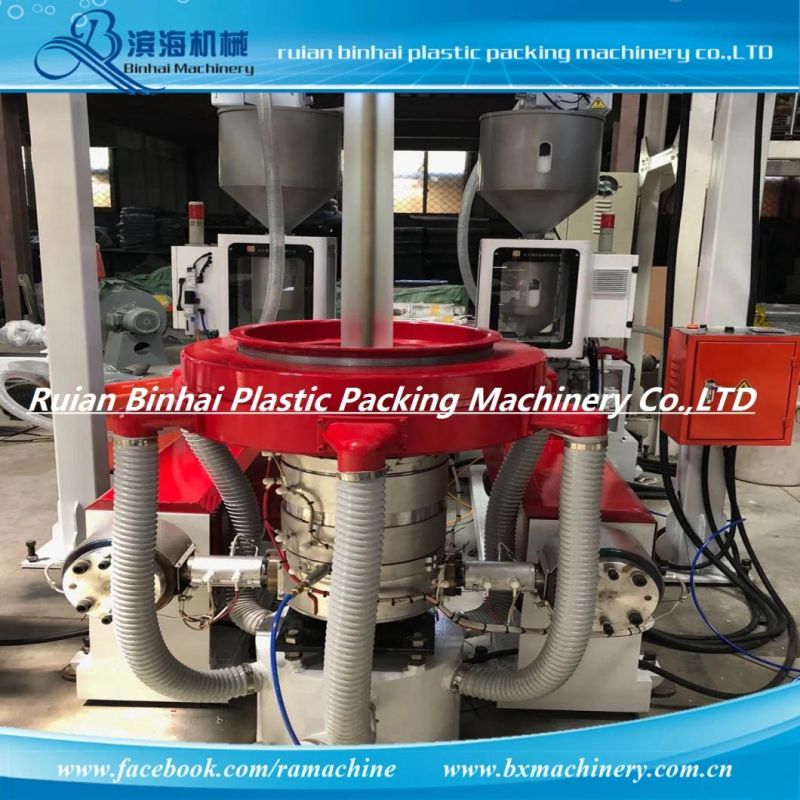

ABA Film Blowing Machine use Two screw and One Die ( ABA Head Die)

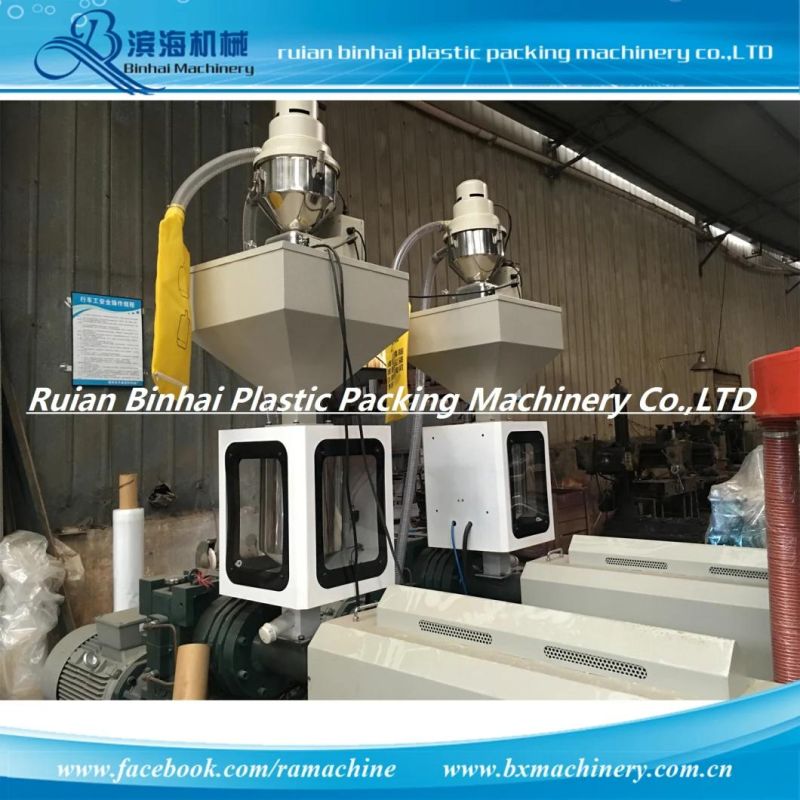

Up Left Picture is Dosing system and Auto loader for optional .

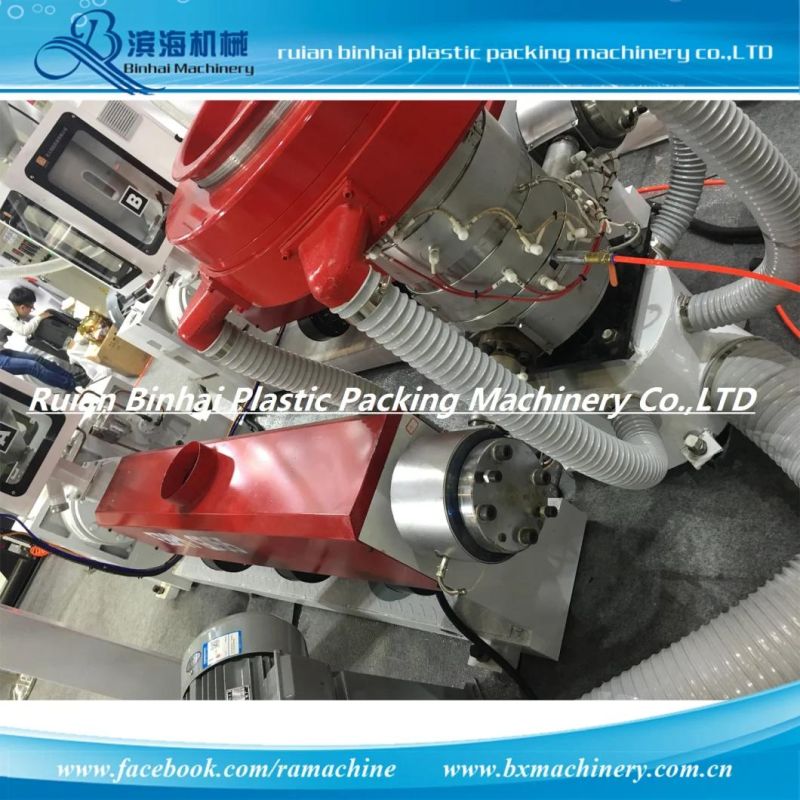

We use 3 motors for each screws .

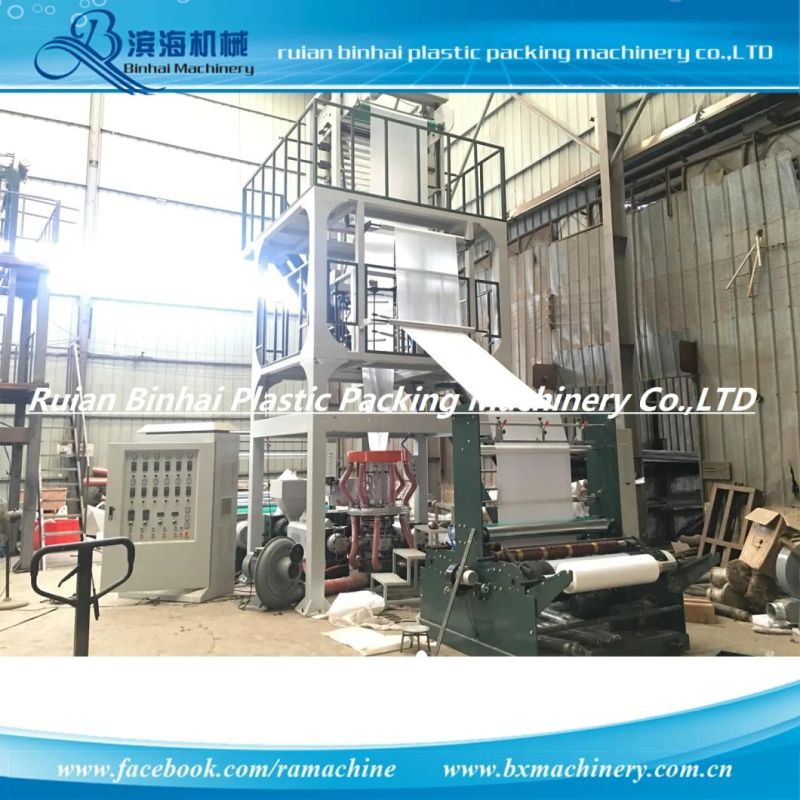

Right  Side Picture with Normal Double Rewinder.
Left Picture with Automatic Double rewinder( Automatic cutter and rewinder)















The End , thanks for your reading .
