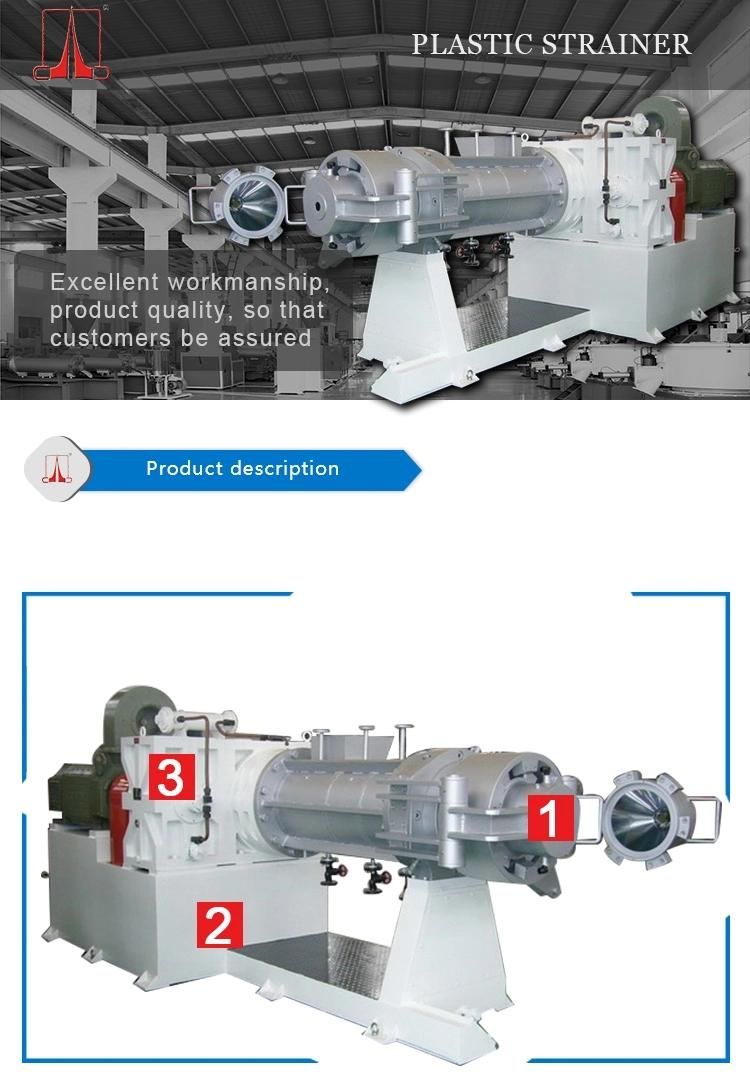

Sjl-160 Soft Film Hot Sell Plastic Filter Strainer Extruder Before Calender
Zhangjiagang Lanhang Machinery Co., Ltd.- Type：Straining Extruder
- Plastic Processed：PVC
- Product Type：Straining Extruder
- Feeding Mode：One Feed
- Assembly Structure：Integral Type Extruder
- Screw：Single-Screw
Base Info
- Model NO.：SJL-160
- Engagement System：Non-Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Don′t Exhaust
- Automation：Automatic
- Computerized：Non-Computerized
- Roller Diameter：150mm
- L/D Ratio：5.5:1
- Screw Speed：Max 75rpm
- Main Motor：55kw Invereter Motor
- Color：Customized
- Screw Material：38crmoala, Nitrogen Treatment, Hard Chrome Plated
- Die Head：Double
- Die Head Locking：Hydraulic
- Temperature Control：Oil or Steam
- Gearbox：Hard Tooth Gear, Self-Cooling and Lubrication
- Inverter Brand：ABB, Siemens or FUJI
- Low Voltage Electrical Parts：Schneider
- Transport Package：Film Packing
- Specification：ISO9001: 2000
- Trademark：LANHANG
- Origin：China
- HS Code：84778000
- Production Capacity：50 Sets,Year
Description
Item
SJL-160
SJL-200
SJL-220
SJL-250
SJL-300
SJL-350
Screw dia.(mm)
160
200
220
250
300
350
Motor(kW)
55DC
75DC
90DC
110DC
132DC
160DC
Screw material
38CrMoAlA
Component Machine list
| No. | Item | Qty |
| 1 | Screw | 1 set |
| 2 | Barrel | 1 set |
| 3 | Die | 1 set |
| 4 | Base | 1 set |
| 5 | Transmission | 1 set |
| 6 | Hydraulic and lubrication system | 1 set |
| 7 | Electrical controlling system | 1 set |
| 8 | Equipped pipe | 1 set |
Our service
1. One year warranty
2. Engineers available to service machinery overseas (installation, debugging, commissioning and maintenance.)
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. Life-long technical support
