PP Blown Film Machine with Auto Loader with Rotary Die Film Width of 800mm
Wenzhou Rili Machinery Co., Ltd- After-sales Service:Lifetime After-Sales
- Warranty:One Year
- Type:PE Film Blowing Machine
- Raw Material:PP
- Maximum Folding Width of Film:800mm
- Screw Diameter:65mm
Base Info
- Model NO.:RL-PP
- Automation:Non-Automatic
- Computerized:Non-Computerized
- Machine Weight:4T
- Certification:CE
- Speed:High Speed
- Die:Rotary Die
- Rewinder:Single or Double
- Transport Package:Stretch Film Packaging, Wooden Case
- Specification:5.5m*2.1m*4.7m
- Trademark:RILI
- Origin:Made in China
- HS Code:8477209000
- Production Capacity:200 Sets, Year
Description
Basic Info.
Model NO. RL-PP Automation Non-Automatic Computerized Non-Computerized Machine Weight 4T Certification CE Speed High Speed Die Rotary Die Rewinder Single or Double Transport Package Stretch Film Packaging, Wooden Case Specification 5.5m*2.1m*4.7m Trademark RILI Origin Made in China HS Code 8477209000 Production Capacity 200 Sets/ YearProduct Description
PP Blown Film Machine with Auto Loader with Rotary DieMain Uses and Characteristics:
1.It is suitable for producing polypropylene packing bags of various sizes(such as packing bags for clothing, food, textile and industrial products, etc.)
2.The cylinder and the screw stem of the extruder are made of high-quality alloy steel after nitrogen treatment, which has the best hardness and corrosion resistance.
Main Technical Variables:
Model | P-65 |
Screw Diameter | 65mm |
Quantity&Die Size | Rotary die head , 1pc, Φ250mm (high precision hard chrome plating by quenched and tempered treatment. Material: NO. 45 steel), Rotating way: 360°rotation |
Screw L/D | 27: 1 |
Screw rotation rate | 10-120 rpm |
Folding width of film | 800mm |
Single-face thickness of film | 0.015-0.06mm |
Power of main motor | 22kw 380V, 50HZ, 3 Phase |
Inverter | 22kw, made in china |
Total power | 50 kw |
Max. Output | 50kg/hr |
Dimension | 6.0× 3.0× 5m |
Weight | 3.5T |
Configuration:
- Extruder
Single screw extrusion die head |
Screw and Barrel Material: SACM-645/38 CRMOALA, made in Zhoushan |
Heating control zone: 6, 6 temperature controllers are mounted in one control box |
Temperature control method:double digital displayer temperature controller |
All adopt stainless heater |
Cooling blower for screw and barrel: 2 sets, 380V, 120W*2, three-phase centrifugal blower |
Blower: 1.1KW (inverter:1.5KW), three-phase centrifugal blower |
Cooling Air Ring:Aluminium Alloy Rotary Ring |
Gear box:180 model water cooling reducer, hard tooth surface |
Auto loader: 1 set |
2.Traction Part
Body Frame Height:5 meters |
Power of Traction motor:1.5KW |
Inverter: 1.5KW, china brand |
Traction Roller:900mm |
Traction roller adjustment: cylinder |
3.Winding Part
Winding Type:Double winder |
Winding Speed:0-50 meters/min |
Winding Roller: 900mm |
Power of Winding motor:3 sets , Three-phase torque motor |
Winding shaft:4 winding shafts |

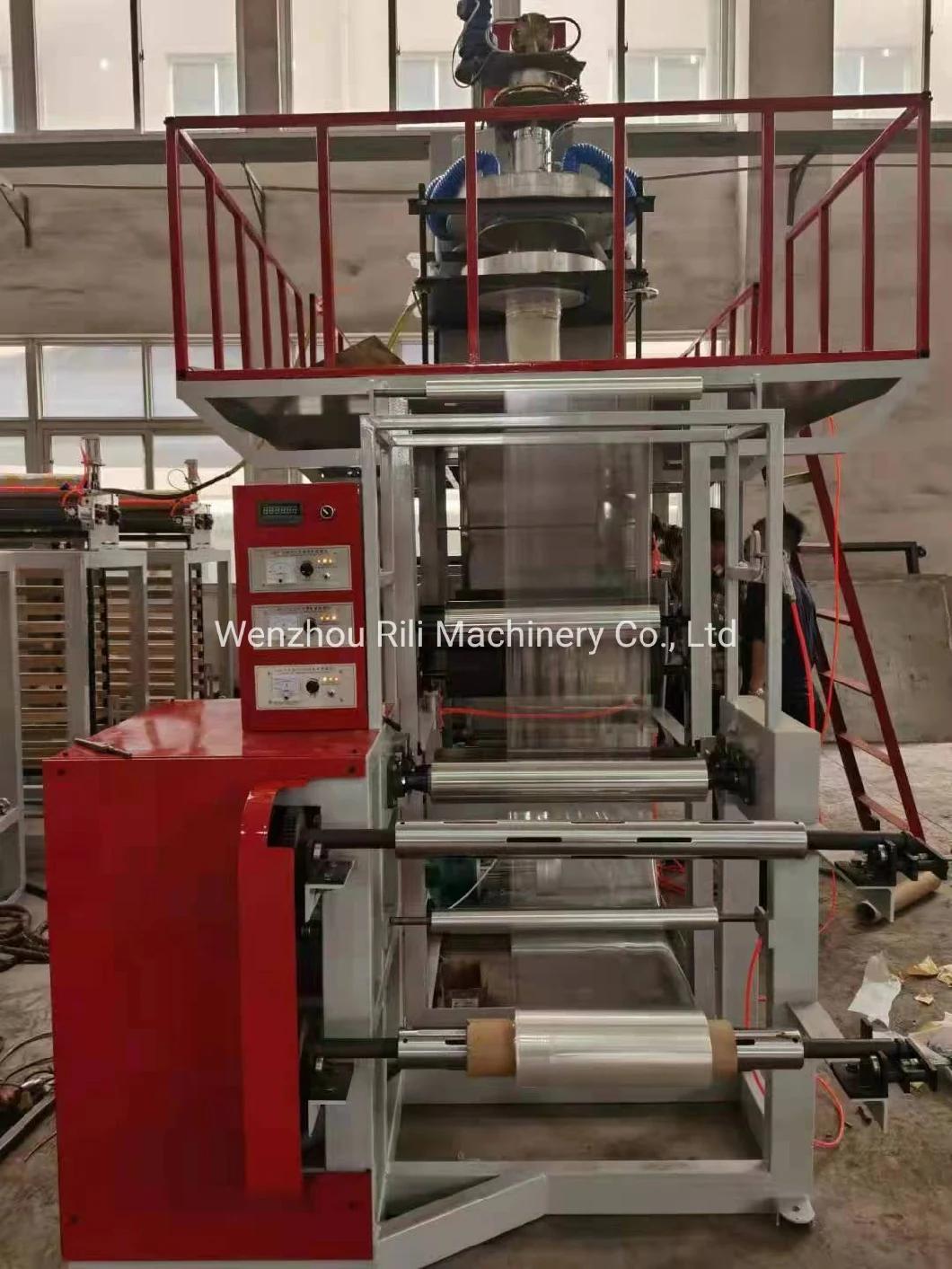

Machine Pictures:
Machine Loading
