• Model NO.：RTWWT
• Computerized：Customized
• Certification：ISO9001:2008, CE
• Color：Could Be Customized
• After-Sale Service：Eers Available to Service Machinery Overseas
• Material of Recycling Machines：Stainless Steel
• Electric Grid：3p 220~440V 50 or 60Hz
• Transport Package：Wrap Film
• Specification：TSWL300~3000
• Trademark：RETECH
• Origin：China
• HS Code：8477900000
• Production Capacity：1000sets Per Year

Basic Info.

Model NO. RTWWT Computerized Customized Certification ISO9001:2008, CE Color Could Be Customized After-Sale Service Eers Available to Service Machinery Overseas Material of Recycling Machines Stainless Steel Electric Grid 3p 220~440V 50 or 60Hz Transport Package Wrap Film Specification TSWL300~3000 Trademark RETECH Origin China HS Code 8477900000 Production Capacity 1000sets Per Year

Product Description

Automatic Plastic Crushing Crusher Blade Knife Grinder Sharpening Machine Knife Sharpener

1. Product Image:

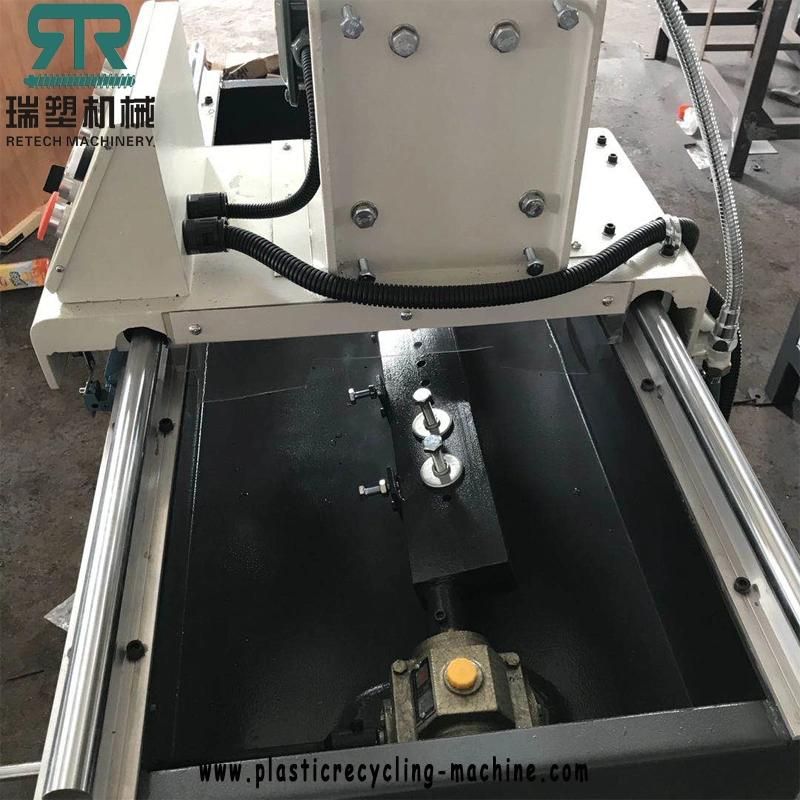

Knife sharpener for plastic crusher


2. Technical Description
Purpose:This knife grinding machine is specially designed for the plastic crusher, with high efficiency. It also can be used for the straight-bladed knife from woodenworker tool.
Feature:This tool is made up of machine body,working table,slide carriage,retarding motor,wheel head,electrical controller.,which is with nice appearance,terse construction,small volume,light weight,high efficience(it's 2-3 times than the common tooll),be the same with different straight-bladed knife.

3. Product Specifications

Index	Description	Specification
1	Grinding knife length	650mm-1000mm
2	Starting knife motor	YN90-40/90JA30G12
3	Size of Bowl type grinding wheel	BWΦ125ХΦ98ХΦ32Х12
4	Angle of working table	0-90°
5	Moving speed of flaring cup wheel in portrait	5.65m/min
6	Motor for flaring cup wheel	Y802-2B3    1.1KW    2830r/min

Regardless of what kind of plastics you process and what output qualities and production volumes you're striving for, RETECH Machinery will develop a recycling plant solution that is customized exactly to your requirements. With perfectly coordinated processing steps for shredding, separating and washing,we guarantee a smooth workflow that delivers a 100% clean and homogeneous output material.

We classify plastic recycling into following categories as per the materials of plastic:

1. Crusher/Granulator/Miller

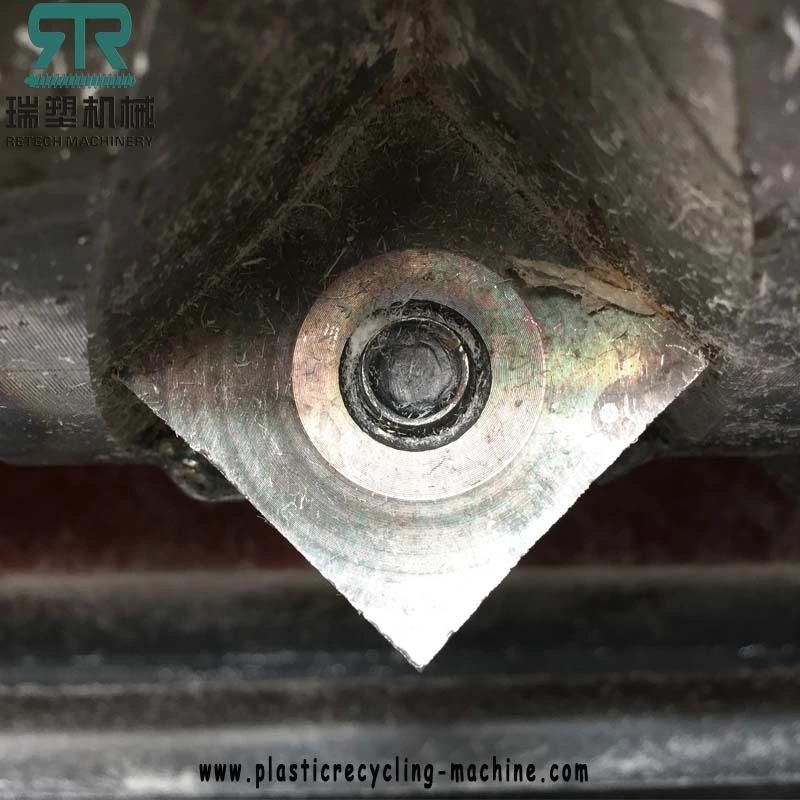

Shredder blades:



Order flowing process of PP washing line:

Customer requirements →Scheme designed →confirmed by customers →order fixed →manufacturing →trial running in our factory →confirmed by customers →shipped →engineer available overseas →whole life after sales services

Q&A about recycling machines:

1. What is the function of the PE PP film washing recycling machines?
The PE PP film washing recycling machinery is used to recycle and process the PE agriculture film, PE bags, shopping bags, beverage bags, PP woven bags, and some other soft material etc…
2. Where does it collect the waste material for the PE PP film washing recycling machines?
The waste mater is gotten mainly from agriculture film, city rubbish and plant in bale package or separated. They are with much dirties, such as the earth, soil, sand, stone, glue, grass, oil, and some other dirties.
But by our many years experience to manufacture the washing line, we can promise to wash the material clean enough to take the washed material into the extruder to make granules. We have our special design to guarantee this point.
3. What are main parts of the PE PP film washing recycling machines?
The following is a standard structure of the PE PP film washing recycling machinery:
Belt conveyer--- crusher with water--- screw conveyer--- floating washer--- screw conveyer--- high speed friction washer--- high speed friction washer--- screw conveyer--- horizontal centrifugal dewatering machine (or squeezer)--- drying system 1--- transition hopper--- drying system 2--- storage silo--- operating panel
The up is a standard structure of the line, we can adjust it to remove some parts or add some parts due to the situation of the material or customers' requirements.
4. What capacity of the PE PP film washing recycling machinery?
300-1000kg/h for single washing line
5. What power of the PE PP film washing recycling machines?
150kw~480kw
6. How much water does it need of the PE PP film washing recycling machines?
3~8T per hour
7. How large space does it need for a PE PP film washing recycling machines?
100~400 square meters, the whole line could be installed by straight, "L" shape or "U" shape. We could design how to instal the machines due to the space of your factory.
8. What is the condition of the final products from the PE PP film washing recycling machines?
The size of final flakes will be 50~100mm, and final moisture level of film flakes will be lower than 5%.
The PP PE flakes can be taken directly to the granulating/pelletizing line to make granules/pellets.
9. What is material of the PE PP film washing recycling machines?
The parts contacted with water are made of stainless steel SUS 304 or customized.
10. What certifications do you have for the PE PP film washing recycling machines?
We have CE and ISO9001 certification for the entire PE PP film washing recycling machines.

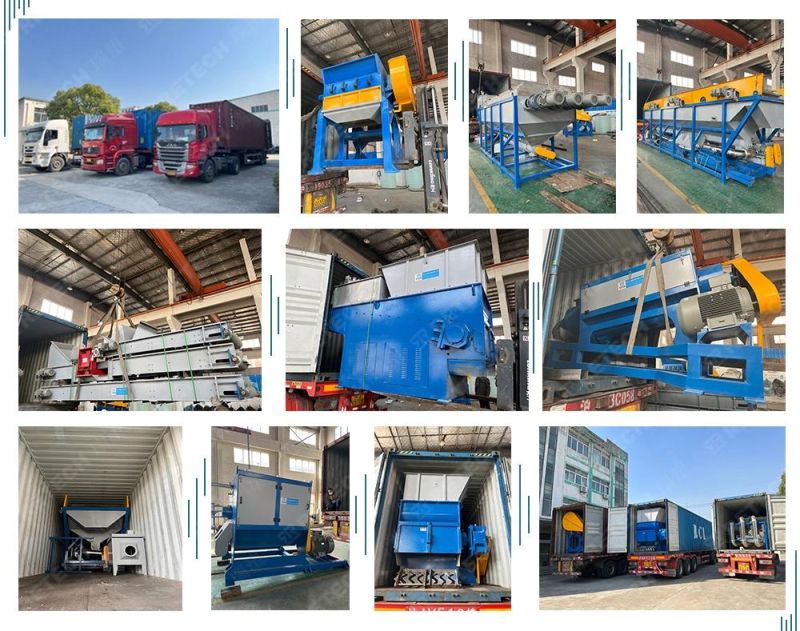

Package and Loading:


Contacts:

RETECH Machinery is an experienced and professional manufacturing for series plastic washing recycling machine/ plastic granulating recycling machine including ET bottle recycling machines, PE PP film recycling machines, plastic PE PP PS ABS PET PC PVC LD HD LLD BOPP granulating line, water treatment for the waste water from washing line, and auxiliary equipment for plastic recycling....
If you are interesting more details of our products, please contact with us no hesitation!
