Film Blowing and Printing Machine Lines

Ruian Hoin Machinery Co., Ltd.
  • After-sales Service：Technical Support Online
  • Warranty：One Year
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：600mm
  • Screw Diameter：50mm

Base Info

  • Model NO.：FB-K-600
  • Automation：Non-Automatic
  • Computerized：Non-Computerized
  • Machine Weight：4300kgs
  • Certification：CE, ISO9001:2008
  • Suitable Material：PE
  • Output：40kg,H
  • Die Size：80mm, 120mm
  • Printing Type：Flexo Printing
  • Printing Plate：Rubber Plate
  • Printing Color：One Color
  • Printing Speed：50m,Min
  • Transport Package：Wooden Package
  • Specification：7500*2000*3200mm
  • Trademark：Hoin
  • Origin：Ruian, Zhejiang, China
  • HS Code：8477309000
  • Production Capacity：30 Sets,One Month

Description

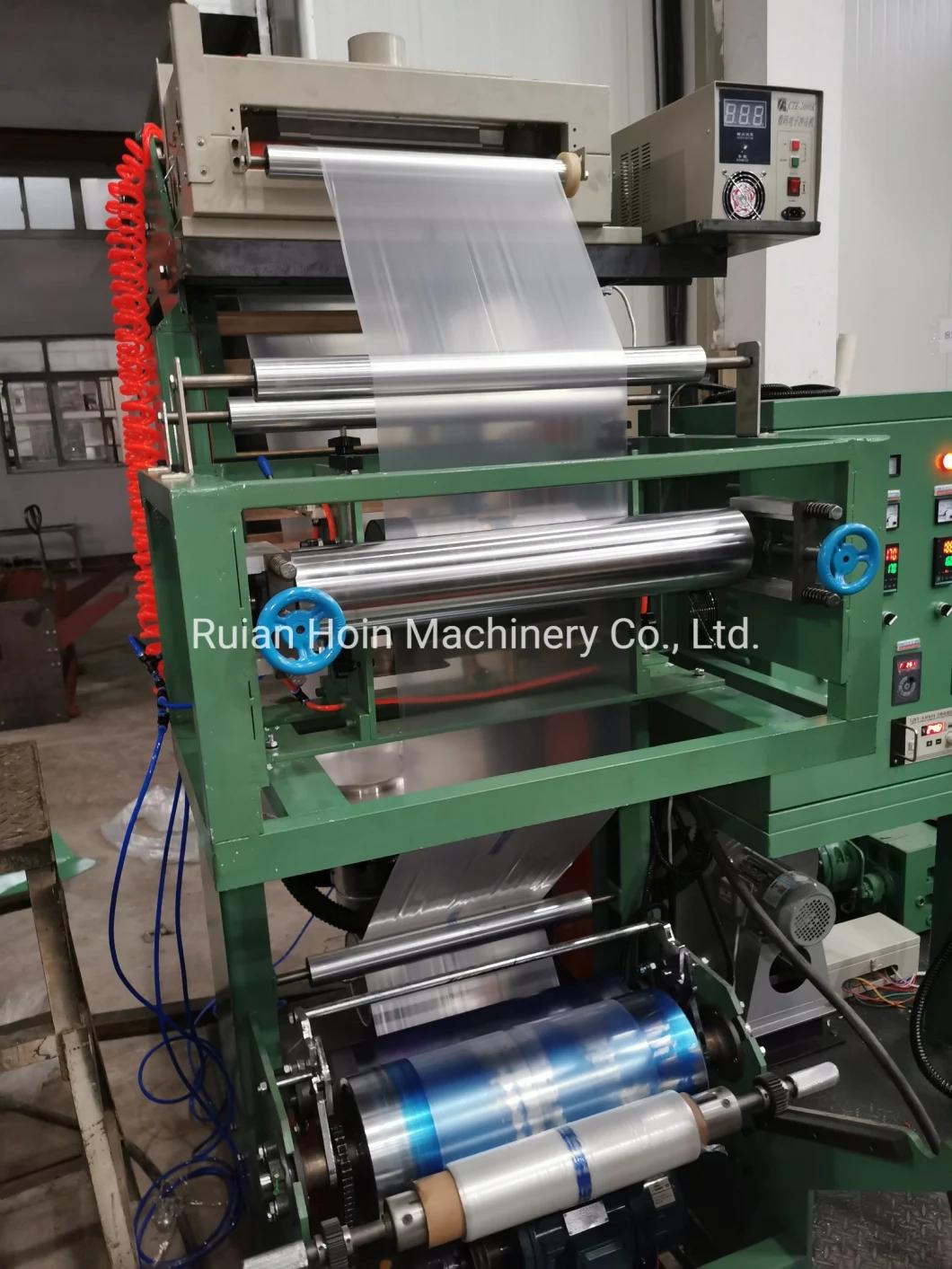

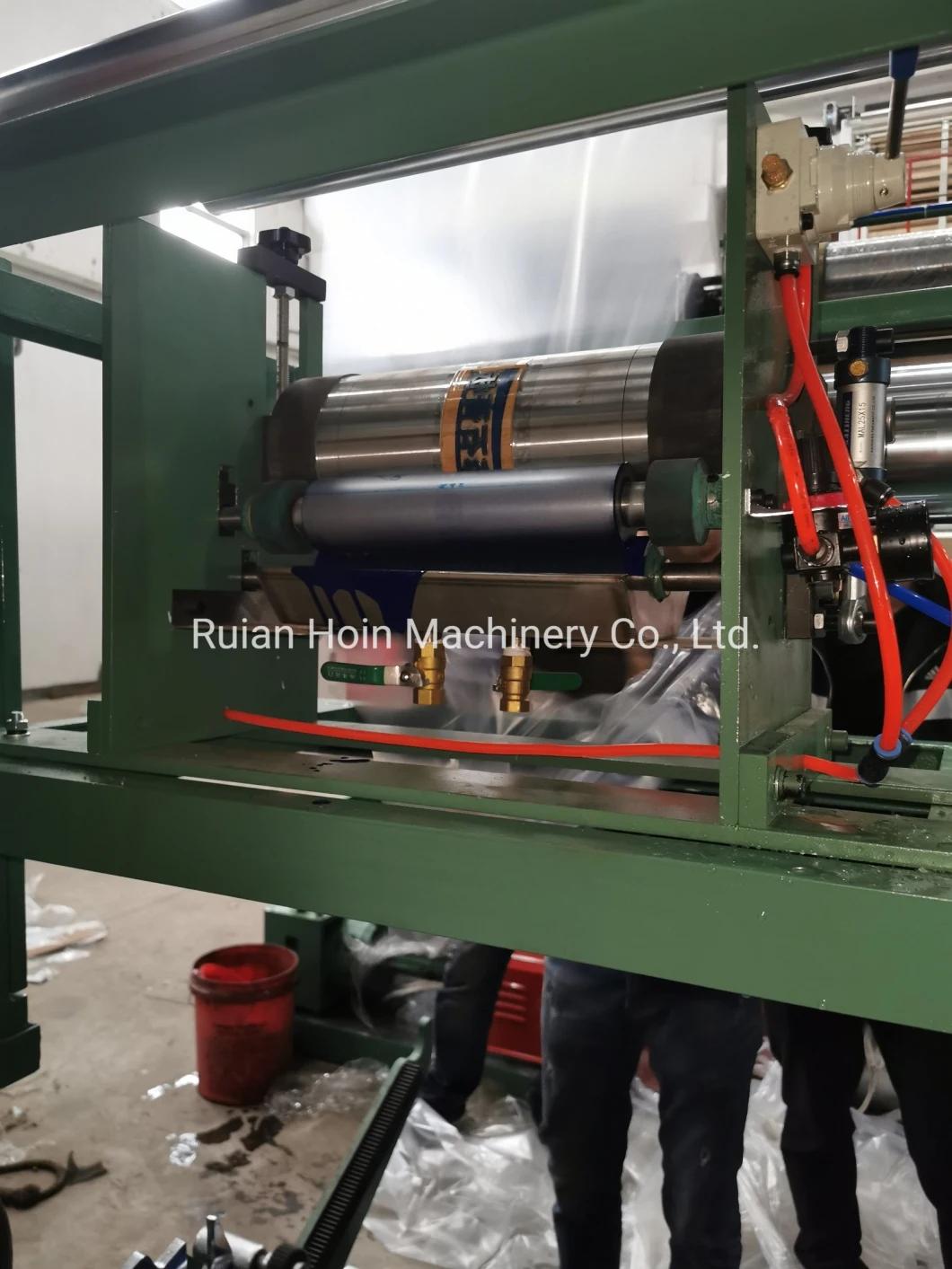

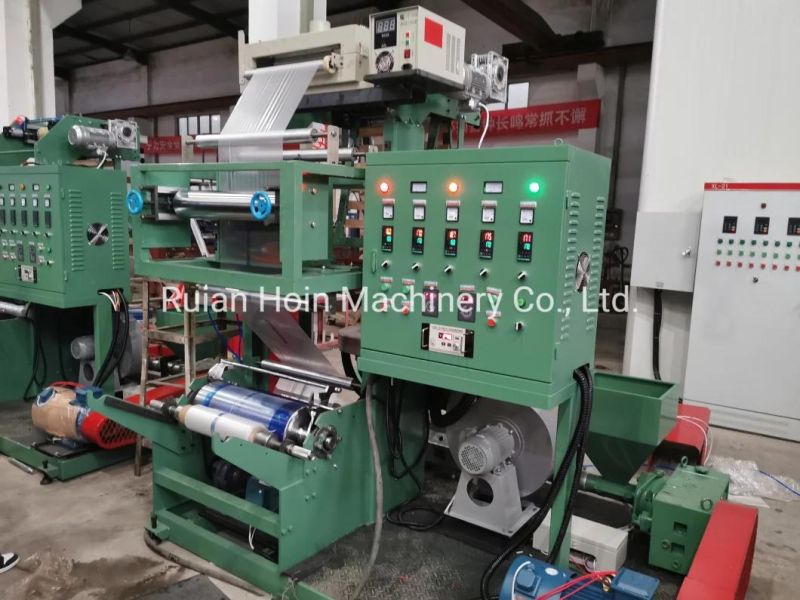

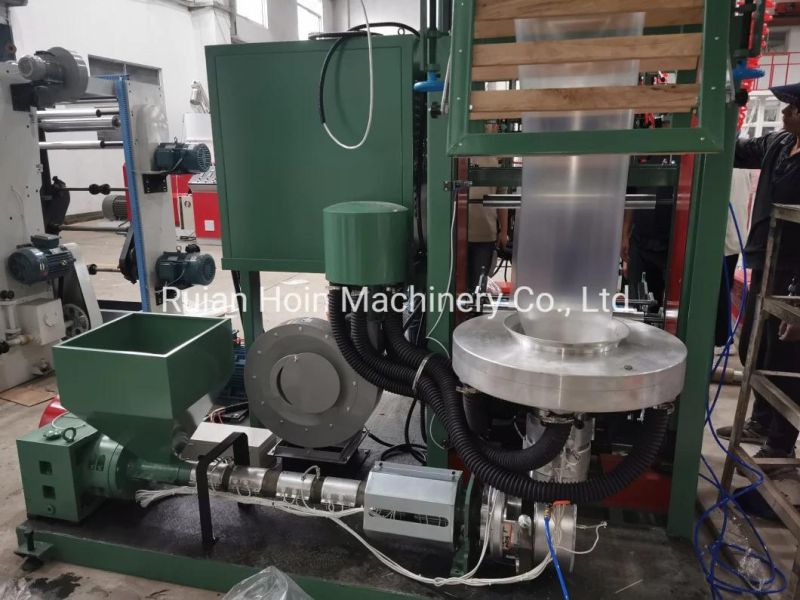

MODLEFB-L-600FB-L-800FB-L-1000Suitable materialLDPE LLDPE   HDPELayfat width of film(mm)6008001000Thickness of film(mm)0.01-0.10Max.extrusion output40kg/h50kg/h60kg/hScrew dia(mm)Φ50Φ55Φ60Screw L/D28:1Main motor(kw)111518.5Dia of   orifice(mm)Φ80/Φ120Φ80/Φ160Φ120/Φ220Printing   length(mm)250-1000250-1000250-1000Precision   of color printing(mm)0.20.20.2Tota power(kw)103640Weight (T)4.356.2Dimension LxWxH(M)7.5x2x3.28x2.4x48.5x2.6x4.6MACHINE PICTURES FOR REFERENCE
Film Blowing and Printing Machine LinesFilm Blowing and Printing Machine LinesFilm Blowing and Printing Machine LinesFilm Blowing and Printing Machine Lines

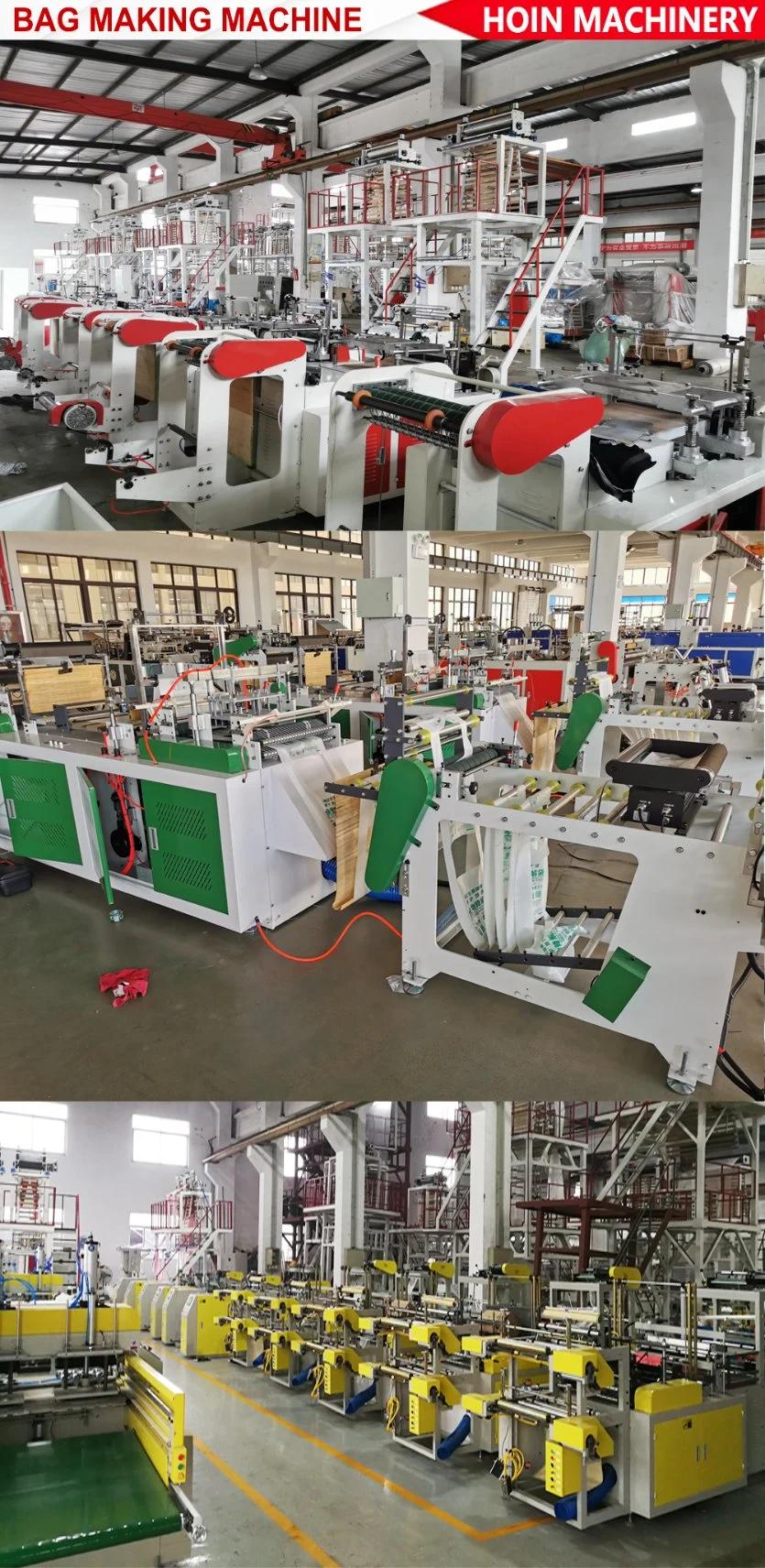

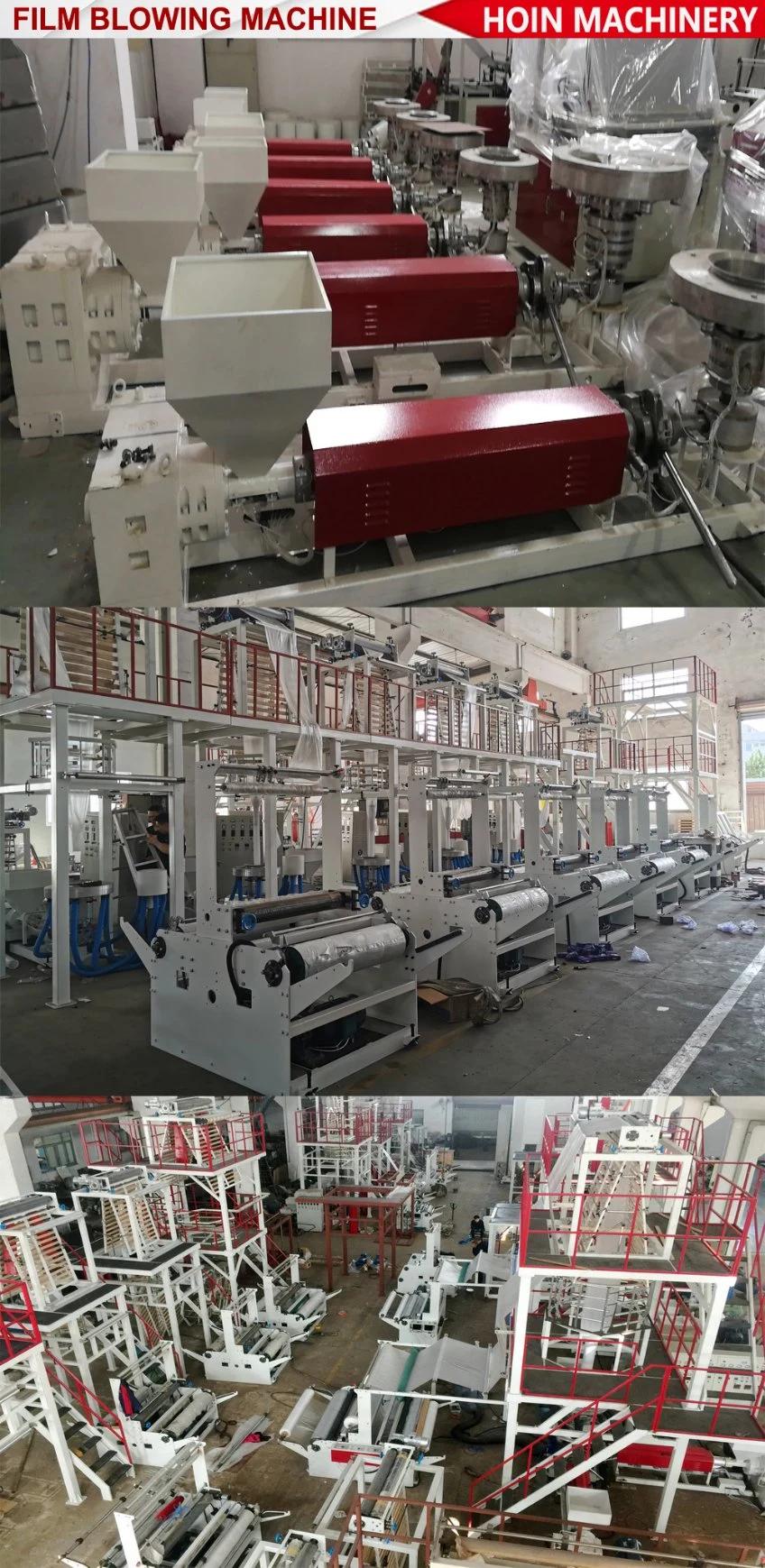

HOIN WORKSHOP
High Speed PE Film Blowing Machine for HDPE LDPE LLDPEHigh Speed PE Film Blowing Machine for HDPE LDPE LLDPEHigh Speed PE Film Blowing Machine for HDPE LDPE LLDPE
MORE PRODUCTSHigh Speed PE Film Blowing Machine for HDPE LDPE LLDPEAfter service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
All our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We also can offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installing machines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.

Any query welcome to contact with us freely.
