• Model NO.：SJ-55,FM800
• Trademark：SANLONG
• Origin：Wenzhou, Zhejiang, China

Basic Info.

Model NO. SJ-55/FM800 Trademark SANLONG Origin Wenzhou, Zhejiang, China

Product Description

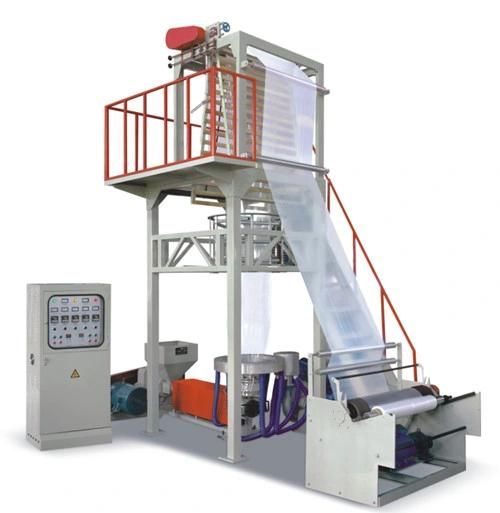

The machine uses HDPE or LDPE as raw materials after being heated, extruded, blown, drawn and winded the materials become cylindrical plastic film, through cutting and sealing, the cylindrical film can be made into food packaging bag, shopping bags or liner bags within woven bag, the film can be used for agriculture film, field film and shed film after one or two side cut in the production processing.
Single extruder with 2 sets of dies can blow 2 rolls of circular films at the same time.
2-color extruder can produce circular film with multi-color strip.

Model	SJ-50/FM600	SJ-55/FM800	SJ-60/FM1000	SJ-65/FM1200
Screw diameter(mm)	Φ50mm	Φ55mm	Φ60mm	Φ65mm
Screw L/D Ratio	L/D28:1	L/D28:1	L/D28:1	L/D28:1
Screw rotation	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Power of main motor	11kw	15kw	18.5kw	22kw
Max.Extrude Output	35kg/h	50kg/h	65kg/h	76kg/h
Single-face Thickess of film	0.006-0.10mm	0.006-0.10mm	0.006-0.10mm	0.006-0.10mm
Max Film Folding Dia	600mm	800mm	1000mm	1200mm
Total Power	18kw	22kw	28kw	32kw
Machine of weight	2800kg	3200kg	3800kg	4600kg
Overall Dimension(L×W×H)	4200×1800×3600mm	4400×2000×3800 mm	4600×2300×4500 mm	4800×2500×4800 mm
