HDPE/LDPE Mini Film Blowing Machine

Ruian Hoin Machinery Co., Ltd.
  • After-sales Service：Technical Support Online
  • Warranty：One Year
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：600mm
  • Screw Diameter：50mm

Base Info

  • Model NO.：FB-E-600
  • Automation：Automatic
  • Computerized：Computerized
  • Machine Weight：2200kgs
  • Certification：CE, ISO9001:2008
  • Suitable Material：LDPE,HDPE,LLDPE
  • Output：40kg,H
  • Die Size：80mm and 120mm
  • Transport Package：Wooden Package
  • Specification：4000*2000*2800mm
  • Trademark：HOIN
  • Origin：Ruian, Zhejiang, China
  • HS Code：8477309000
  • Production Capacity：30 Sets,One Month

Description

MODLEFB-E-600FB-E-800Suitable materialLDPE LLDPE   HDPELayfat width of film(mm)600800Thickness of film(mm)0.008-0.10Max.extrusion output40kg/h50kg/hScrew dia(mm)Φ50Φ55Screw L/D28:1Screw rotation10-100r/minMain motor(kw)1115Dia of   orifice(mm)Φ80/Φ120Φ80/Φ160Tota power(kw)2228Weight (T)2.22.6Dimension LxWxH(M)4x2x2.84.6x2.3x3.8Machine Pictures for Reference:

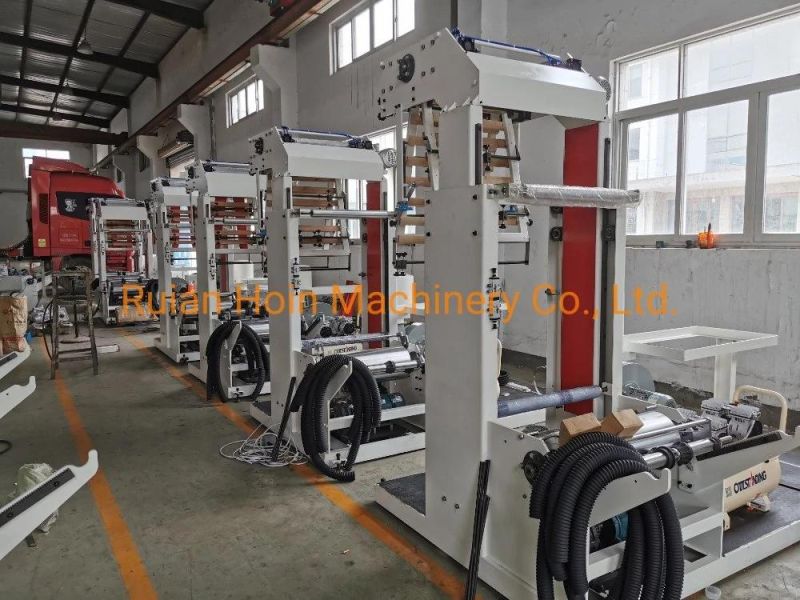

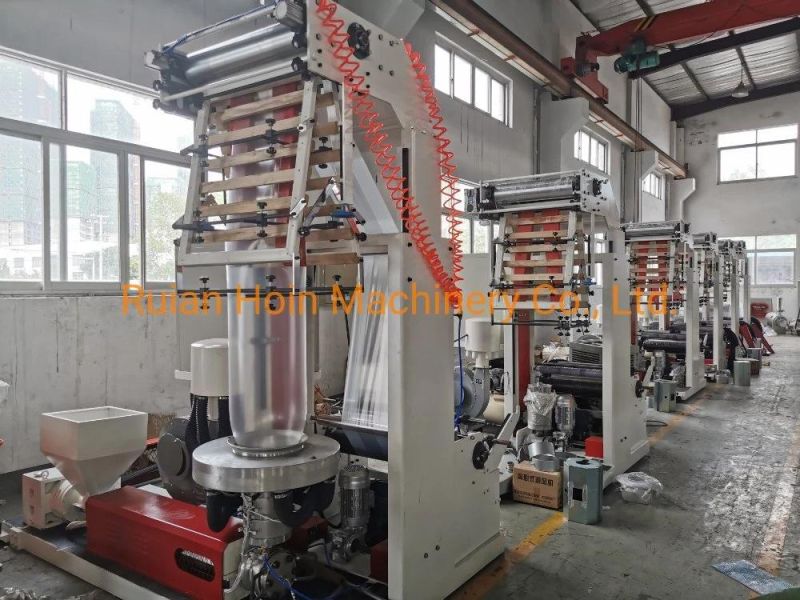

HDPE/LDPE Mini Film Blowing MachineHDPE/LDPE Mini Film Blowing Machine

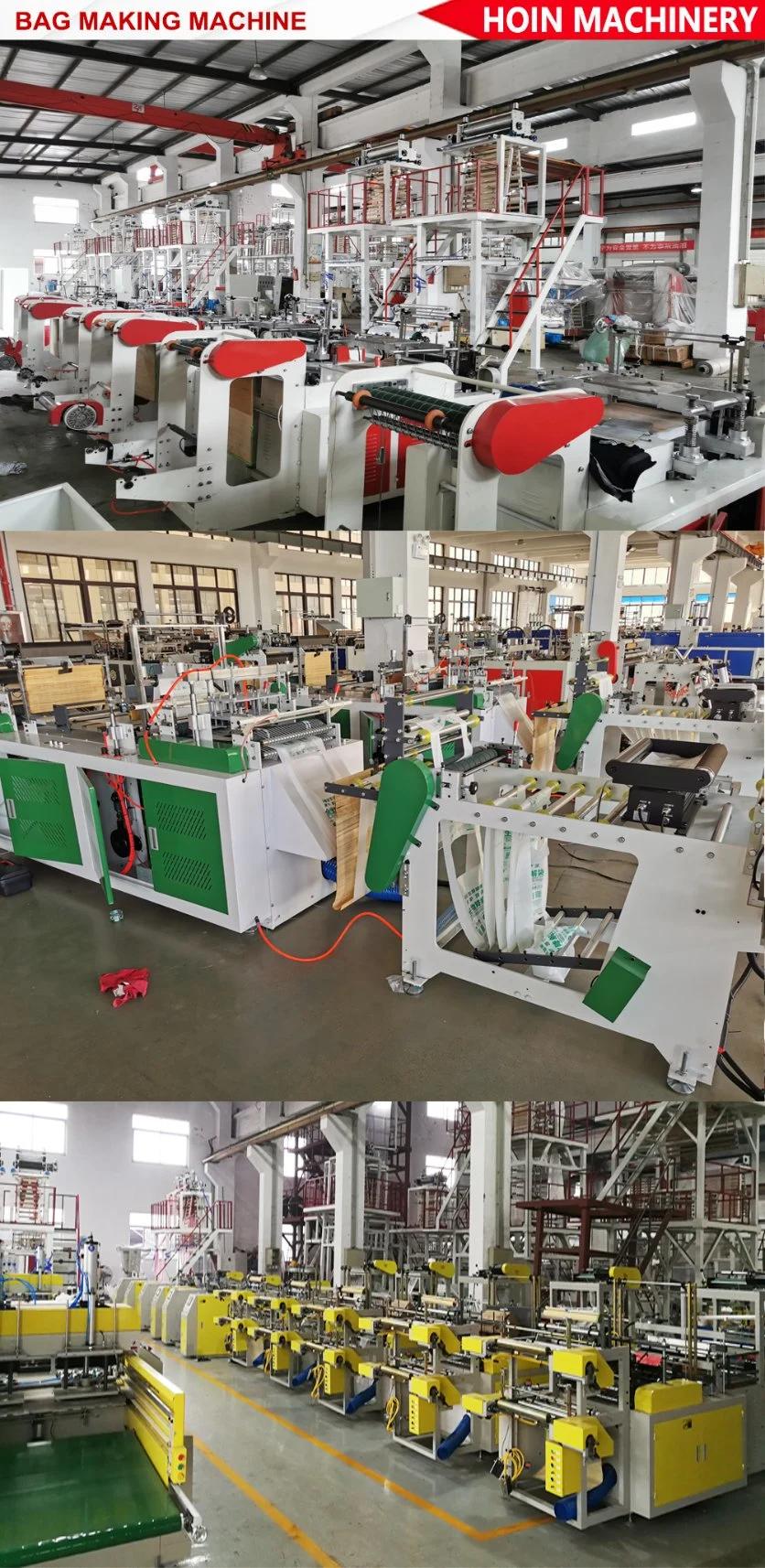

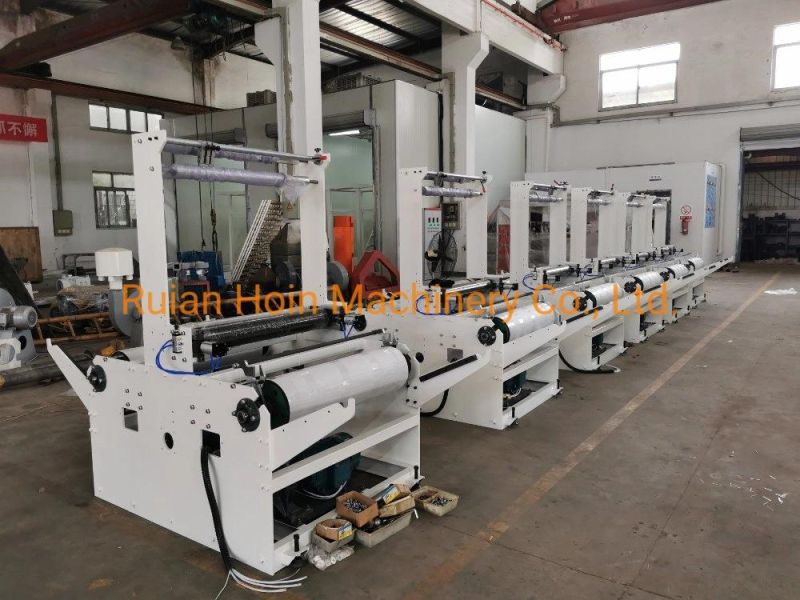

HDPE/LDPE Mini Film Blowing MachineHDPE/LDPE Mini Film Blowing MachineHDPE/LDPE Mini Film Blowing MachineHDPE/LDPE Mini Film Blowing MachineWorkshop of HOIN

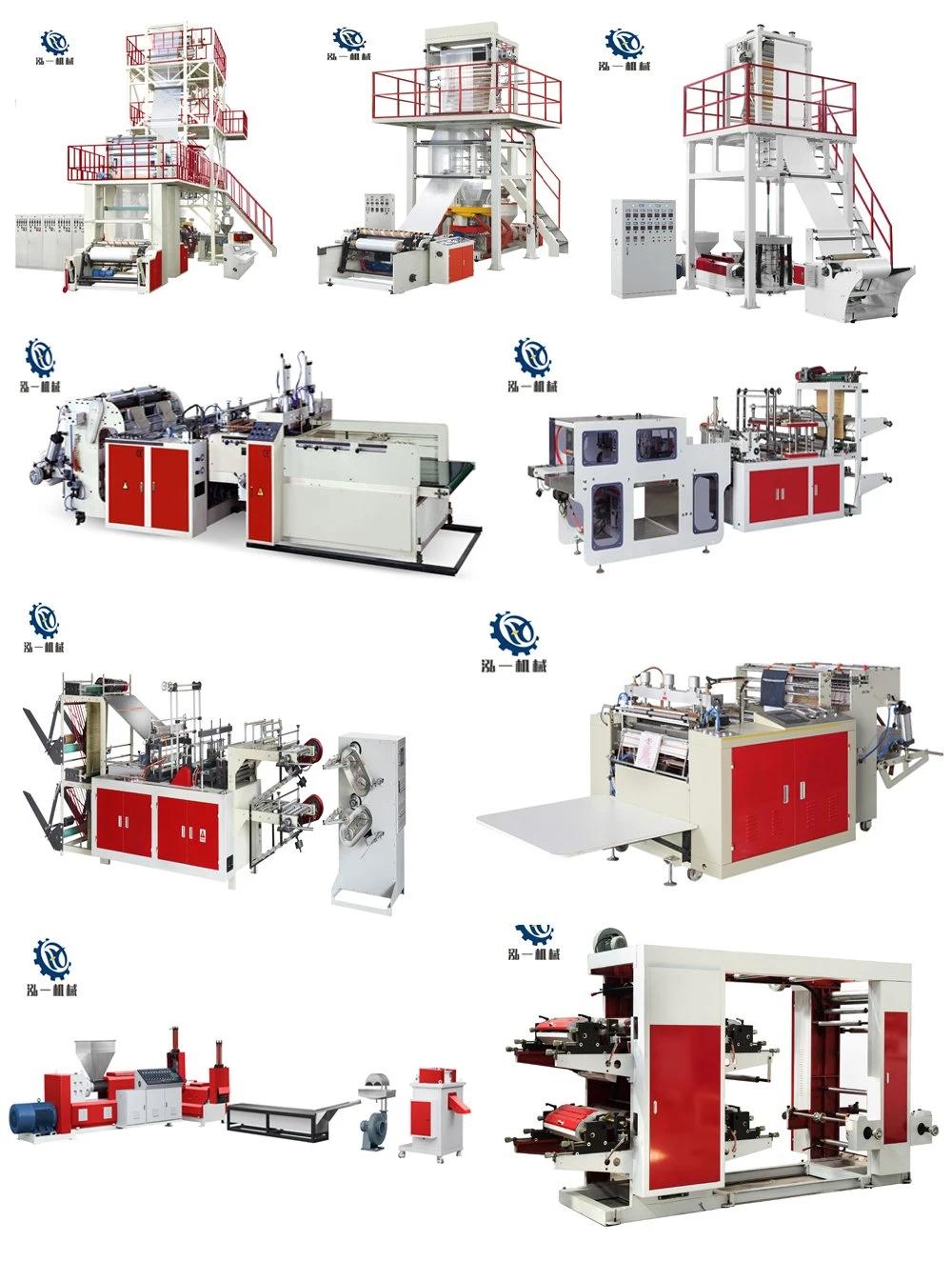

Agricultural Mulch Film Blowing MachineAgricultural Mulch Film Blowing MachineAgricultural Mulch Film Blowing MachineMore Products Optional:
Agricultural Mulch Film Blowing MachineAfter service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Any query please feel freely to contact with us!
