• Model NO.：SKY-SA4
• Bottle Volume：50ml to 2000ml
• Speed：1800bph to 2000bph
• PLC：Simens(Germany)
• Blow Moulding Type：Stretch Blow Moulding
• Bottle Mold：Stainless Steel
• Auxiliary Equipment：Compressed Air, Air Dryer and Filter, Air Tank
• Mold Cavity：4cavity
• Certificate：Ce ISO SGS
• Driven Type：Pneumatic
• Color：Customized
• Transport Package：Non-Fumigation Plywood
• Specification：customized
• Trademark：Sky Machine
• Origin：China
• HS Code：84223010
• Production Capacity：10set,Month

Basic Info.

Model NO. SKY-SA4 Bottle Volume 50ml to 2000ml Speed 1800bph to 2000bph PLC Simens(Germany) Blow Moulding Type Stretch Blow Moulding Bottle Mold Stainless Steel Auxiliary Equipment Compressed Air, Air Dryer and Filter, Air Tank Mold Cavity 4cavity Certificate Ce ISO SGS Driven Type Pneumatic Color Customized Transport Package Non-Fumigation Plywood Specification customized Trademark Sky Machine Origin China HS Code 84223010 Production Capacity 10set/Month

Product Description

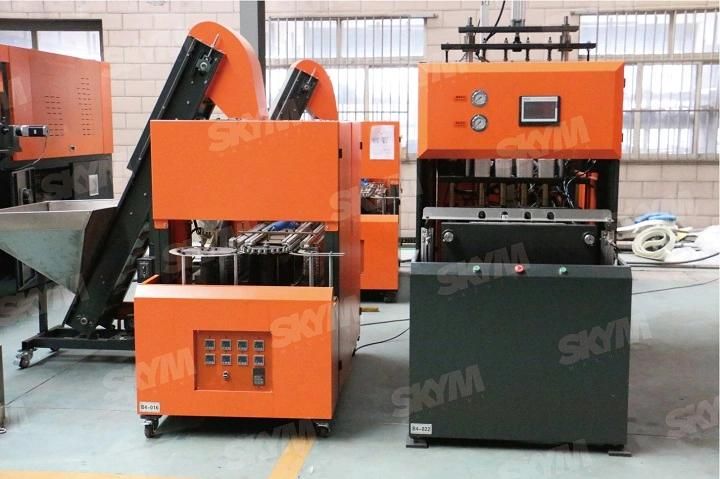

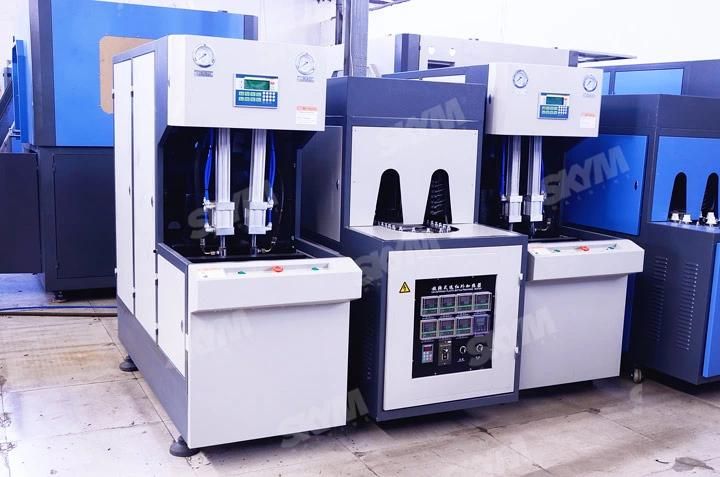

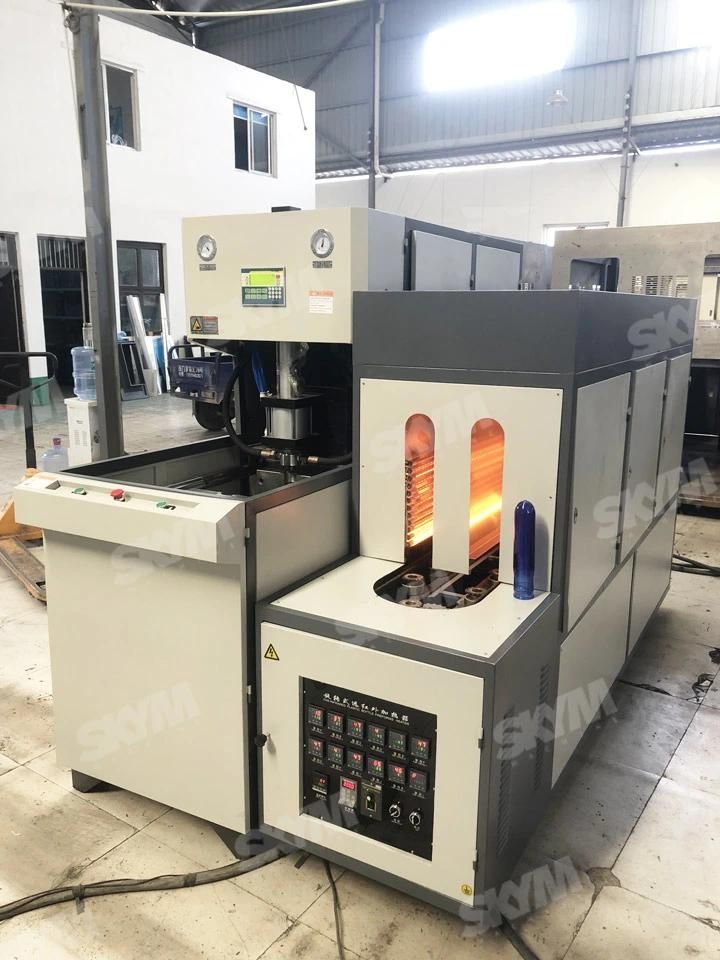

Stretch Blow Molding Machine is suitable to produce different shapes of PET/PC/PE bottles. It can blow from 100ml to 6000ml bottles and is widely used to produce mineral water bottles,carbonater soft drink bottles,juice bottles,medical botties,cosmetic and oil bottles etc.

1,Infrared lamps adoped in the pre-heater ensures PET preforms being heated evenly.
2,Mechanical-double-arm calmping ensures mould being tightly closed under hight pressure and high temperature.
3,Pneumatic system consists of two parts. pneumatic acting part and bottle blowing part in order to meet different requirements for both acting and blowing. It provides sufficient steady high pressure to blowing. It provides sufficient steady high pressure to bloww large irregular shape bottles.
4,Equipped with silencer and oiling system to lubricate the mechanical pars of the machine.
5,Operated step-by-step and in semi-auto maode.
6,Wide-mouth jar and hot-fill bottles can also be made.






Semiautomatic Bottle Blower Model List


Model	Bottle Volume	Theoretical Output	Blower(L*W*H)	Blower/Weight	Heater(L*W*H)	Heater/Weight	Power
SKY-12	10L-25L	90-180pcs/h	218*77*196cm	1000kg	237*68*135cm	380kg	40kw
SKY-8Y	0.01L-2L	1200-1600pcs/h	160*60*161cm	500kg	187*63*145cm	250kg	17.5kw
SKY-SA4	0.01L-2.5L	2000pcs/h	190*88*180cm	1000kg	190*66*160cm	380kg	18kw
SKY-5L	0.01L-5L	300-800pcs/h	175*67*186cm	600kg	187*63*145cm	250kg	17.5kw
SKY-10L	5L-10L	300-500pcs/h	193*72*183cm	800kg	187*63*145cm	250kg	17.5kw

About us:


1. A: Are you factory?How many workers do you have?

    B: Yes,we are factory. our factory is located in zhangjiagang near from shanghai. We have about 50 workers in our factory.

2. A: What about after sale service?

    B: 12months of electrical part and 18months of mechanical part after machine installed and running normally.

3. A: What about installation?

    B: Our engineer can be sent to your country. but customer should pay the air tickets and 100usd as salary per person per day. besides, customer should arrange the accommodation for them during the trip.

4. A: What do we do if we encounter problem about the machine ?

    B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).

5. A: How can you control the quality and delivery?

    B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery .
