• Model NO.：RHC Agglomerator
• Delivery Time：30 Days
• Capacity：100-800kg,H
• Materials：Films,Fiber Pet
• Function：Granules
• Size：1000*500*600mm
• Looking：Beauty
• Working Way：by Hand Working
• Weight：100kg
• Inverter：ABB Brand
• Motor Brand：China Brand
• Transport Package：Wooden Plate
• Specification：CE
• Trademark：sevenstars
• Origin：China, Jiangsu
• HS Code：84778000
• Production Capacity：5sets,Month

ModelData
Capacity(L)
Effective Capacity(L)
Motor Power(kw)
Mainshaft Speed(rpm)
Heating Method
Discharge Method
GHX-100
100
75
37
800
friction
Hand work/
automatic
GHX-200
200
150
55
800
GHX-300
300
225
75
800
GHX-500
500
375
90
750
GHX-800
800
600
110
750

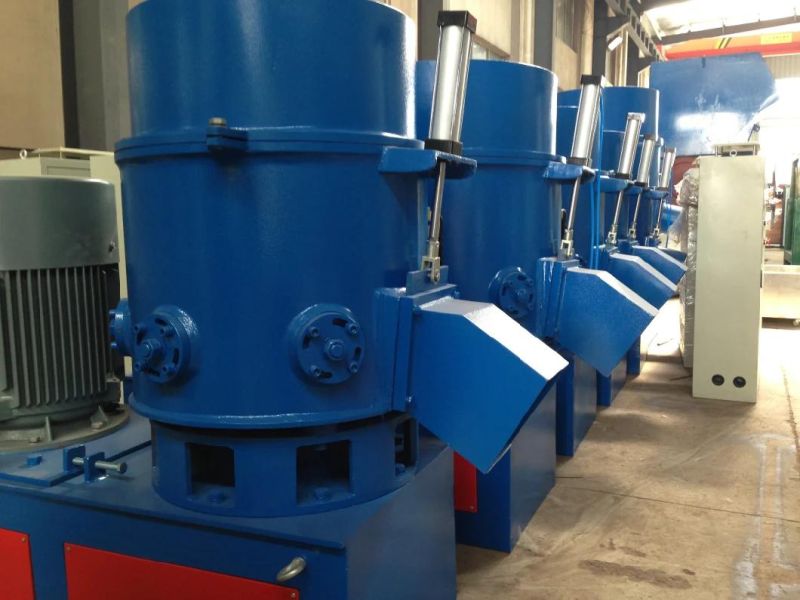

The plastic flakes densifier or agglomerator is used to granulate the thermal plastic films, PET fibres, whose thickness is less than 2 mm into small ganules & pellets directly. The soft PVC, LDPE, HDPE, PS, PP, foam PS, PET fibres and other thermoplastics are suitable for it.

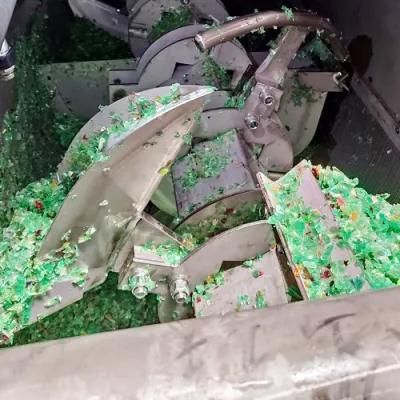

When the waste plastic is supplied into the chamber of such machine, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife. During the crushing processing, the material that soaked up lots heat from the frictional movement of material being crushing and the wall of container will be going to become semi-plasticizing state. The particles will stick with each other due to the function of plasticization. Before it sticks each other completely, the cold water pre-prepared is sprayed into the material being crushed. The water will be evaporated off quickly and the surface temperature of material being crushed drop down quickly also. So the material being crushed will become small particles or granules. It is easy to recognize the particles by different size and can be colored by using of color agent being putted into the container during the crushing processing.
