High Speed Flat Yarn Extruder Line Machine

Wenzhou Wanqun International Trade Co., Ltd.
  • Type：PP Woven Bag
  • Plastic Processed：PP
  • Product Type：Extrusion Molding Machine
  • Feeding Mode：One Feed
  • Assembly Structure：Separate Type Extruder
  • Screw：Single-Screw

Base Info

  • Model NO.：QL-SPL-70,33,850
  • Engagement System：Intermeshing
  • Screw Channel Structure：Deep Screw
  • Exhaust：Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Max.Extrusion Volume：180kg,H
  • Driving Power of Extruder：45kw
  • Diameter of Screw：70mm
  • Transport Package：Suitable to Export
  • Specification：2700*3700*2800
  • Trademark：qunli
  • Origin：China
  • HS Code：8440090000
  • Production Capacity：5sets,Month

Description

Basic Info.

Model NO. QL-SPL-70/33/850 Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Max.Extrusion Volume 180kg/H Driving Power of Extruder 45kw Diameter of Screw 70mm Transport Package Suitable to Export Specification 2700*3700*2800 Trademark qunli Origin China HS Code 8440090000 Production Capacity 5sets/Month

Product Description

Specifications

1,Flat Yarn Extruder
2,Large output
3,Microcomputer control
4,Frequency conversion

>> Performance and Characteristics:
The flat yarn making machine is adopted micro-processor control, frequency conversion governor and setting and displaying technical data may be fully digitized on the basis of absorbing international advanced techniques. The main parts use quality products. The line enlarges L/D ratio and adopts new type of separating screw and widens mixing smelt zone on the extruder screw pot which is specially processed using quality steel, fine plasticized effect, low energy consumption in relation to output. For the change filter system of the film stretching line, we apply advanced automatic belt change filter. The bake-board is changed into advanced hot drawing oven and principal technical index of the line reaches international advancing level. The winding machine is of friction-free drive and constant tape tension wind, good formation quality of the fiber drum. The line has the performance of high speed, top yield, low energy consumption, good forming quality of the fiber drum. The structure of the line is compact with a pleasing appearande, smooth running, flexible and reliable control, sophisticated manufactrue engineering, convenient operation and reliable production, it can be used in producting flat fiber form thermoplatic, such as polypropylene(PP) and high-density polyethylene(HDPE) etc.

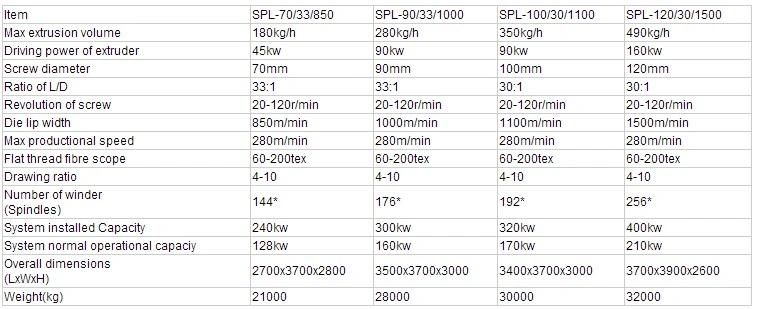

>> Main Technical Parameters
High Speed Flat Yarn Extruder Line Machine

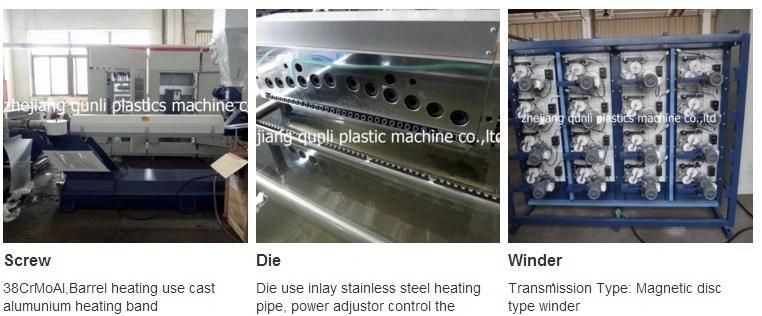

The Machine Details

High Speed Flat Yarn Extruder Line Machine

High Speed Flat Yarn Extruder Line Machine

Our company detailsHigh Speed Flat Yarn Extruder Line Machine

High Speed Flat Yarn Extruder Line Machine
High Speed Flat Yarn Extruder Line Machine

Other details
Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 60-90 days

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
