Hegu PVC WPC Door Frame Profiles Extruder Making Machine Sjms65/132

Qingdao Tongsan Plastic Machinery Co., Ltd.
  • After-sales Service：Engineer Oversea Service
  • Warranty：12 Month
  • Type：WPC Door Extrusion Line
  • Plastic Processed：WPC
  • Product Type：Profile Extrusion Molding Machine
  • Feeding Mode：One Feed

Base Info

  • Model NO.：SJMS65,132
  • Assembly Structure：Integral Type Extruder
  • Screw：Twin-Screw
  • Engagement System：Full Intermeshing
  • Screw Channel Structure：Deep Screw
  • Exhaust：Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Main Motor Power：37kw
  • Motor Brand：Siemens
  • Inventer：ABB
  • Contactor：Schneider
  • Temperature Controller：Omron
  • Transport Package：Sea Worth Package
  • Specification：SJMS65,132
  • Trademark：HEGU
  • Origin：China
  • HS Code：84772090
  • Production Capacity：160-240kg,H

Description

1 set1,connical double screw extruder Conical double screw extruder specially designed for making PVC WPC door frame.Hegu PVC WPC Door Frame Profiles Extruder Making Machine Sjms65/132

2,SJSZ65/132 extruderModel: SJMS65/132 model

Main power: 37KW
Capacity: 150-240 kg/h
Max. product width: 300-600mmHegu PVC WPC Door Frame Profiles Extruder Making Machine Sjms65/1323,Die head and moldFor making solid door frame, it is necessary to increase the calibrator length to be 300mm*3 piece or 300*4 piece.Hegu PVC WPC Door Frame Profiles Extruder Making Machine Sjms65/1324,calibrating mold and the water cooling tank should be 2000mm*2 pcs or 3000mm*2 pcsHegu PVC WPC Door Frame Profiles Extruder Making Machine Sjms65/1325,calibrating tableLength of table: 8meter customized
width of table: 1100mm, valiable inner width is 600mm material of table: stainless steelHegu PVC WPC Door Frame Profiles Extruder Making Machine Sjms65/1326,calibrating tablecooling method: water cooling and vacuum cooling.
vacuum pump: 7.5kw*1 sets,+5.5kw*2 setsHegu PVC WPC Door Frame Profiles Extruder Making Machine Sjms65/132

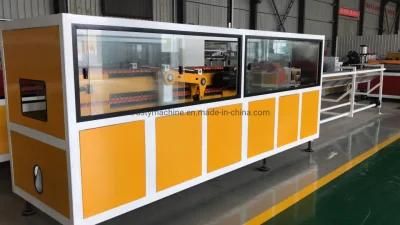

7,haul off and cutting machine

Haul off type: double caterpillar
length of haul off: 2.4 meter
control of haul off: frequency control
motor : 1.5 kw
gearbox: double gearboxHegu PVC WPC Door Frame Profiles Extruder Making Machine Sjms65/1328,haul off and cutting machinecutting method: automatic cutting
cutting control: PID control
Length: fix length cutting
 9,Electric control cabinetABB inverterSiemens contractorOmron temperatureSiemens PLC is optional

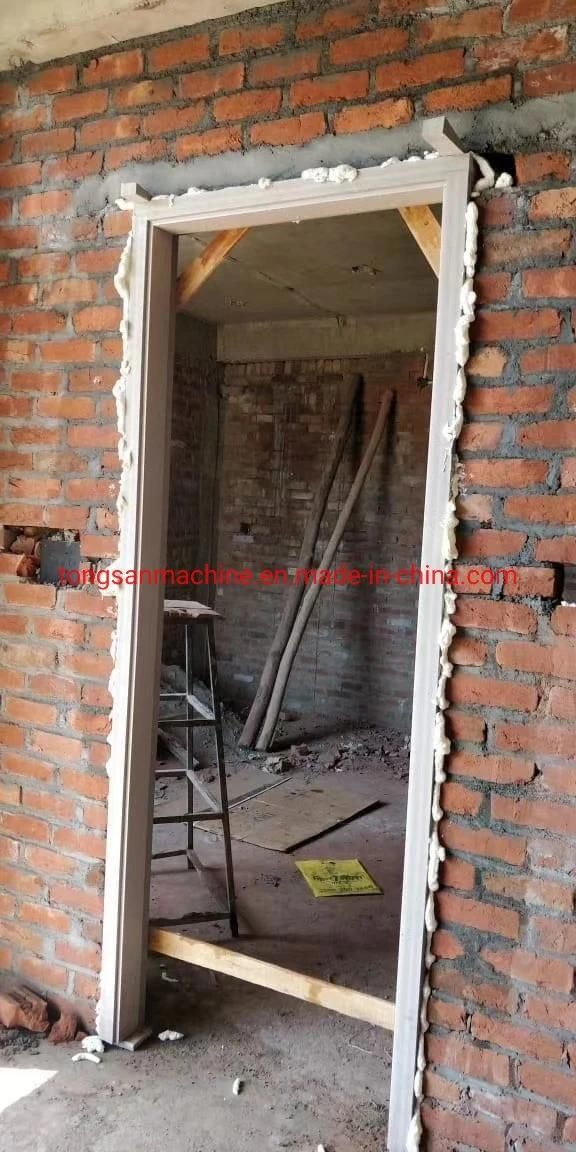

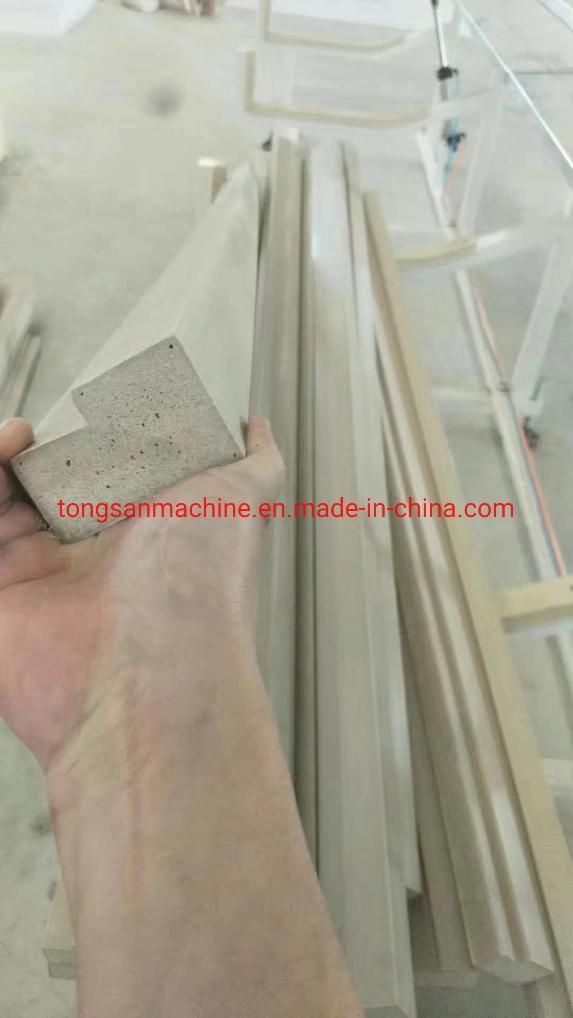

Door frame application
Hegu PVC WPC Door Frame Profiles Extruder Making Machine Sjms65/132Hegu PVC WPC Door Frame Profiles Extruder Making Machine Sjms65/132Hegu PVC WPC Door Frame Profiles Extruder Making Machine Sjms65/132
