• Model NO.：YZJ-PET recycling machine
• Other Name：Pet Flakes Washing Recycling Machine
• Warranty：12 Months
• Capacity：300-1500kg,H
• Object：Waste Pet Plastic Bottles
• Application：Pet Bottle Waste Plastic Washing Recycling
• Color：Selectable
• Transport Package：Film Packing, Standard Sea Freight Packing
• Specification：500kg
• Trademark：YZJ
• Origin：Sichuan
• HS Code：8477800000
• Production Capacity：5sets,Month

Basic Info.

Model NO. YZJ-PET recycling machine Other Name Pet Flakes Washing Recycling Machine Warranty 12 Months Capacity 300-1500kg/H Object Waste Pet Plastic Bottles Application Pet Bottle Waste Plastic Washing Recycling Color Selectable Transport Package Film Packing, Standard Sea Freight Packing Specification 500kg Trademark YZJ Origin Sichuan HS Code 8477800000 Production Capacity 5sets/Month

Product Description

Product Description

PET Bottle Waste Plastic Crushing Washing Recycling Machine
PET bottle waste plastic crushing washing production machine is designed to crush waste plastic bottles to flakes and separate PET bottles flakes from PE/PP flakes, this recycling line includes label removing, sorting, detecting metal, crushing, floating washing, hot washing, rubbing, rinsing, dehydration, drying and packaging, to produce high quality PET bottle flakes. The complete production line design process is reasonable, a high degree of mechanization, less investment, easy maintenance, re-use the waste plastic bottles to protect the environment, improving white pollution.

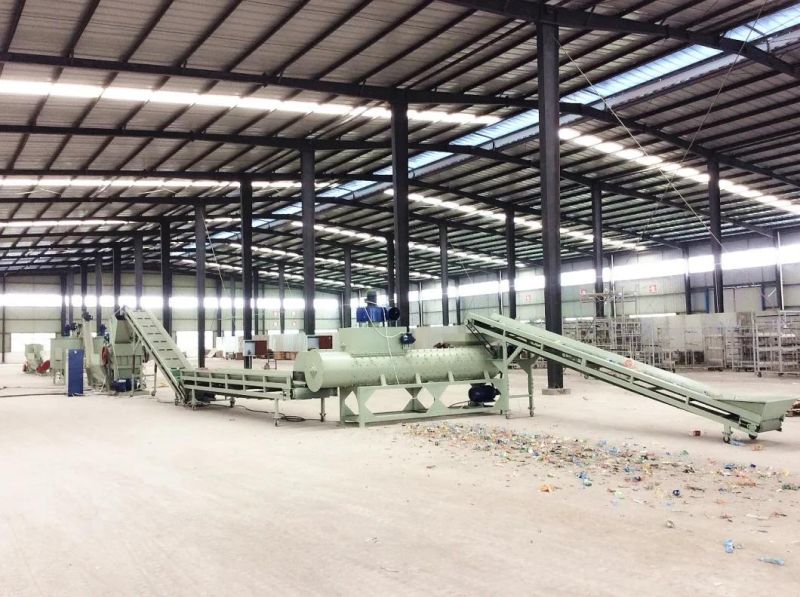

The whole PET Bottle Waste Plastic Crushing Washing Recycling Machine Line includes:
1) Belt Conveyor: The materials go into the crusher by the crawler belt, which is move by inside scroll wheel.
2) Label Separator: Remove the label from the bottles.
3) Manual Sorting Belt: If the label still in the bottle, worker can remove the label by hand. In addition, can separate the different color by hand.
4) Belt Conveyor: The materials go into the crusher by the crawler belt, which is move by inside scroll wheel.
5) Crusher: Crush the material.
6) Screw Loader: Put the flakes into the Hot washer to clean.
7) Hot Washer: If the bottle is very dirty, like oil, sand, it must be use hot washer.
8) Screw Loader: Put the flakes into the High-speed Friction Washer to clean.
9) High-speed Friction Washer: After crushing material from enters the mouth, through the high speed on the axis of the blade flap and spray water to the common function of good cleaning effect.
10) Floating Washer 1: It used in cleaning pet flakes, make the flakes cleaner and whiter. Also is the necessary equipment of the bottle and bottle cap.
11) Floating Washer 2: It used in cleaning pet flakes, make the flakes cleaner and whiter. Also is the necessary equipment of the bottle and bottle cap.
12) Dewatering: Rejection the water from the flakes, moisture content is less than 2%.
13) Drying Pipeline
14) Silo: Storage materials.
15) Electrical Control Cabinet: PLC control.

Main Parts Images:

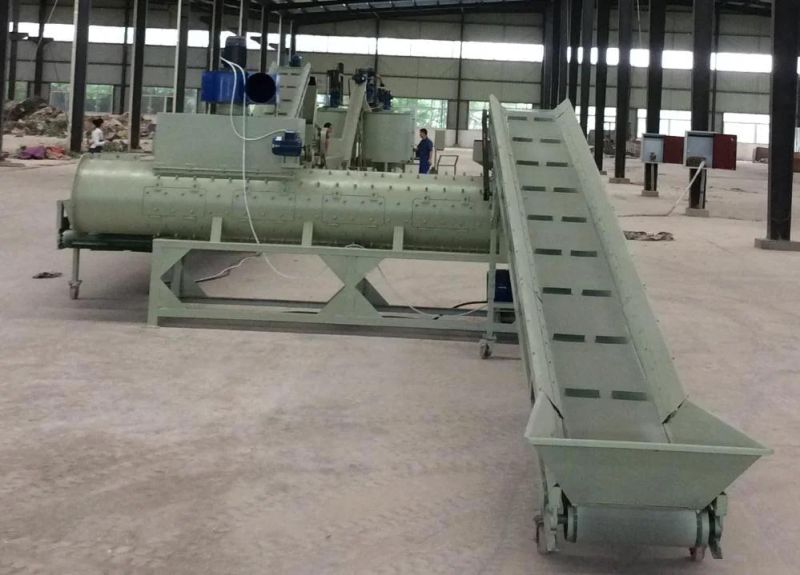

Conveyor and Label Separator

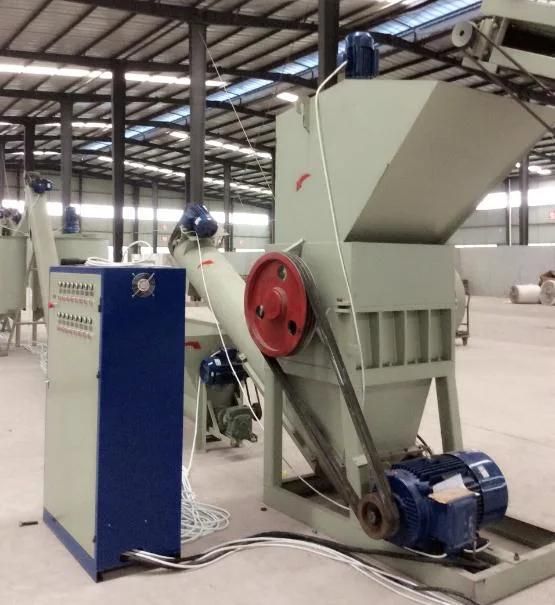

Crusher and Electrical Control Cabinet

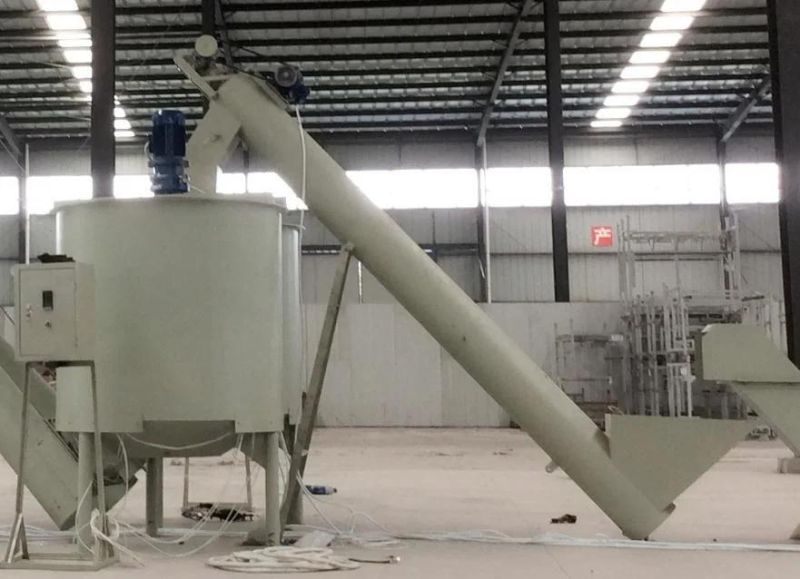

Hot Washer and Screw Loader

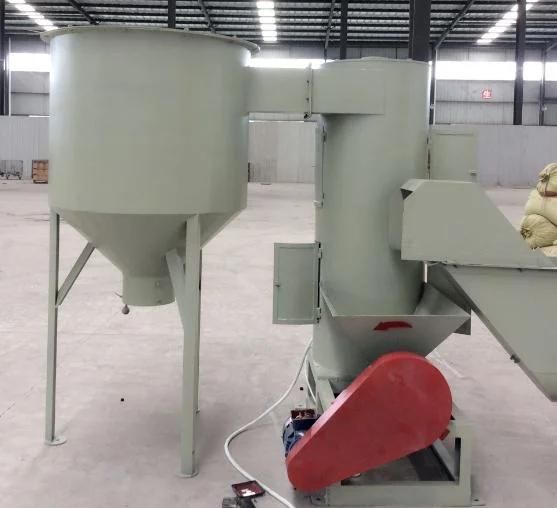

High-speed Friction Washer and Screw Loader


Drying Machine And Packing System


PS: We have been engaged in manufacturing waste plastic crushing washing recycling machine for over 20 years, we can provide the most reasonable and efficient machine for you based on your specific production requirements and regional characters.
