1600mm ABC Film Blowing Machine with IBC and Horizontal Oscillating Unit

Xiongqiu Plastic Machinery Co., Ltd.
  • Type：Multi-Layer Co-extrusion Film Blowing Machine
  • Raw Material：LDPE
  • Maximum Folding Width of Film：1500mm
  • Screw Diameter：65mm * 3
  • Automation：Automatic
  • Computerized：Computerized

Base Info

  • Model NO.：FMI3-1600
  • Machine Weight：10T
  • Certification：CE, ISO9001:2008
  • Voltage：380V 50Hz 3phase
  • Transport Package：Warp Film Packing for Container Shipment
  • Trademark：Xiongqiu Plastic Machinery Co., Ltd.
  • Origin：Guangdong, China
  • HS Code：8477300000

Description

LDPE / LLDPE / HDPEthickness0.02--0.20mmfilm width1100mm1400mm1600mm2000mmmax output80kgs/hr105kgs/hr150kgs/hr215kgs/hr Extruder30:1temp. controller15 zone15 zone16 zone16 zonebarrel cooling120w*4120w*4120w*6250w*6driving motor11kw*318.5kw*322kw*330kw*3 Die headSpiral mandrel die chrome plated surface 40Crcooling fan2.2kw3kw4kw5.5kw Take up  part±360°corrective systemauto corrective oriented system Winderauto-loader device, film surface treater, air compressor,, fast change net, auto rewinder, double wind air ring, IBC inner cooling die head

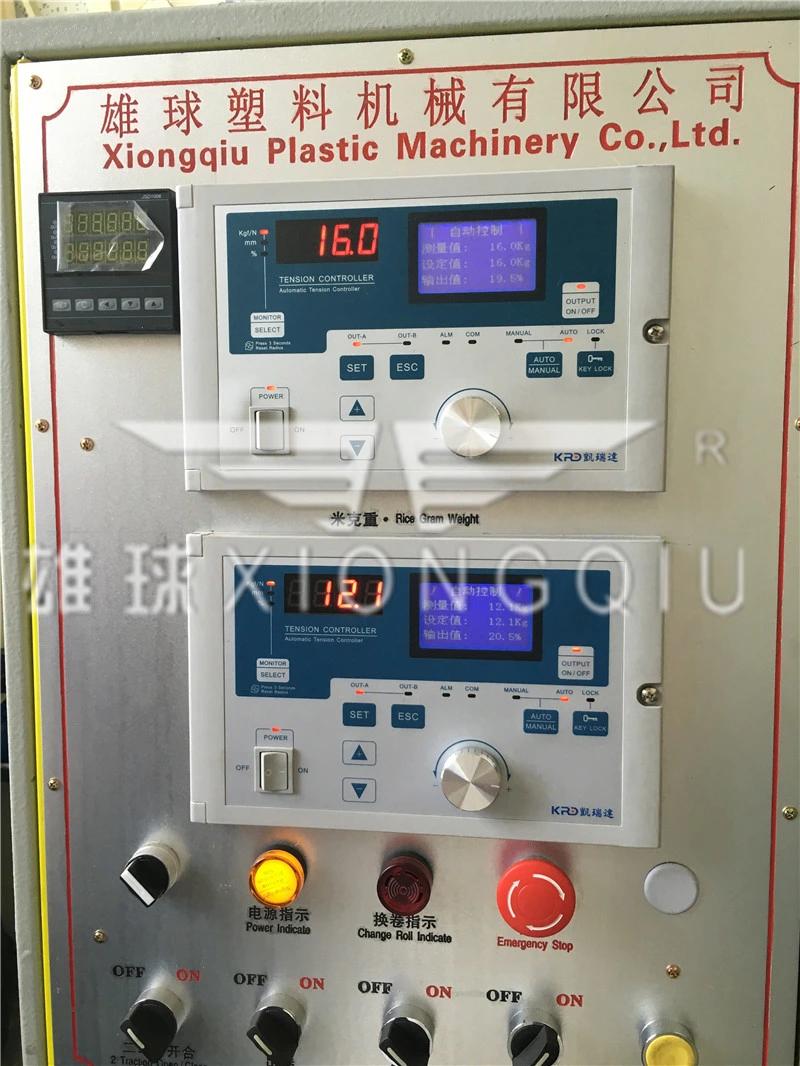

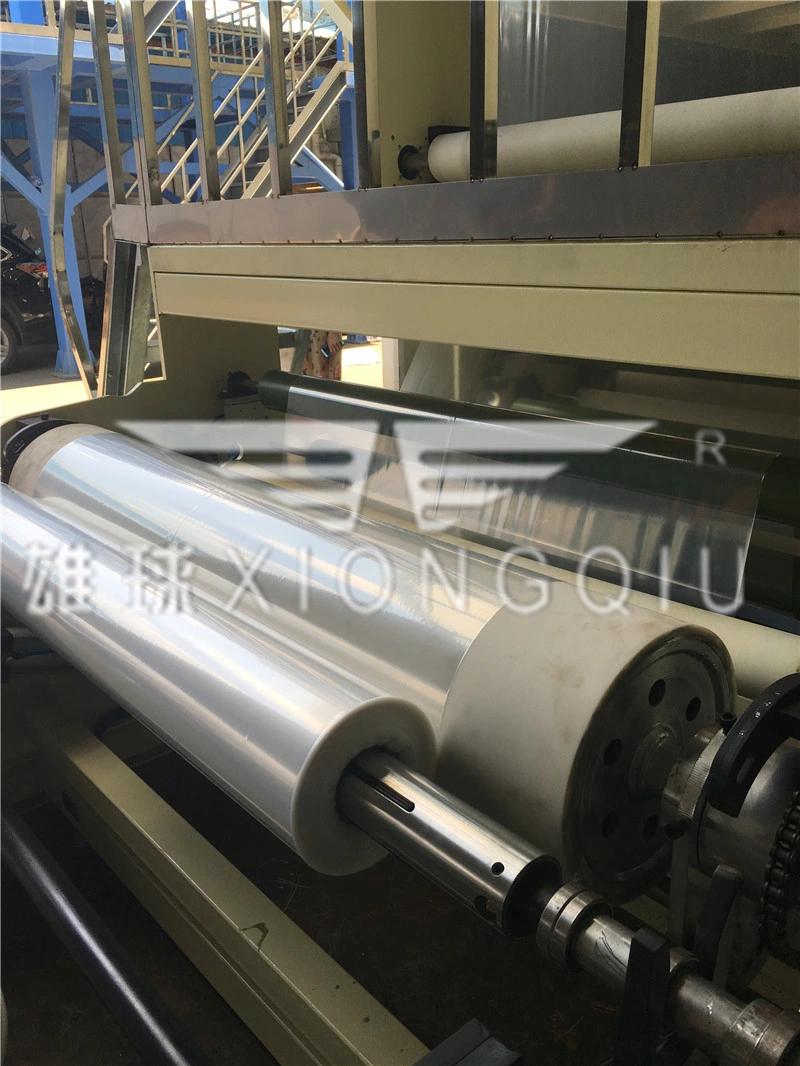

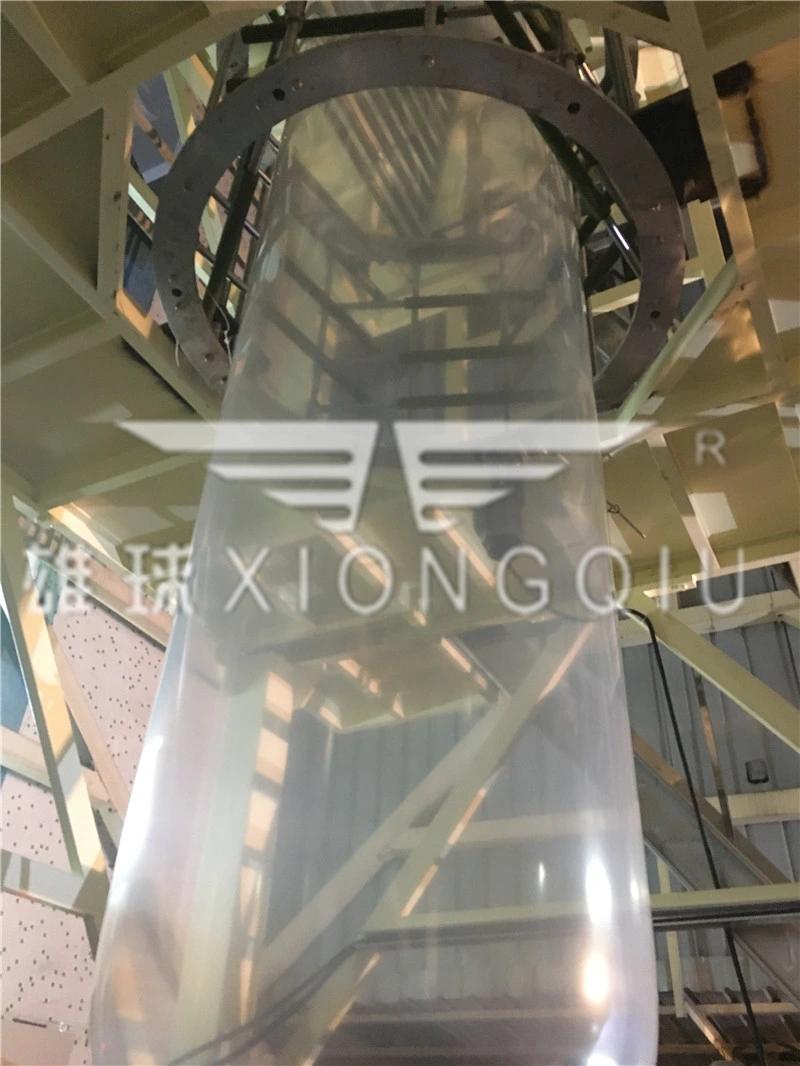

More pictures for reference:

1600mm ABC Film Blowing Machine with IBC and Horizontal Oscillating Unit
1600mm ABC Film Blowing Machine with IBC and Horizontal Oscillating Unit
1600mm ABC Film Blowing Machine with IBC and Horizontal Oscillating Unit
