WPC Single-Screw Extrusion Line
SKY WIN Technology Co., Ltd.- Type：Profile Extruder
- Plastic Processed：PE
- Product Type：Extrusion Molding Machine
- Feeding Mode：One Feed
- Assembly Structure：Integral Type Extruder
- Screw：Single-Screw
Base Info
Description
Product Description

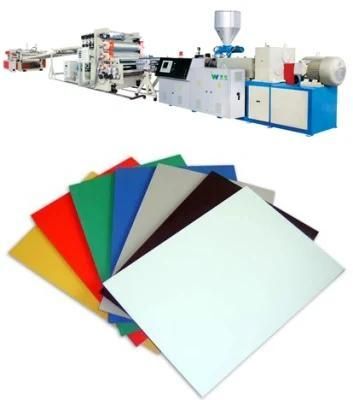

Application:To produce profiles, sheets, thick-plates, pipes with WPC (PE/PP+wood powder) pellets.
Technical Parameters
| Equipment Type | Output (KG/H) | Total Power(KW) | L/D Ratio | Screw Rotary Speed(R/Min) | Outline Dimension (MM) | Weight(KG) |
| SWMSD-1 | 40-60 | 54 | 28-36 | 30-60 | 11000*1200*2550 | 2800 |
| SWMSD-2 | 70-120 | 86 | 28-36 | 30-60 | 21000*1600*2800 | 5500 |
| SWMSD-3 | 80-140 | 110 | 28-36 | 30-60 | 21500*1600*2900 | 6500 |
| SWMSD-4 | 80-180 | 150 | 28-36 | 30-60 | 22500*1800*3100 | 7500 |
| SWMSD-5 | 120-240 | 205 | 28-36 | 30-60 | 16900*2500*3100 | 9000 |
