• Model NO.：SJ160
• Power：220kw
• Transport Package：Wood Pallet and PE Film
• Specification：ISO9001, CE
• Trademark：BEIER MACHINERY
• Origin：China
• HS Code：84772090
• Production Capacity：20set,Year

Basic Info.

Model NO. SJ160 Power 220kw Transport Package Wood Pallet and PE Film Specification ISO9001, CE Trademark BEIER MACHINERY Origin China HS Code 84772090 Production Capacity 20set/Year

Product Description

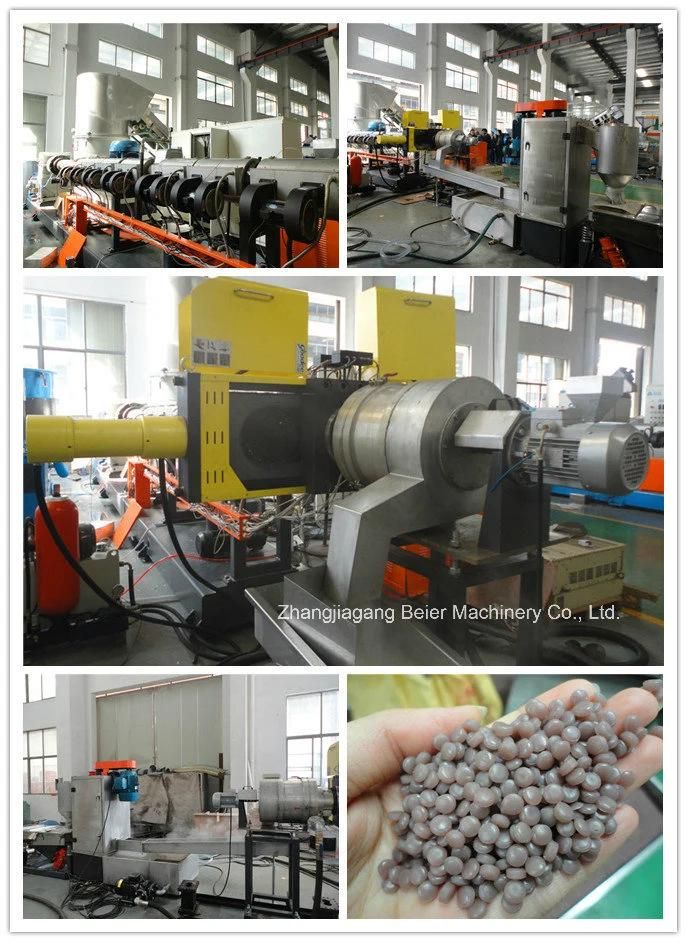

PE Film Agglomeration Pelletizing Line (Water ring type)

This production line is ideal equipment for recycled plastic pelletizing,  PE, PP film scrap, HDPE, PP industrial flakes. This line is of new design, reasonable configuration, steady operation, low noise, low consumption and high output.

Feature:

1. High-efficient force-feeder ensures high capacity feeding, low energy consumption

2. Single screw extruder, equipped with specially designed screw & barrel, venting system, has a very good output capacity.

3. Pelletizing style: water ring type or strand type for your choice.

4. Auxiliary machine: Pellets cooling & classifying

Main technical parameter

Belt conveyor
1000L Agglomerator (motor power: AC 110KW)
SJ160/34 Single screw extruder
Diameter of screw: 160mm, L/D: 34
(Motor power: AC 220KW)
Hydraulic screen changer
Die&Water ring cutter&Conveying channel
Centrifugal dryer
Vibrator
Silo

 Capacity: 700-800kg/h
