• Model NO.：CHSJ-ML ABC
• Machine Weight：4T

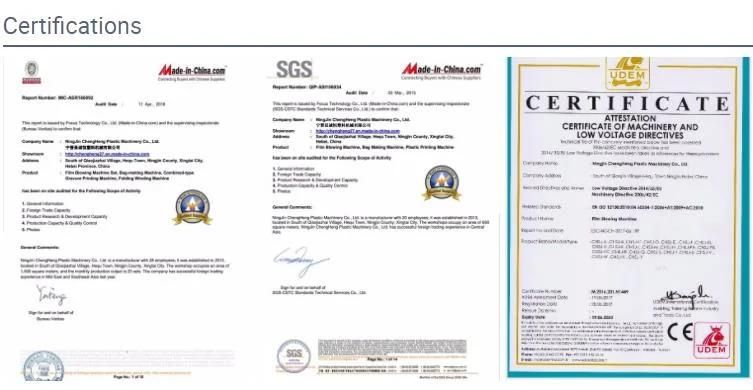

• Certification：CE, ISO9001:2008
• Film Width(Folding Diameter)：300-1800
• Film Thickness(mm)：0.007-0.05
• Extrusion Capacity：150-380 Kg,H
• Winding Speed M：30-80,Min
• Transport Package：Wooden-Box , Nude
• Specification：SGS
• Trademark：Chengheng
• Origin：China
• HS Code：8477300000
• Production Capacity：50 Sets,Year

ModelABC-45-50-45/1200   ABC-50-55-50/1400  ABC-55-65-55/1600  ABC-65-75-65/1800Width of the film250-1100mm   300-1300mm  500-1500mm 500-1700mmThickness of the film0.006-0.15mmThe max output135kg/h   155kg/h 185kg/h  205kg/h
According to different width,thickness of film, die size and raw material characteristics to changeRaw materialHDPE/LDPE/LDPE/RECYCLE/CACO3Power consumption28kw/h   32kw/h  35kw/h  40kw/hWeight4200kg   5200kg  9800kg  10200kgOverall dimension(L*W*H)m6.5*2.7*5.8  6.5*3*6.2  6.5*3.8*6.8   6.8*4*7.5Extruder unitDiameter of screwΦ45/50/45  Φ50/55/50   Φ55/65/55  Φ65/75/65
SACM645 wearproof Alloy steel,five years guaranteeL/D ratio of screw30:1Rotation speed of screw10-120r/mBarrel FanZone 3 barrels install over-temperature fanGear box146#   173#   200#   225#
Extruder special hard gear reducer,tooth grinding teeth hardened, internal and external oil circulation systemMain motor15kw    22kw    30kw   37kw
100% Original three-phase variable frequency motor  Equipped with inverter controlDie head unitDie diameter
 60mm   80mm  120mm   250mm  360mm
With 40Cr steel forging finishing, eight feed trough runner,Uniform flow channel,blown plasticizing effectrotary electric machine motor            0.75kw                                 rotation mode                                  360 degreeCool unitAir ring typeLDPE double vents vacuum air ring
HDPESingle outlet air ringAir ring materialHigh quality Taiwan cast aluminum alloy air ringBellow power  4kw   5.5kw   7.5kw   11kw Shanghai production of high-pressure mute fanTraction unitWidth of take up roller1200mm  1400mm   1600mm   1800mm Traction roller materialsilicone roll
NBR rollerTake up motor1.5kw  2.2kw  3.0kw
Installation of RV series reducer variable frequency motor inverter controlTake up speed100m/minconstant tension traction motor1.5kw frequency control        10N.m torque controlwidth of traction roll700mm  900mm   1200mm   1400mm Embossing rollerhot embossing unit
cold embossing unitLambdoidal board
 Wooden flannel wrapped
Aluminum roller guide Bubble stabilizing ringElectric aluminum roller guide
Manual wood floor Guide rollerAluminum guide roller (HV300-HV700) surface treatmentWinding unitWinding typeSurface friction rewinding, manually change the volumeDrive typeTorque motor equipped RV reducerFilm expanding rollerSmoothing rollThe second traction partIndependent torque control constand tension controlComputer control type7-inch touch screen + process control system
Automatic air supply deviceService

Our Advantage:
1.      First-class and professional service team offer one-stop intimate service. 18 senior technical experts, more than 20 after sales service staff.
2.     No charge for training the technician, let you have nothing to worry about!
3.     Five yearafter-sales service and mechanical parts lifetime warranty.
4.     Life-long free for offering all kinds of technical service and 24 hours after service.(no worry about the time differences)

Order step
     step1. Please let us know which product you like. the model and size, the offers will be sent to you within 24 hours.
     step2.  We make proforma invoice (PI) for you.
     step3. Please check and confirm the PI
     step4. Once we confirmed the order, please pay it soon.
     step5. After payment, all goods will be sent to you in the delivery time.
