• Model NO.：ABLD100

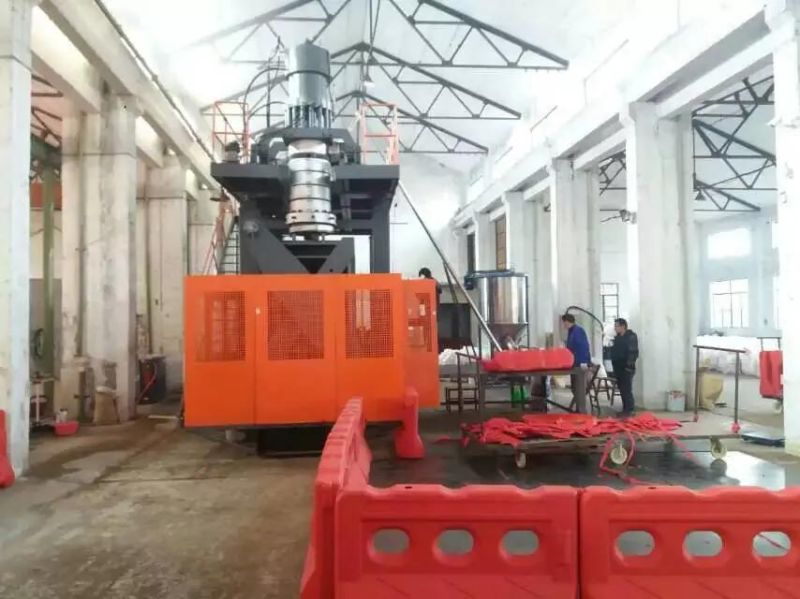

• Application：Drum, Table Board, Roadblocks, Medical Bed Board
• Max. Product Volume：120L
• Blow Molding Machine Weight：20
• Machine Dimension：6.8×3.3×5
• PLC Control：Mitsubishi
• Contactor：Schneider
• Air Valves：Airtac
• Oil Tank Capacity：850L
• Hydraulic Valve：Taiwan Hitech
• Clamping Force：780 Kn
• Screw Diameter：100mm
• L/D Ratio：24:1
• Screw Speed：15~50r.p.m.
• Drive Motor：45kw
• Heating Zone with Cooling Fan：6 Zone
• Transport Package：Film Packaging
• Specification：ABLD100
• Trademark：DAWSON
• Origin：Jiangsu Zhangjiagang
• HS Code：8477301000
• Production Capacity：as Per Samples

extruder1Screw diameter100mm2L/D ratio24:13Screw speed15~50r.p.m.4Drive motor45Kw5Heating zone with cooling fan6 zone6Output/Capacity170 Kg/hr(HDPE  particle)8Heating capacity25.1 kw9Vertical adjustment of head500mm10Forward/Backward adjustment of  head500mm11Groove feed barrel cylinderHave IKV12Gear boxHard gear decelerator13Ladder and safety railsHaveAccumulator  Head1Accumulator capacity20L(15kgHDPE)2DesignFirst in and first out3Heating zone6 zone4Heating capacity25.1kw5Max die&pin diameter450mm6Die head axis with pre-blowØ120mm7Accumulator push-out stroke measurementTransducer  Italy Gefran8Injection pressure12 Mpa9Extruder stopHaveCLAMPING UNIT1Tie barTwo tie bar2Platen size900(W)X1400(H)3Length of mold900-960mm4Clamping force780KN5Close/Open stroke880-1700mm6Mold weightMax.  5000 kg7Clamping stroke measurementTransducer  Italy Gefran8Hydraulic valveTaiwan Hitech9Number of hydraulic cylinder110High pressure14 Mpa11Support parts for platen movementLiner GuideHYDRAULIC SYSTEM1Main motor/vice motorAC15Kw/15Kw2Hydraulic  valveTaiwan Hitech3Hydraulic pumpTaiwan Hitech4Oil tank capacity850L5Operating pressure12 Mpa6Cooling water for oilfixed7Control of oil levelbe observed dipstickPNEUMATIC SYSTEM1Operating pressure0.8 Mpa2Blow pressure0.8 Mpa3Needle blow circuitHigh & low pressure4Intermittent blowHave5Controlled support air for parisonHave6Air ValvesAIRTAC7Quick exhaust for support airHavePARISON CONTROL1ProgrammerJAPAN MOOG2Servo valve
MOOG
 3Servo cylinderIntergret of die head4Hydraulic pack
 TAIWAN YOSHE Variable Displacement Piston Pumps
 ELECTRICITY1Contactor
 Schneider
 2Total connected load (approx.)
 114kw/h3Average energy consumption (approx.)
 42 kw/hWATER COOLING1
Machine water consumption
 6000L/h2
Mold water consumption
 6000L/hAIR CONSUMPTION1Compressed air consumption1.2 kgf/cm2, 3000 L/minOTHER FEATURES1PLC controlMITSUBISHI2Human machine interfaceHitech3Recipe storage in hard diskAvailableHEATING CONTROL1Power supply to heating elementRelay + ContactorJapan Omron+Korea LG2ControlPLC controle3Type of thermocoupleK Type4Adjustable lower and upper limit alarmHave5Cold start prevention for screwHave6Alarm for thermocouple and heating element breakageHave, heating element breakage by anperemeter7Pre-heating functionHaveDie-ring AND Die-pin1one sets of die & pinOne set according to customer2Test materialBuyer supply 300kg material to seller for machine testingOPTION1Bottom blow (hydraulic) and sealing unit (pneumatic)Double blow pin (including expand & up-down & parison seal)2RobotHave3Machine Dimension6.8×3.3×54Total weight20
