• Model NO.：FB-MN
• Automation：Non-Automatic
• Computerized：Non-Computerized
• Machine Weight：1.6t
• Certification：CE, ISO9001:2008
• PE：HDPE,LDPE
• Screw Quantity：1set
• Heating Ring：Cast Aluminum
• Winder Type：Single Station
• Screen Changer：Manual Type
• Take up Section：Fixed
• Auto Screen Changer：Optional
• Corona Treater：Optional
• Auto Loading：Optional
• Rotary Die Head：Optional
• Transport Package：Seaworth Package
• Specification：CE, ISO9001 certificate
• Trademark：HOIN
• Origin：Ruian, Zhejiang, China
• HS Code：8477309000
• Production Capacity：30 Set,Month

Basic Info.

Model NO. FB-MN Automation Non-Automatic Computerized Non-Computerized Machine Weight 1.6t Certification CE, ISO9001:2008 PE HDPE/LDPE Screw Quantity 1set Heating Ring Cast Aluminum Winder Type Single Station Screen Changer Manual Type Take up Section Fixed Auto Screen Changer Optional Corona Treater Optional Auto Loading Optional Rotary Die Head Optional Transport Package Seaworth Package Specification CE, ISO9001 certificate Trademark HOIN Origin Ruian, Zhejiang, China HS Code 8477309000 Production Capacity 30 Set/Month

Product Description

Product DescriptionA: DescriptionThe cylinders and the screw stems of the above extruders are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after revision finishing and nitrogen treatment. The auxiliary machine has a platform working table for making peration easy. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
B. USAGE:
It is used for blowing the various plastic film of low density polyethylene(LDPE), high density polyethylene (HDPE) and linear low density polyethylene(LLDPE) etc, Which are widely used for packing industrial products, textile, garments and food and for cohering farmland.
C.Technology Parameter

Model	FB-MN600	FB-MN800	FB-MN500
Screw Diameter	50mm	55mm	45mm
Screw Ratio	L/D28:1	L/D28:1	L/D28:1
Screw Speed	10-100r/min	10-100r/min	10-100r/min
Power of Main Motor	11KW	15KW	7.5KW
Max. Extrude Output	35kg/h	50kg/h	25kg/h
Max. Folding Width of Film	600mm	800mm	500mm
Single-sided Thickness of Film	0.006 -0.10mm	0.006 -0.10mm	0.006 -0.10mm
Total Power	18Kw	22Kw	15Kw
Weight of Machine	2000kg	2200kg	1800kg
Overall Dimensions(L×W×H)	1500×1800× 2200mm	1500×2000× 2200mm	1500×1600× 2200mm

D: Details Information

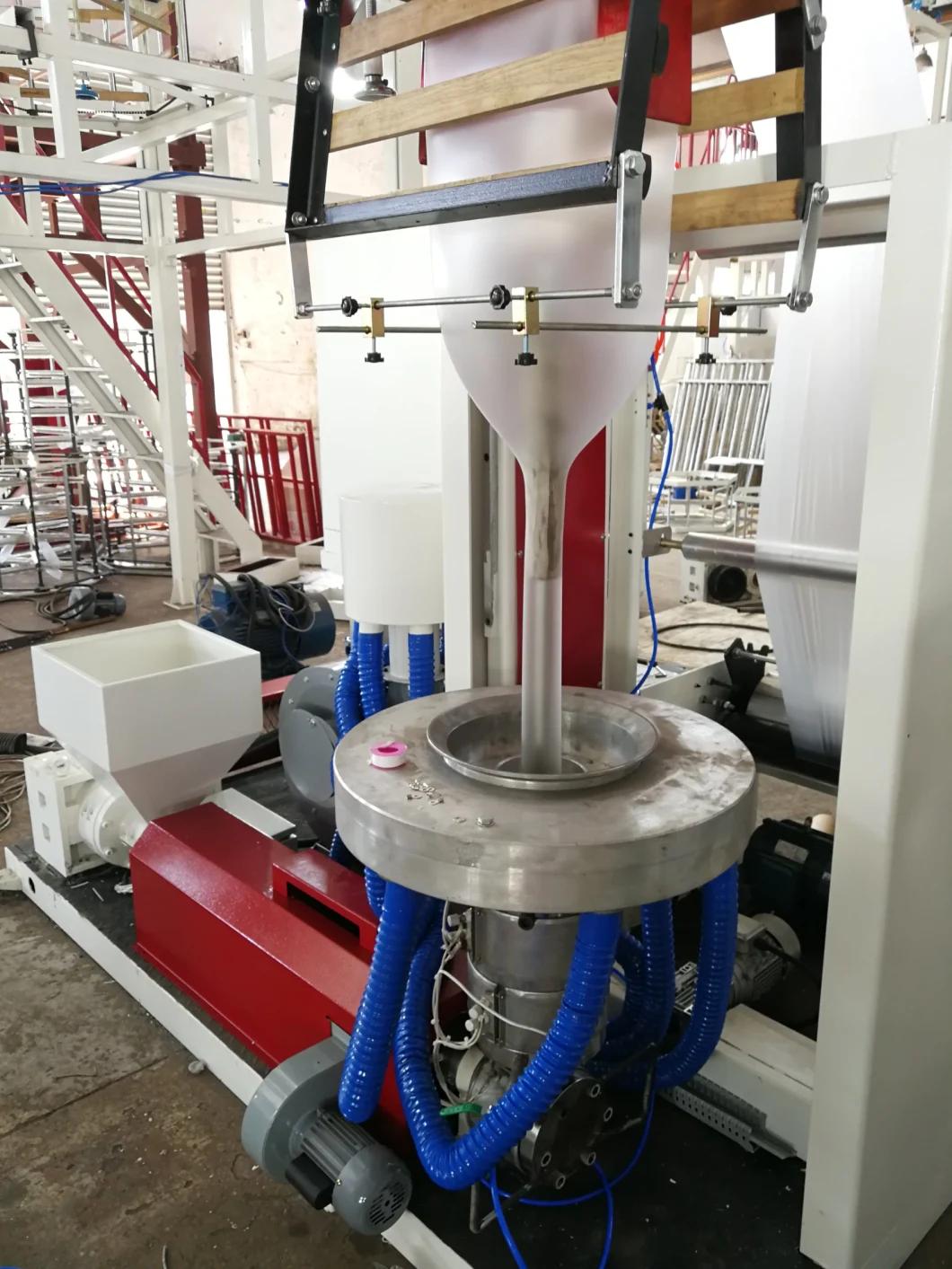

1. Extruder Unit
Die Head Material: Cr40 Mould Steel
Die Head Heating: Steel Stainless
Rotary Die Head: Optional
Screw and Barrel Material: 38CrMoALA
Screw and Barrel Heating:3Zones
Heating Ring Material: Steel Stainless
Screen Changer: Manual Type
Gear Box: Hard Tooth Surface Gear Box

2. Take Up Section

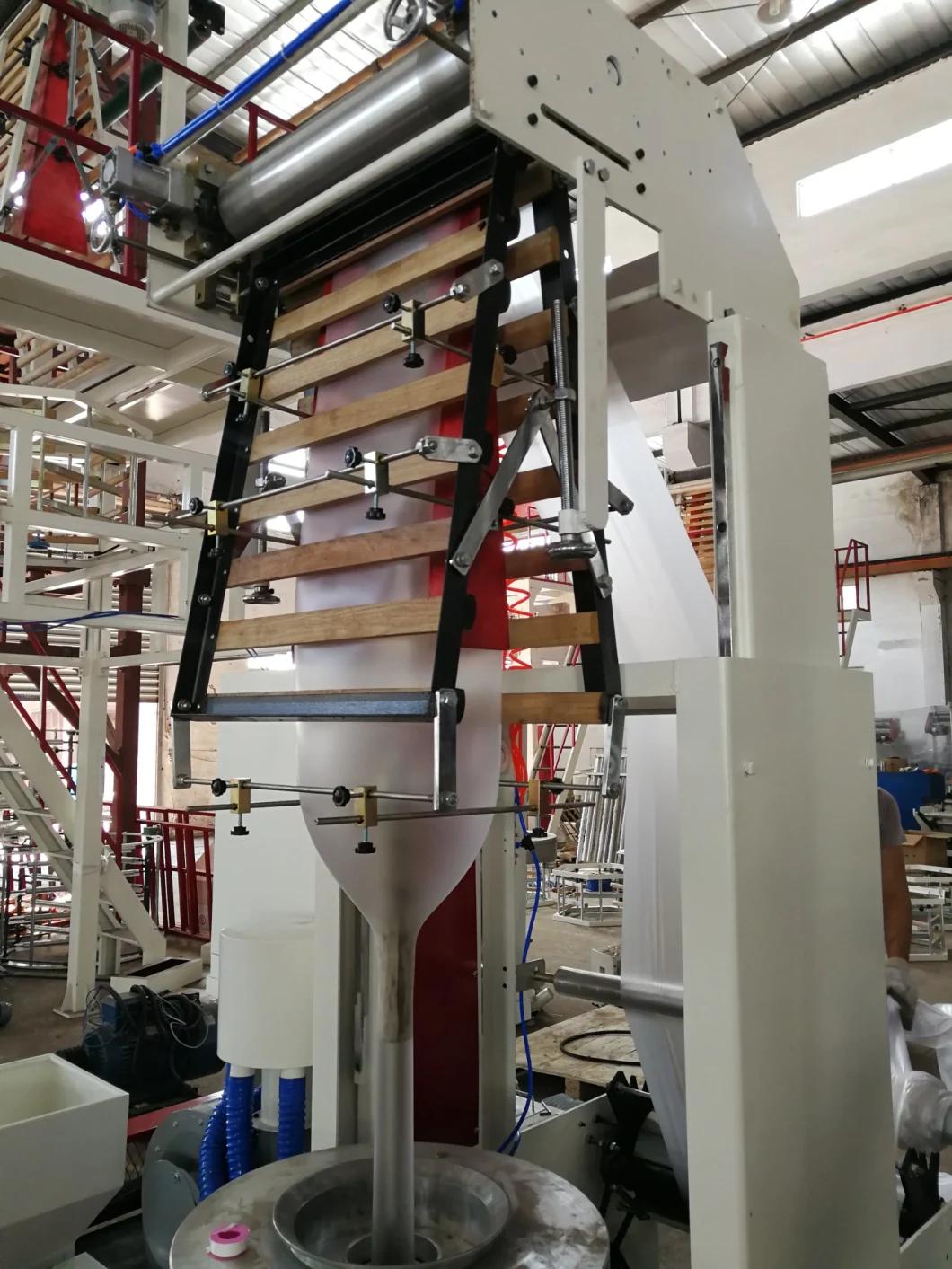

'A' Shape Film Forming Plate: Wooden Bar Type
Film Bubble Setting Ring: Wooden Bar Type
Take Up Motor:Three-Phase Asynchronous Motor with Worm Gear Reducer
Take Up Rollers Grasp: Air Cylinder

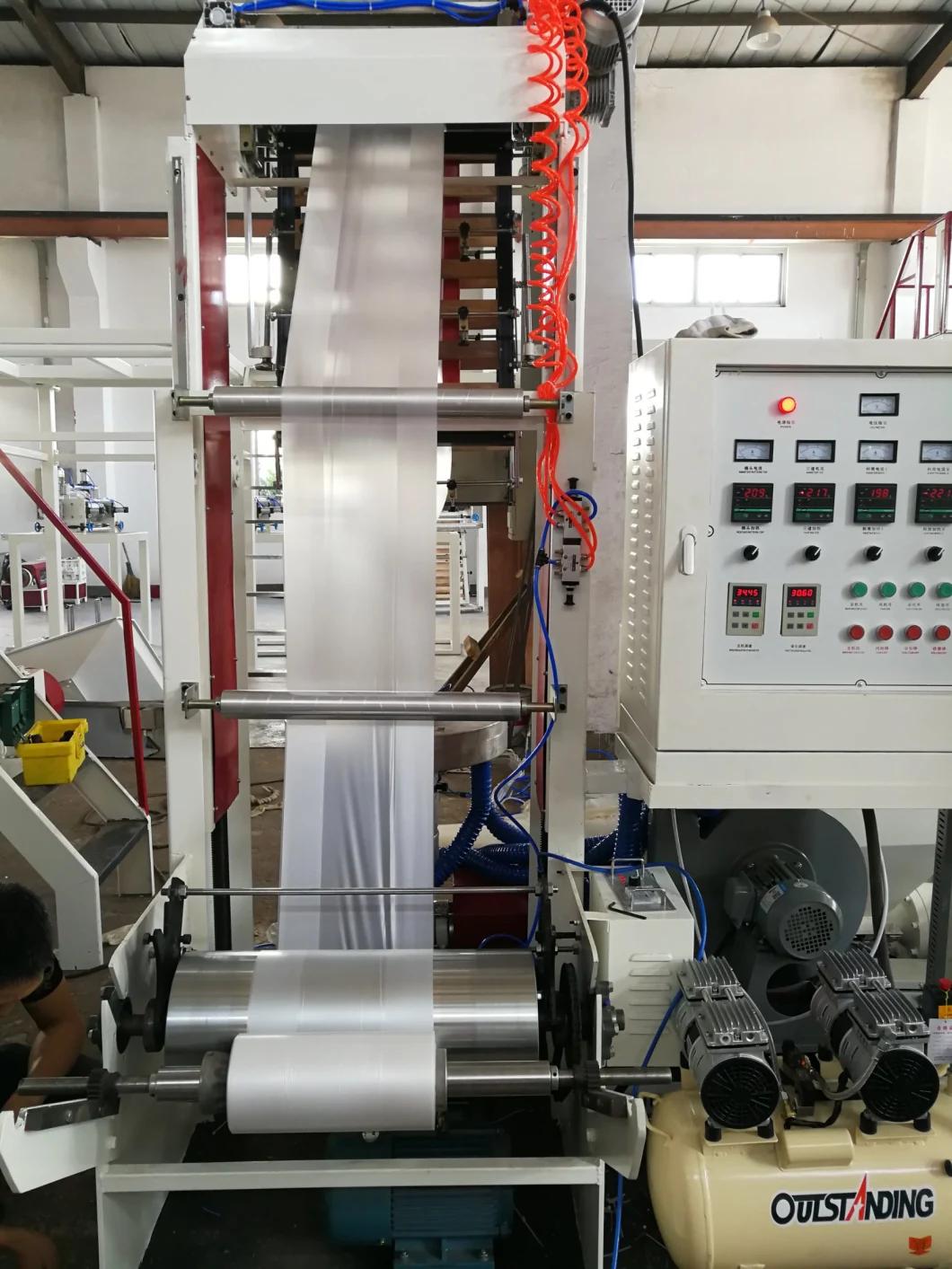

3. Winder Unit
Rewinder Type: Friction Type
Rewinding Station: Single Stations
Rewinding Motor: Torque Motor
Pinch Roller: Steel Roller

E. After service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
All our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We also can offer you our best after service, of course you will afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
