• Model NO.：SJ-45-YT-2600 SJ-55-YT-2800 SJ-60-YT-21000
• Machine Weight：4T
• Certification：CE
• Transport Package：in Standard Wooden Box
• Specification：CE certificate
• Trademark：Elight
• Origin：China(Zhejiang)
• HS Code：8477309000
• Production Capacity：5sets,Month

Basic Info.

Model NO. SJ-45-YT-2600 SJ-55-YT-2800 SJ-60-YT-21000 Machine Weight 4T Certification CE Transport Package in Standard Wooden Box Specification CE certificate Trademark Elight Origin China(Zhejiang) HS Code 8477309000 Production Capacity 5sets/Month

Product Description

It is applied to blowing plastic films like low density polytene(LDPE), high density polytene(HDPE) and linear low density polytene(LLDPE), etc. It is widely applied to packing foodstuff, clothing, rubbish bags, vest ones, etc. In the civil and industries sectors.
The unit integrated film-bolwing & printing designed by us can save labor force, workshop rooms, and improve the quality of products and economic results.

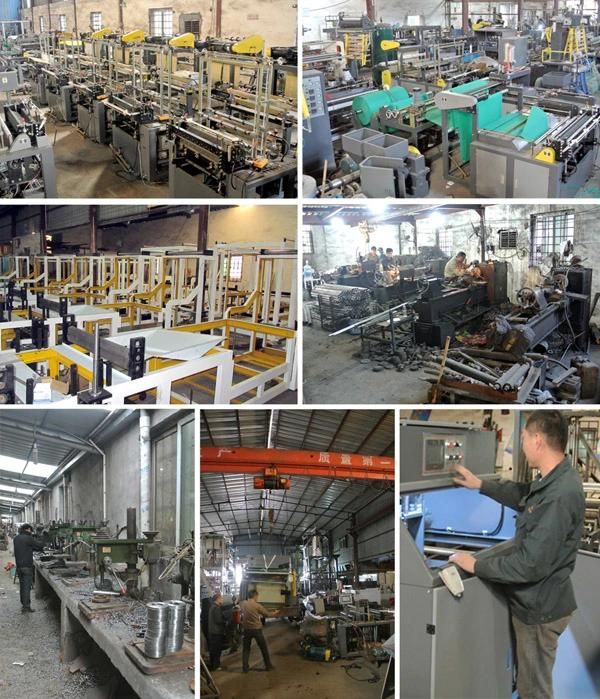

Workshop:

Certificates:

Our office:

Model	SJ-45-YT2600	SJ-55-YT2800	SJ-60-YT21000
Applied Materials	LDPE/HDPE/LLDPE	LDPE/HDPE/LLDPE	LDPE/HDPE/LLDPE
Screw Diameter	45mm	55mm	60mm
Screw L/D  Ratio	L/D28:1	L/D28:1	L/D28:1
Blow Film Motor Power	11Kw	15Kw	18.5Kw
Max Extruded Quantity	36kg/h	50kg/h	70kg/h
Film Head DIA.	Φ60Φ80	Φ80Φ130	Φ80Φ160
Blow Film Width	600mm	800mm	1000mm
Blow Film Thickness	0.008-0.10mm	0.008-0.10mm	0.008-0.10mm
Length Range of Printing	191-1200mm	191-1200mm	191-1200mm
Printing width	560mm	760mm	960mm
Total Power	28KW	32KW	40KW
Weight of Machine	3800kg	4200kg	5000kg
Overall Dimension(L×W×H)	6000×2400×4000mm	6200×2600×4300mm	6400×2800×4800mm
