WPC (PVC+Wood) Door Panel Extrusion Production Line
SKY WIN Technology Co., Ltd.- Product Type：PVC Board
- Screw No.：Double-screw
- Automation：Automatic
- Certification：CE, ISO9001:2008
- Customized：Customized
- Condition：New
Base Info
- Plastic Processed：PVC+Wood+Additives
- Output：300-500 Kg,H
- Screw Dia：92,188
Description
Basic Info.
Plastic Processed PVC+Wood+Additives Output 300-500 Kg/H Screw Dia 92/188Product Description
Application:To Produce WPC (PVC foam ) Unit-board Door of 600-1200mm width, Cabinet Board, etc..

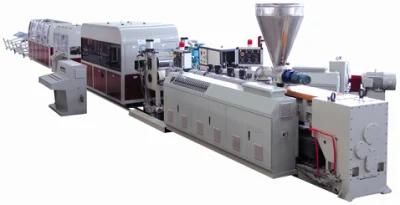

SWMSX-5 (92/188) is composed of conical twin-screw extruder, shaping machine, haul-off machine, cutting machine, stacker, etc.. The main electrical components adopt world famous brands, learned from their foreign counterparts in the design of extrusion system.
Technical Parameters
Equipment Type | Screw Diameter (MM) | Total Power (KW) | Output (KG/H) | Outline Dimension (MM) | Total Weight (KG) |
SWMSY-4 | 80/156 | 129.7 | 250-350 | 21000*1850*2900 | 9400 |
SWMSY-5 | 92/188 | 179.6 | 300-500 | 23000*2200*3100 | 15000 |
