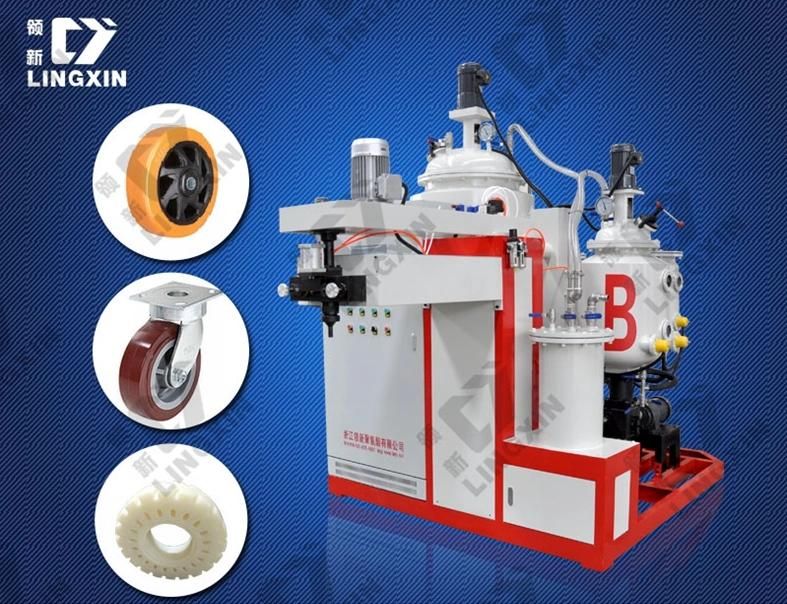

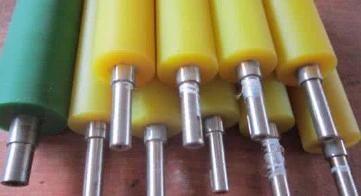

Polyurethane Elastomer Machine for Roller /PU Machine for Roller /PU Elastomer Machine for ...
Zhejiang Lingxin Machinery Co., Ltd.- Type：Polyurethane Elastomer Casting Machine
- Raw Material：Mixing
- Principle：Tdi, Moca, Mdi, Bdo
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：LXCPU-2
- Power：35kw
- Voltage：380V 50,60Hz
- Machine Type：PU Elastomer Casting Machine
- Material：Tdi, Mdi, Bdo, Moca
- Flow Rate：0.1-30kg,Min

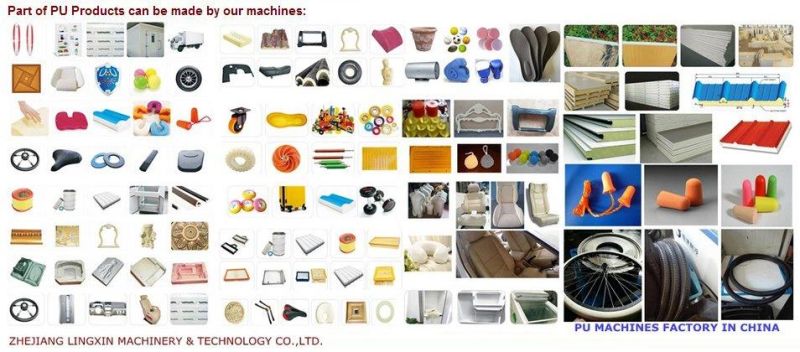

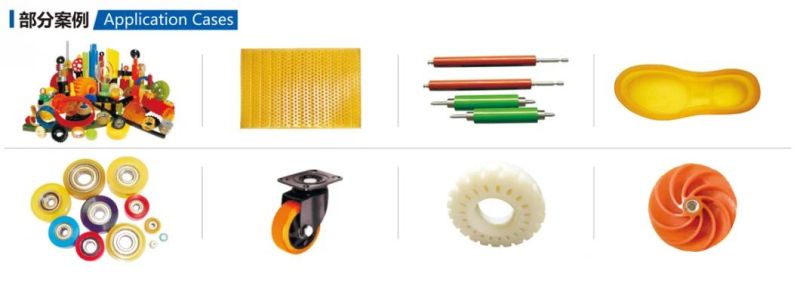

- Application：PU Elastomer Products
- Mixing Ratio：100:6-18 ,100:50-200:6-18
- Transport Package：Plywood Case Packing
- Specification：L2450 X W2200 X H2350mm
- Trademark：Lingxin
- Origin：China
- HS Code：8477409000
- Production Capacity：20 Sets,Month
Description
Voltage
380V 50Hz
Output
100-800 g/min; 1-3.5kg/min;2-5kg/min; 3-8kg/min; 5-15kg/min;12-30kg/min etc
Material tank volume
30L-500L
Power
25-45KW
Injection Pressure
0.01-0.1Mpa
Injection time
0.5~99.99S (correct to 0.01S)
Mixing head
Around 6000rpm, forced dynamic mixing
Compressed air requirement
Dry, oil free P:0.6-0.8MPa
Q:600L/min(Customer-owned)
Vacuum pump
2X-15 Speed of exhaust:15L/S
Input power
Three-phrase five-wire,380V 50HZ
Temperature control system
18~24KW
Color (selectable)
White/Blue/Red
Weight
2000kg

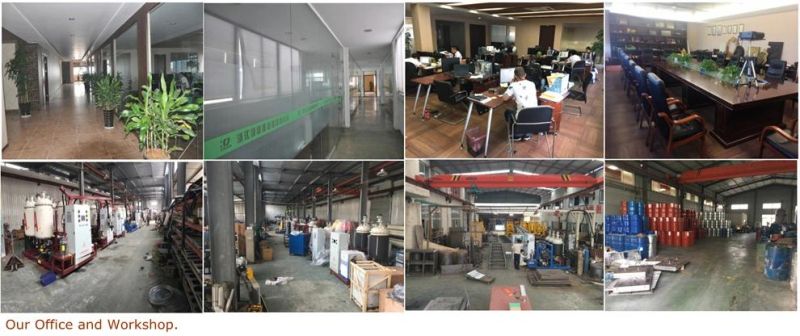

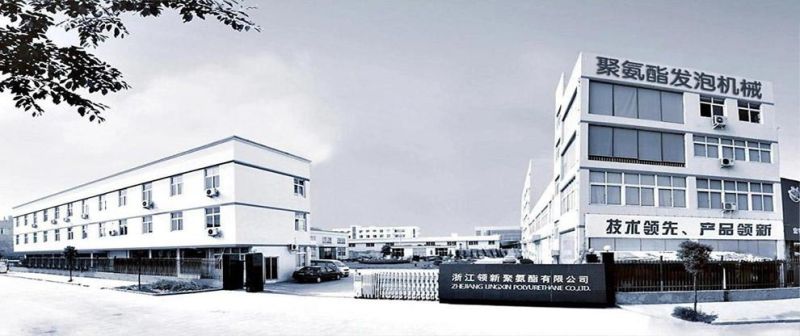

Our company:
Certificate:
Welcome to contact with us /send inquiry for more details of machines. We will reply you ASAP. Thanks.
