• Model NO.：SJ55*2
• Machine Weight：Depend on Machine Size
• Certification：CE
• Film Type：LDPE, HDPE
• Machine Name：Blown Film Extrusion Machine
• Certificate：Ce,SGS
• Ship：by Sea
• Blow Moulding Type：Extrusion Blow Moulding
• Model Number：Sj55*30+Sj55*30-Fms1200(ABA)
• Power(W)：30
• Screw L/D Ratio：30:1
• Transport Package：Film Packing
• Specification：CE, SGS
• Trademark：BINHAI
• Origin：Ruian City, Zhejiang, China
• HS Code：8477309000
• Production Capacity：320 Sets,Year

LDPE Film Blowing Machinehttps://youtu.be/sj0X0LM8Bzc Water melt Film Blowing machinehttps://youtu.be/xMjVDsnikEM3 Meter Single screw Film Blowing machinehttps://youtu.be/i8sF06INOGYABC film blowing machinehttps://youtu.be/gwe-JvruTikFour Lines T shirt bag machine (Cold cutting)https://youtu.be/Kzt0U3c50uQ6 Lines T shirt handle bag machine(cold cut)https://youtu.be/s4fo1tK0BXMTwo Lines t shirt bag machine (Heat cut)https://youtu.be/FeOV_8cuOJ4Bottom Seal Cold Cut Plastic bag making machinehttps://youtu.be/QH_xOBauAMoOPP /PE Side Seal Bag Making Machinehttps://youtu.be/P24YpQ5A0aM8 Colors Flexo Printing Machine https://youtu.be/PgjX400mqP8Double Lines stand Up zipper Pouch machinehttps://youtu.be/cSutIKouXmEThree side seal &Central seal Pouch machinehttps://youtu.be/MFKJyXgnbR8Specially for central seal pouch machinehttps://youtu.be/yjF_TNQ-zXk

plastic pe ABA film blowing machine

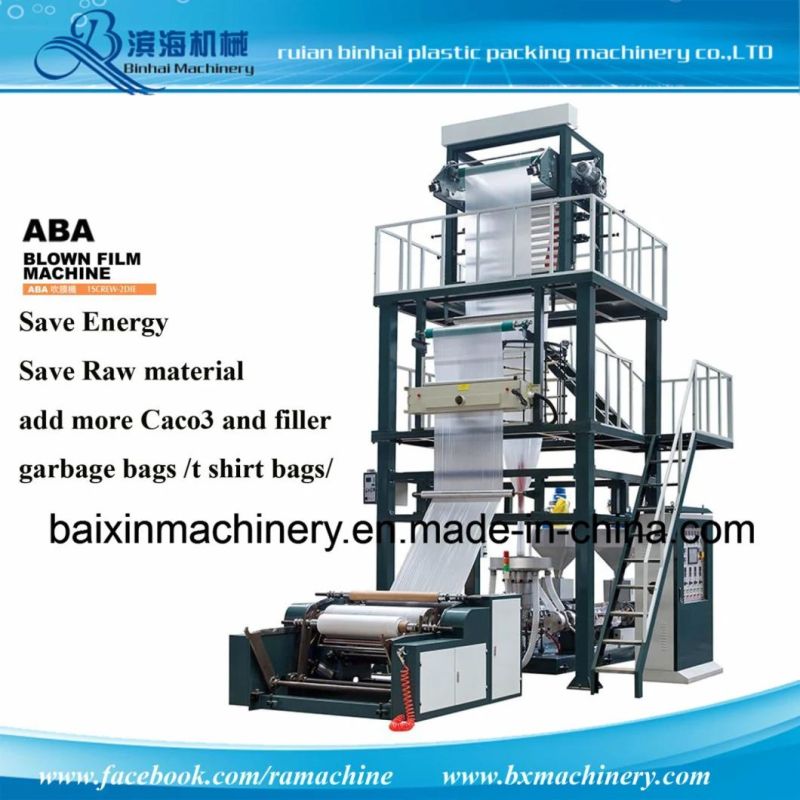

SJ55*30+SJ55*30-FMS1200 ABA three layer co-extrusion high speed film blowing machine







ADVANTAGE OF ABA MODEL

---Produce Both HDPE and LDPE Film
----It improves the physical toughness of film through multi-layer co-extrusion.
----With one main extruder providing material for out and inner layers,
     it reduces one main extruder configuration and achieves energy saving and low consumption.
----ABA Film suitable for producing super market bags, t shirt handle bags, garbage bags, fruit bags and Bio-mulch film
--- Add Caco3 , wasted Film and other filliers to save Raw material.
--- Run 24 hours

----Higher capacity :

Capacity :100-120kgs/H3.3TON /DAY99 TON/MONTHSCREW DIAMETER: 55* 2

Why use Caco3
1 ) Price increasing of new material and Petroleum, it will less cost for us to use Caco3 and recycle film       instead of new material .
2) Our ABA Film machine, A layer for outter two layer film, Film surface will be more smooth and light, better stretch . B layer for caco3 and recycle film or other filler.
3) Film roller from ABA Film blowing machine , better film quality than one layer film machine, less cost raw material than one layer film machine , less machine cost than ABC film machine .

You can get back all machine money from saving raw material in one year .

Main Technical Parameter :


ModeSJ55*2SJ45+SJ55Screw DiameterA 55 /B55A45/ B 55Screw Ratio(L/D)30:128:1 &30:1Heater30 kw20 kwDriving motor powerA18.5/B22 KWA15/B18.5KWTemperature controller11 zone11 zoneTake-up roller width1200mm850mmTake Up Power0.75mm0.75mmTake Up Speed Max.80m/min80m/minDia Diameter120(A+B+A)100(A+B+A)Air blower power4 kw4kwFilm Width400-1000mm200-800mmFilm thickness0.02-0.1mm0.02-0.1mmOutput 100-120kgs/h90kgs/hDimension6*3*6m5*2*5

OPTIONAL EQUIPMENT

1)AUTO LOADER   2)GRAVITY METRIC DEVICE  3)CORONA

4) BOUBLE SIDES WINDER 5)  HIGH SPEED NET CHANGER




ABA Film Blowing Machine use Two screw and One Die ( ABA Head Die)
Up right Picture is Dosing system and Auto loader for optional .
We use 3 motors for each screws .

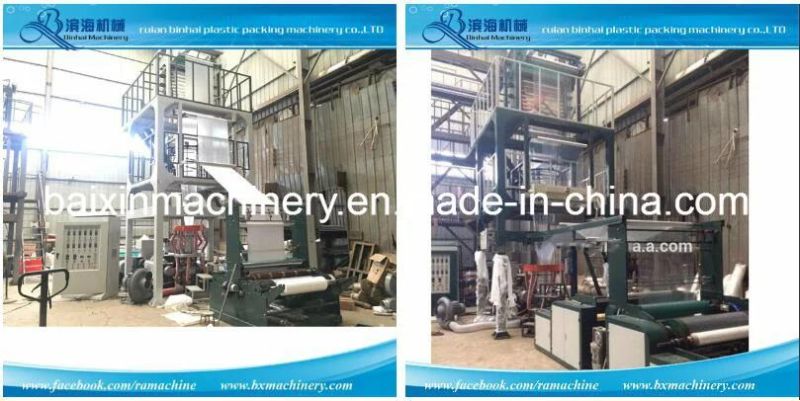

Left Side Picture with Normal Double Rewinder.
Right Picture with Automatic Double rewinder( Automatic cutter and rewinder)










shipping & Package




The End , thanks for your reading .
